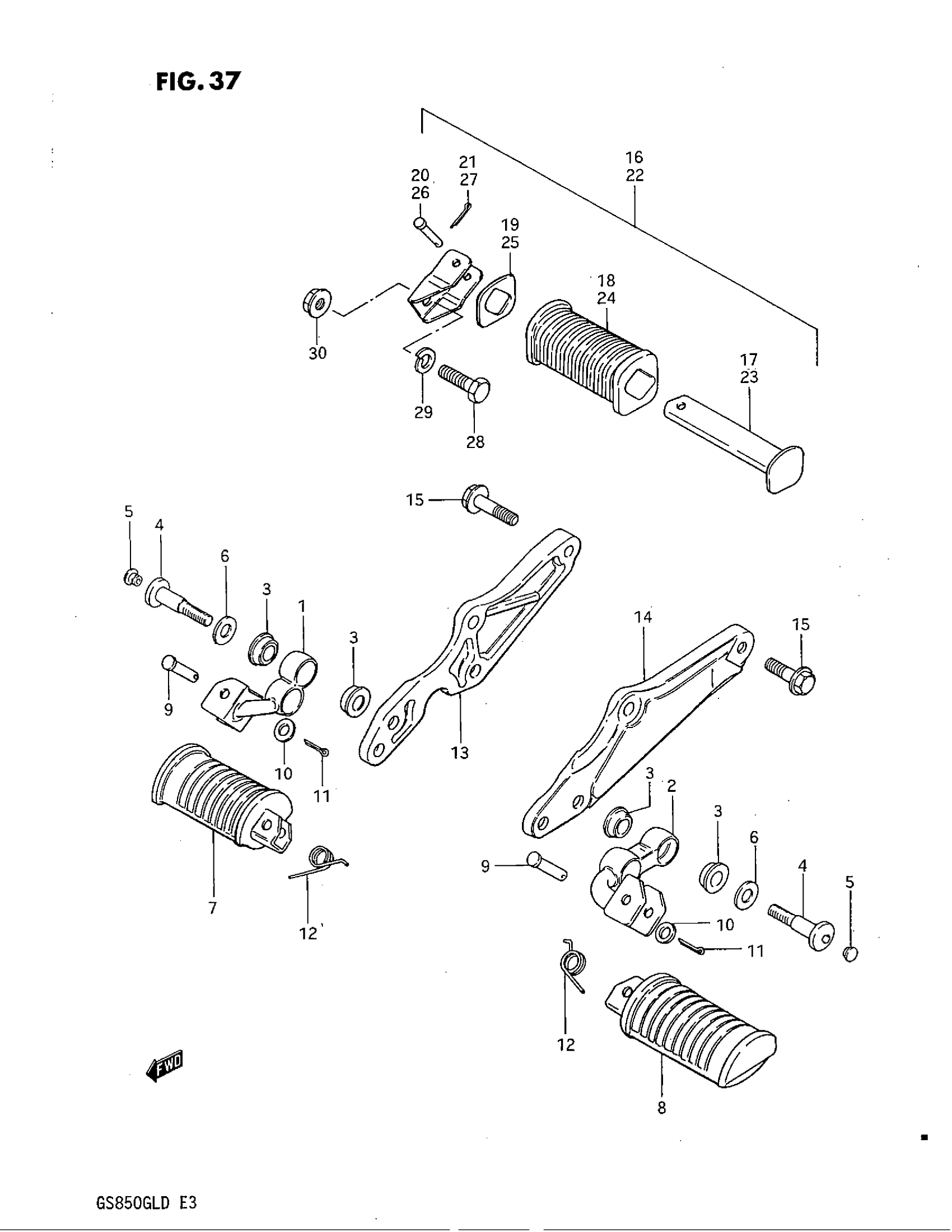

Suzuki GS850GL (1983) FOOTREST Diagram

#

Description
Price

1

BAR, FOOTREST RH

43510-45350

Unavailable

2

BAR, FOOTREST LH

43520-45350

Unavailable

3

CUSHION

09305-14004

Unavailable

4

BOLT

09106-10004

Unavailable

5

CAP

43575-34500

$1.72

6

WASHER

09160-10035

$1.78

7

RUBBER,PILLION This part replaces 43550-49002.

43550-37310

$25.47

8

FOOTREST LH This part replaces 43560-49002.

43560-37310

$32.98

9

PIN

09200-08002

$2.05

10

WASHER This part replaces 08322-11088.

08322-01087

$2.13

11

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49

12

SPRING

09448-14012

$3.04

13

BRACKET, MUFFLER RH

43811-45350

Unavailable

14

BRACKET, MUFFLER LH

43821-45350

Unavailable

15

BOLT (10X20) This part replaces 01527-10258.

01550-1025A

$3.05

16

FOOTREST, PILLION RH | MODEL Z

43600-45350

Unavailable

16

FOOTREST, PILLION LH | MODEL Z; Includes Item(s) 17 - 21

43700-45350

Unavailable

17

BAR, RH | MODEL Z

43610-49201

Unavailable

17

BAR, LH | MODEL Z

43620-49201

Unavailable

18

RUBBER | MODEL Z

43612-49201

Unavailable

19

WASHER | MODEL Z This part replaces 43631-49201.

43631-45001

Unavailable

20

PIN | MODEL Z

09200-06010

$1.72

21

.COTTER PIN | MODEL Z This part replaces 04111-20158.

04111-2015A

$1.49

22

NO DESCRIPTION AVAILABLE | MODEL D This part replaces 43600-49401.

43600-49402

Unavailable

22

NO DESCRIPTION AVAILABLE | MODEL D; Includes Item(s) 23 - 27 This part replaces 43700-49401.

43700-49402

Unavailable

23

NO DESCRIPTION AVAILABLE | MODEL D This part replaces 43610-49400.

43610-49401

Unavailable

23

BAR, PILLION FOOTREST, RH | MODEL D This part replaces 43620-49400.

43620-49401

Unavailable

24

RUBBER, PILLION FOOTREST | MODEL D This part replaces 43612-49401.

43612-49402

Unavailable

25

WASHER | MODEL D This part replaces 43631-49400.

43631-49401

Unavailable

26

PIN | MODEL D

09200-06010

$1.72

27

COTTER PIN | MODEL D This part replaces 04111-20208.

04111-2020A

$1.49

28

BOLT, HANDLE HOLDER This part replaces 01107-10358.

01500-1035B

$3.72

29

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

30

NUT, WHEEL SET This part replaces 08316-16108.

08316-10107

$2.39
