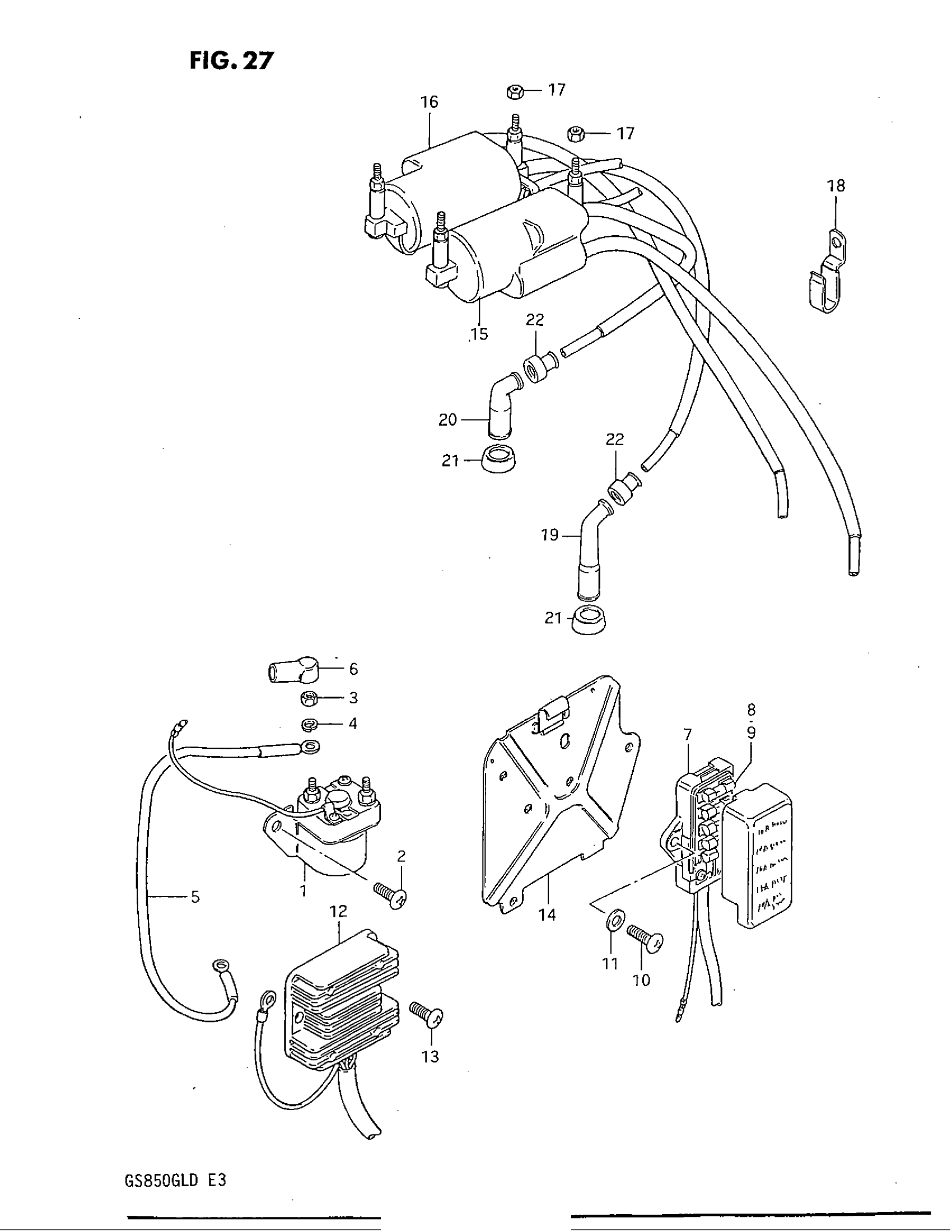

Suzuki GS850GL (1983) ELECTRICAL (MODEL Z) Diagram

#

Description
Price

1

RELAY ASSY,STAR This part replaces 31800-37020.

31800-37021

$71.42

2

SCREW This part replaces 02112-06108.

02112-06107

$1.49

3

.NUT This part replaces 08310-22068.

08310-00067

$2.13

4

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

5

WIRE, STARTING LEAD This part replaces 33850-10300.

33850-00A01

Unavailable

6

CAP, STARTER MOTOR This part replaces 31861-35100.

31861-48B10

$6.55

7

NO DESCRIPTION AVAILABLE | Includes Item(s) 8 - 9 This part replaces 36740-49100.

36740-49X01

Unavailable

8

FUSE (10A)

09481-10001

$1.71

9

FUSE (15A)

09481-15001

$2.06

10

SCREW This part replaces 02112-06128.

02112-06127

$1.84

11

WASHER This part replaces 08322-21068.

08322-01067

$2.13

12

RECTIFIER ASSY This part replaces 32800-49310.

32800-49X50

Unavailable

13

SCREW This part replaces 02112-06128.

02112-06127

$1.84

14

PLATE, PARTS HOLDER

47410-45300

Unavailable

15

COIL ASSY,IGNIT This part replaces 33410-45110.

33410-45112

Unavailable

16

COIL ASSY,IGNIT This part replaces 33420-45110.

33410-45112

Unavailable

17

.NUT This part replaces 08310-11068.

08310-00067

$2.13

18

CLAMP This part replaces 09403-06307.

09403-06329

$2.32

19

CAP, SPARK PLUG (L)

33510-45010

$24.99

20

CAP, SPARK PLUG (S)

33510-43010

$24.99

21

SEAL, SPARK PLUG

33541-69010

$4.37

22

SEAL,HIGH TENSION CORD (SIDE) This part replaces 33542-98000.

33542-38B00

$4.34
