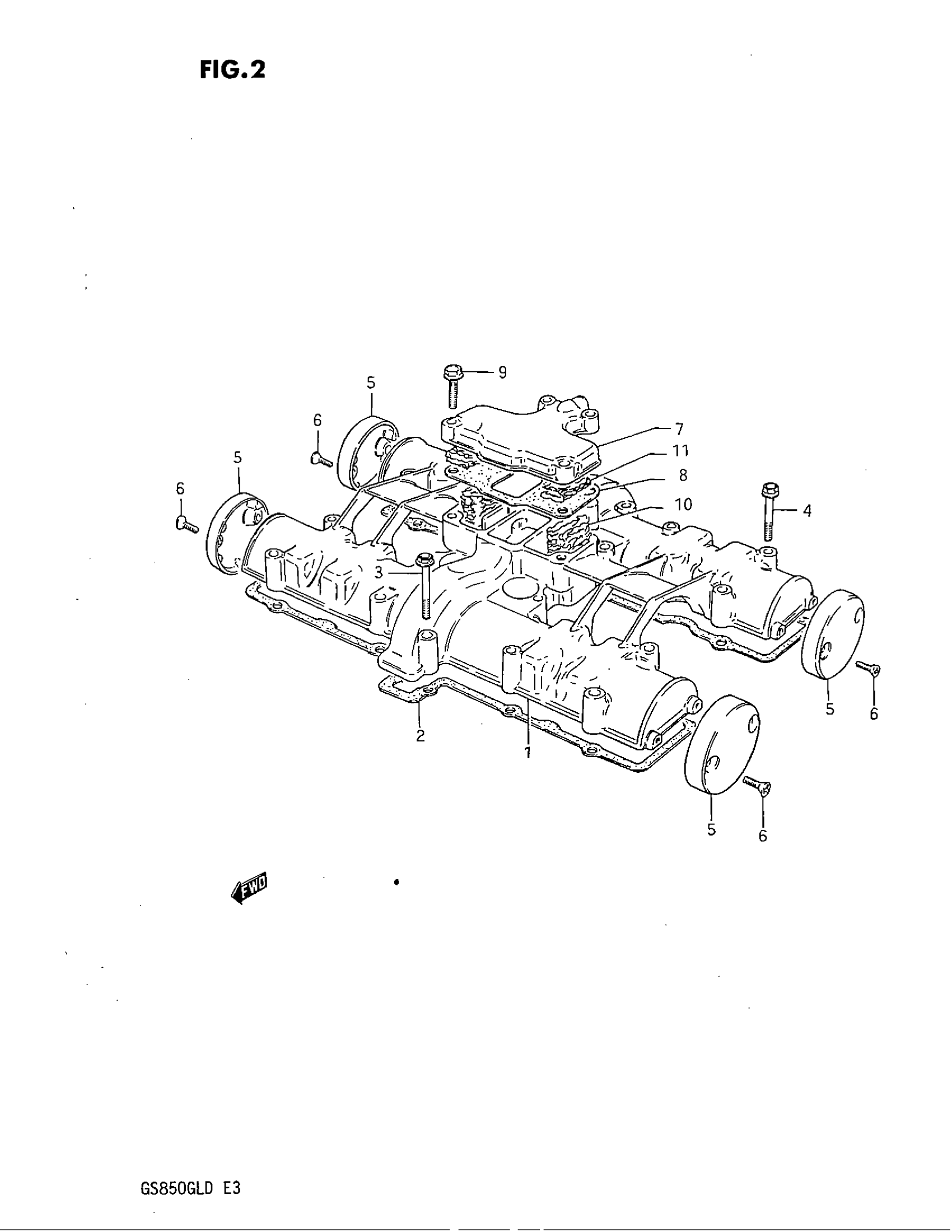

Suzuki GS850GL (1983) CYLINDER HEAD COVER (MODEL Z E.NO.155015- / MODEL D) Diagram

#

Description
Price

1

COVER, CYLINDER HEAD | MODEL Z (E.NO.155015~) This part replaces 11171-45010.

11171-45020

Unavailable

1

COVER, CYLINDER HEAD | MODEL D

11171-45020

Unavailable

2

GASKET,HD CVR ( This part replaces 11173-45010.

11173-45011-H17

Unavailable

2

GASKET,HD CVR ( This part replaces 11173-45011.

11173-45011-H17

Unavailable

3

BOLT | MODEL Z (E.NO.155015~) This part replaces 01517-06408.

01550-06407

$2.69

3

BOLT | MODEL D This part replaces 01517-06405.

01550-0640A

$2.42

4

BOLT (CHROME) | MODEL Z (E.NO.155015~) This part replaces 01517-06458.

01550-06457

$2.69

4

BOLT | MODEL D This part replaces 01517-06455.

01550-0645A

$2.41

5

CAP, SIDE

11174-49000

Unavailable

6

SCREW

09127-05013

$1.49

7

NO DESCRIPTION AVAILABLE | MODEL Z (E.NO.155015~) This part replaces 11176-45001.

11176-45011

Unavailable

7

NO DESCRIPTION AVAILABLE | MODEL D This part replaces 11176-45020.

11176-45011

Unavailable

8

GASKET,BRTHR CV This part replaces 11177-45000.

11177-45000-H17

Unavailable

9

BOLT | MODEL Z (E.NO.155015~) This part replaces 01517-06258.

01550-06257

$2.30

9

BOLT | MODEL D This part replaces 01517-06255.

01550-0625A

$1.97

10

SEPARATOR,OIL B This part replaces 11186-45000.

11186-45001

Unavailable

11

SEPARATOR,OIL B This part replaces 11187-45000.

11187-45001

Unavailable
