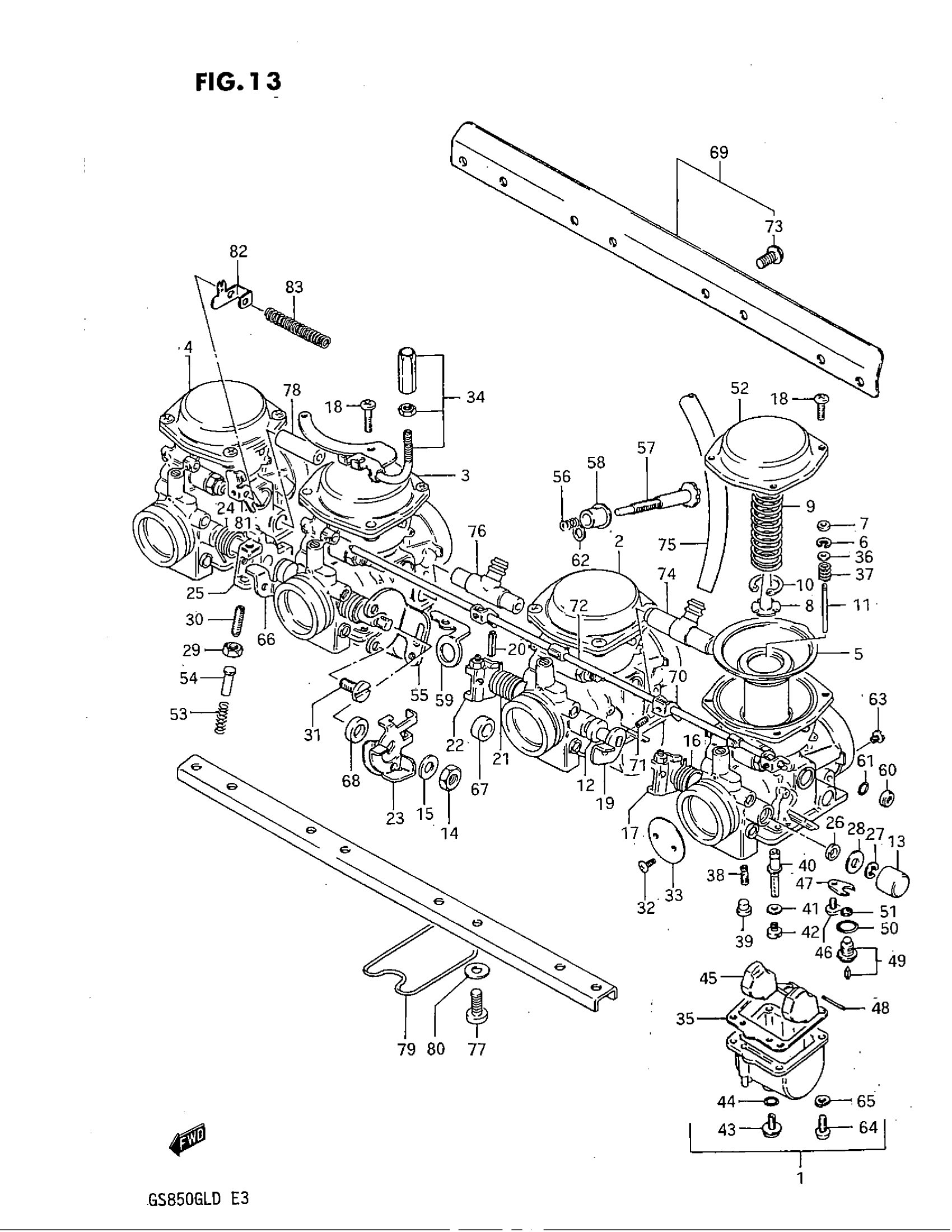

Suzuki GS850GL (1983) CARBURETOR Diagram

#

Description
Price

1

CARBURETOR, NO.1 | LH

13201-45160

Unavailable

2

CARBURETOR, NO.2 | ML

13202-45160

Unavailable

3

CARBURETOR, NO.3 | MR

13203-45160

Unavailable

4

CARBURETOR, NO.4 | RH; Includes Item(s) 5 - 68

13204-45160

Unavailable

5

DIAPHRAGM This part replaces 13500-45110.

13500-45111

Unavailable

6

E RING

13394-31210

$4.64

7

RING

13387-44030

$5.83

8

GUIDE HOLDER

13389-44030

Unavailable

9

SPRING

13503-44080

Unavailable

10

CLIP

13581-44030

$6.78

11

NEEDLE, JET (5D50)

13383-45110

Unavailable

12

GASKET | ML,MR

13557-47070

$3.59

13

CAP | RH,LH

13578-47070

$4.52

14

NUT | MR This part replaces 08310-22088.

08310-00087

$2.13

15

WASHER | MR

13606-47070

Unavailable

16

SPRING | LH

13573-47070

Unavailable

17

SHAFT | LH

13550-47070

Unavailable

18

SCREW This part replaces 02112-05168.

02112-05167

$1.97

19

SHAFT | ML

13550-45110

Unavailable

20

PIN | LH,ML,RH

13563-47070

Unavailable

21

SPRING | ML

13573-45110

Unavailable

22

LEVER | ML

13553-47070

Unavailable

23

LEVER | MR

13555-47070

Unavailable

24

SPRING | MR,RH

13573-47080

Unavailable

25

SHAFT | RH

13550-47090

Unavailable

26

SEAL This part replaces 13556-31210.

13651-51011

$2.20

27

E RING | LH,RH

13617-44080

$2.90

28

GASKET | LH,RH

13557-47070

$3.59

29

NUT | LH,ML,RH

13607-47070

$3.13

30

SCREW | LH,ML,RH

13605-47080

$7.77

31

SCREW, THROTTLE | MR This part replaces 13605-45420.

02112-0510A

$1.49

32

SCREW

13604-44080

$2.92

33

VALVE, THROTTLE (130)

13551-45110

Unavailable

34

BRACKET | MR

13621-45160

Unavailable

35

GASKET,FLOAT CH This part replaces 13251-44080.

13251-44081-H17

$8.68

36

WASHER

13382-44030

$3.71

37

SPRING

13388-44030

$8.12

38

JET, PILOT (40)

09492-40007

Unavailable

39

PLUG

13357-44080

$5.10

40

JET, NEEDLE (X-5)

09494-00263

Unavailable

41

WASHER, NEEDLE JET This part replaces 13332-44080.

13382-03110

$2.80

42

JET, MAIN (115)

09491-23011

$9.63

43

SCREW

13247-44080

$7.97

44

O RING

13246-44080

$2.80

45

FLOAT

13250-44080

$28.49

46

SCREW This part replaces 02112-04068.

02112-0406B

$1.55

47

PLATE

13373-11400

$7.05

48

PIN

13254-92311

$2.07

49

VALVE ASSY, NEEDLE (2.0) This part replaces 13370-11400.

13370-44500

$50.98

50

O RING This part replaces 13374-44080.

13374-35C00

$5.99

51

FILTER This part replaces 13376-65010.

13376-19F00

$10.28

52

COVER

13502-45110

Unavailable

53

SPRING | LH,ML,RH

13268-44010

Unavailable

54

PIN | LH,ML,RH

13575-47070

Unavailable

55

BRACKET | MR

13627-45110

Unavailable

56

SPRING | MR

13271-93011

$5.32

57

ADJUSTER | MR

13267-47070

Unavailable

58

BUSH | MR

13276-31210

Unavailable

59

BRACKET | MR

13627-44090

Unavailable

60

.CAP, STARTER VALVE

13682-31210

$4.37

61

.O RING (16) This part replaces 13278-47090.

13278-47091

$1.90

62

WASHER

13432-47090

$2.28

63

JET, PILOT AIR (180)

09493-36002

Unavailable

64

SCREW This part replaces 02112-05168.

02112-05167

$1.97

65

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

66

SHAFT | MR

13550-45120

Unavailable

67

RING | ML

13574-45110

Unavailable

68

RING | MR

13574-45120

Unavailable

69

FLANGE ASSY | Includes Item(s) 70 - 83

13210-45160

Unavailable

70

LEVER

13422-44080

Unavailable

71

SCREW

13605-47070

Unavailable

72

SHAFT

13410-45110

Unavailable

73

SCREW This part replaces 02142-05128.

02142-05127

$1.97

74

NIPPLE

13685-47070

$28.65

75

HOSE(6.5X11.5X6 This part replaces 13683-49160.

09355-65001-600

$12.00

76

NIPPLE

13685-45110

Unavailable

77

SCREW This part replaces 02112-06128.

02112-06127

$1.84

78

NIPPLE

13685-47090

Unavailable

79

CLIP

13619-45110

Unavailable

80

WASHER

13615-49200

Unavailable

81

LEVER

13413-49220

Unavailable

82

LEVER

13421-49220

Unavailable

83

SPRING

13437-49220

Unavailable
