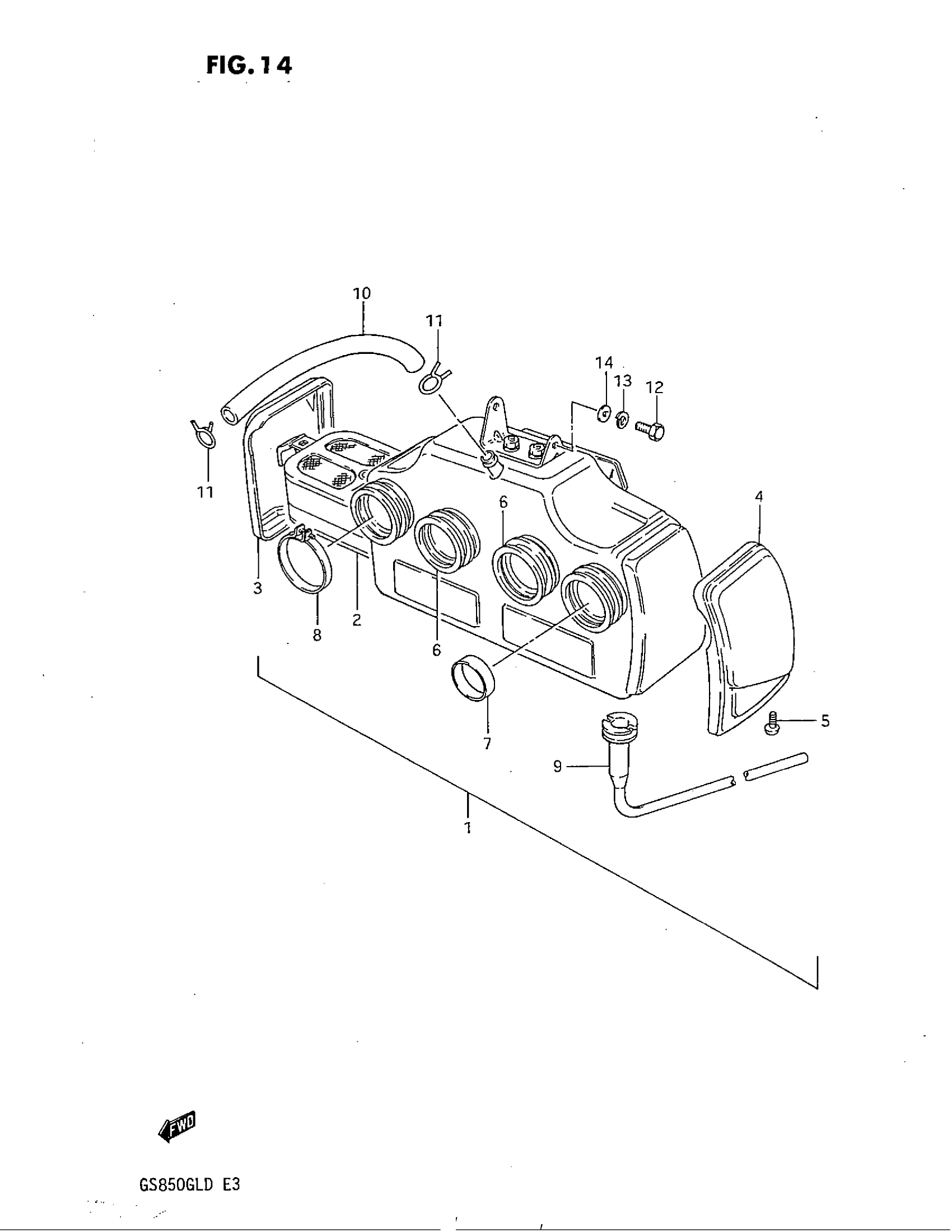

Suzuki GS850GL (1983) AIR CLEANER Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 11 This part replaces 13700-49070.

13700-49072

Unavailable

2

FILTER

13780-49070

Unavailable

3

CAP, LH This part replaces 13740-49070.

13740-45100

Unavailable

4

CAP, RH This part replaces 13750-49070.

13750-45100

Unavailable

5

SCREW This part replaces 02142-05128.

02142-05127

$1.97

6

HOSE

13881-49070

Unavailable

7

RING

13885-45450

Unavailable

8

..CLAMP This part replaces 09402-60206.

09402-60208

$5.11

9

TUBE,DRAIN | MODEL Z This part replaces 13870-00130.

13870-11459

$15.51

9

TUBE,DRAIN | MODEL D This part replaces 13870-45120.

13870-11459

$15.51

10

HOSE This part replaces 13851-00250.

09352-11154-600

$13.05

11

CLIP

09401-14301

$2.35

12

BOLT This part replaces 01107-06128.

01500-06127

$1.97

13

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

14

.WASHER This part replaces 08322-11068.

08322-0106B

$2.26
