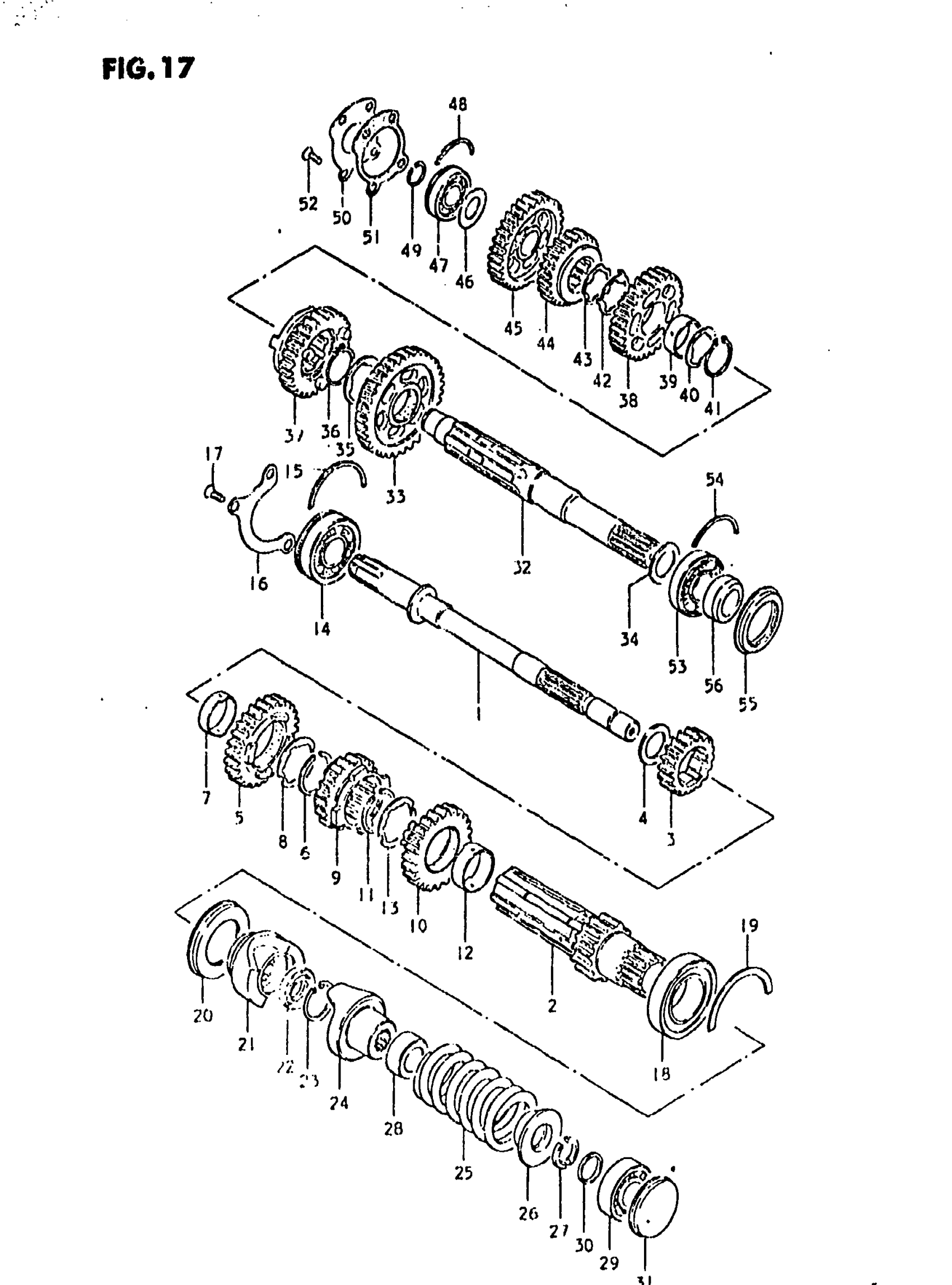

Suzuki GS850GL (1981) TRANSMISSION Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 24121-45102.

24121-45103

Unavailable

2

COUNTERSHAFT, OUTER | NT:14

24141-45102

Unavailable

3

GEAR, 2ND DRIVE (NT:18) | MODEL T This part replaces 24221-45101.

24221-45102

Unavailable

3

GEAR, 2ND DRIVE (NT:18) | MODEL X

24221-45110

Unavailable

4

WASHER

09160-21010

Unavailable

5

GEAR, 5TH DRIVE (NT:26)

24250-45102

Unavailable

6

RING

09380-32002

Unavailable

7

SPACER

24242-45100

Unavailable

8

LOCK WASHER

24243-45101

Unavailable

9

NO DESCRIPTION AVAILABLE This part replaces 24231-45103.

24231-45104

Unavailable

10

GEAR, 4TH DRIVE (NT:24)

24240-45100

Unavailable

11

RING

09380-32002

Unavailable

12

SPACER

24242-45100

Unavailable

13

LOCK WASHER

24243-45101

Unavailable

14

BEARING, LH This part replaces 09262-25051.

09262-25105

$68.10

15

C RING This part replaces 09390-62006.

09390-62012

$7.31

16

HOLDER, BEARING

24741-45000

Unavailable

17

SCREW This part replaces 02122-06168.

02122-06167

$1.49

18

BEARING, MIDDLE

09262-32003

Unavailable

19

C RING

09390-52004

Unavailable

20

OIL SEAL

09283-40005

Unavailable

21

DOG, OUT PUT CAM

22521-45101

Unavailable

22

OIL SEAL

09283-20032

Unavailable

23

CIRCLIP This part replaces 08331-21329.

08331-41329

$2.42

24

DOG, INPUT CAM

22511-45102

Unavailable

25

SPRING

09440-35002

Unavailable

26

SLIDING STOPPER This part replaces 22531-45100.

22531-45101

Unavailable

27

STOPPER

22541-45100

Unavailable

28

GUIDE, SPRING

22551-45101

Unavailable

29

BEARING, DRIVE SHAFT RH This part replaces 09262-17008.

09262-17023

$16.75

30

SPACER

09180-17052

Unavailable

31

PLUG

09241-40003

Unavailable

32

NO DESCRIPTION AVAILABLE This part replaces 24131-45103.

24131-45104

Unavailable

33

GEAR, 1ST DRIVEN (NT:35)

24310-45100

Unavailable

34

WASHER, LH

08211-25383

Unavailable

35

WASHER, RH (T:1)

09167-28001

$4.60

36

CIRCLIP This part replaces 08331-11289.

08331-31289

$2.19

37

GEAR, 4TH DRIVEN (NT:27)

24341-45100

Unavailable

38

GEAR 3RD DRIVEN This part replaces 24331-45100.

24331-49202

Unavailable

39

BUSHING

24332-49000

$17.68

40

WASHER (T:1)

09167-28001

$4.60

41

CIRCLIP This part replaces 08331-11289.

08331-31289

$2.19

42

LOCK WASHER, RH (T:1)

09169-28001

$3.85

43

WASHER, RH (T:1.5)

09167-28002

$4.77

44

GEAR, 5TH DRIVEN (NT:25) | MODEL T This part replaces 24351-45102.

24351-45104

Unavailable

44

GEAR, 5TH DRIVEN (NT:25) | MODEL T This part replaces 24351-45103.

24351-45104

Unavailable

44

GEAR, 5TH DRIVEN (NT:25) | MODEL T, WITH 24320-45101

24351-45104

Unavailable

44

GEAR, 5TH DRIVEN (NT:24) | MODEL X

24351-45110

Unavailable

45

GEAR, 2ND DRIVEN (NT:32) | MODEL T This part replaces 24320-45100.

24320-45102

Unavailable

45

GEAR, 2ND DRIVEN (NT:32) | MODEL T, WITH 24351-45103 This part replaces 24320-45101.

24320-45102

Unavailable

45

GEAR, 2ND DRIVEN (NT:32) | MODEL T, WITH 24351-45104

24320-45102

Unavailable

45

GEAR, 2ND DRIVEN (NT:31) | MODEL X

24320-45110

Unavailable

46

WASHER

08211-20341

$2.80

47

BEARING, RH

09262-20049

Unavailable

48

C RING

09390-47003

Unavailable

49

CIRCLIP

09380-20007

$2.43

50

PLATE, DRIVESHAFT

24761-45100

Unavailable

51

GASKET,DR SHFT This part replaces 24762-45000.

24762-45000-H17

$2.77

52

SCREW This part replaces 02122-06168.

02122-06167

$1.49

53

BEARING This part replaces 09262-25055.

09262-25030

$47.97

54

C RING

09390-52002

Unavailable

55

OIL SEAL

09283-35015

$19.38

56

SPACER

24136-45100

Unavailable
