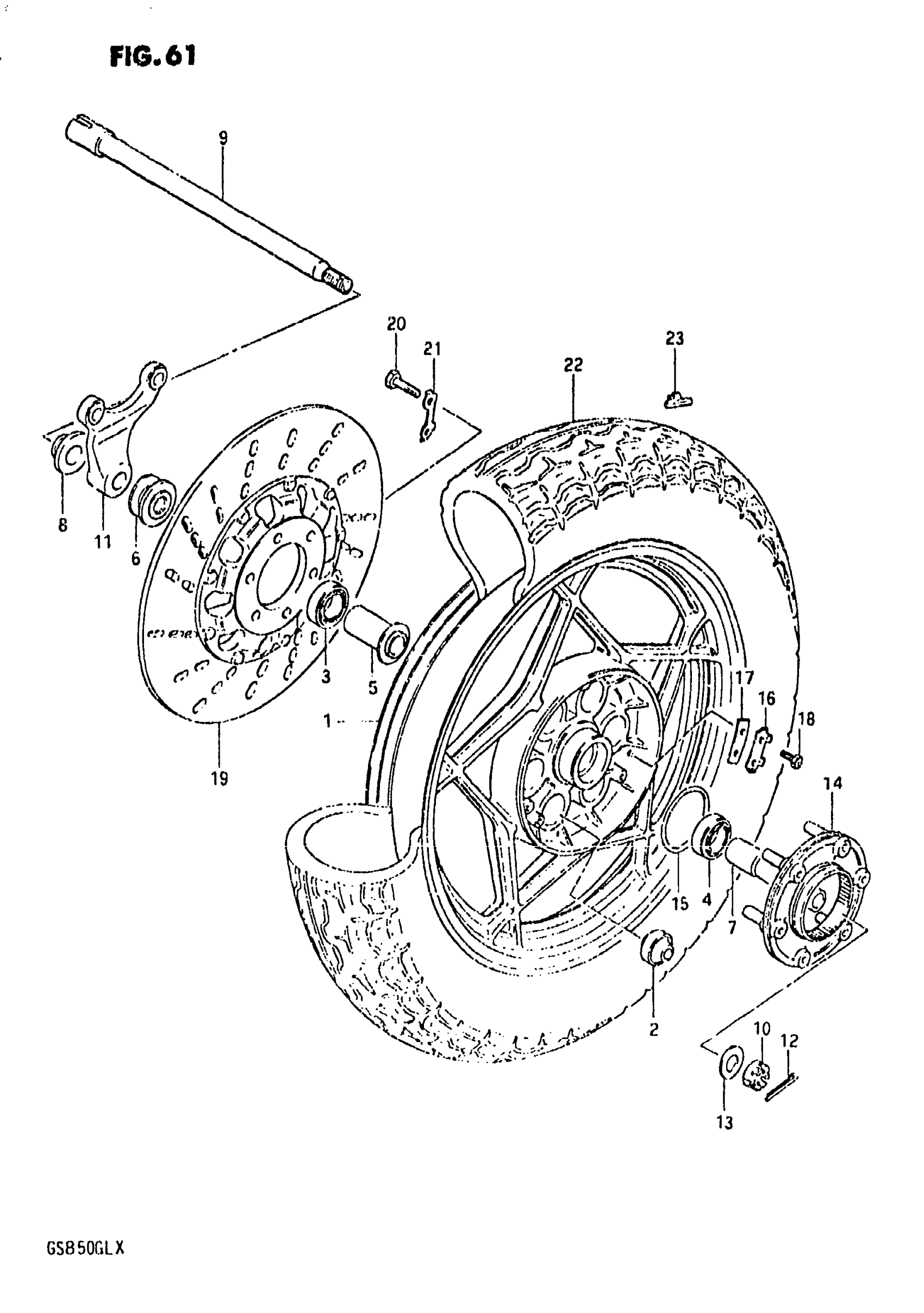

Suzuki GS850GL (1981) REAR WHEEL (MODEL X) Diagram

#

Description
Price

1

WHEEL, SET REAR (16x2.75) | Includes Item(s) 2 This part replaces 64100-34810.

64100-34811

Unavailable

2

BUSHING

09319-12019

$13.11

3

BEARING This part replaces 08123-63037.

08123-6303B

$15.56

4

BEARING, LH

08143-63037

$22.58

5

SPACER, BEARING

64730-34200

Unavailable

6

NO DESCRIPTION AVAILABLE This part replaces 64740-47001.

64740-47002

Unavailable

7

SPACER, LH (L:85)

64772-45101

Unavailable

8

NO DESCRIPTION AVAILABLE This part replaces 64741-34300.

64741-34301

Unavailable

9

AXLE, REAR

64711-45300

Unavailable

10

NUT

09141-16001

Unavailable

11

BRACKET, REAR CALIPERS

69721-47001

Unavailable

12

PIN, REAR AXLE This part replaces 04111-40308.

04111-4030A

$1.49

13

WASHER (17.5x36x3.2)

09160-17018

Unavailable

14

JOINT, HUB DRIVEN This part replaces 64680-45112.

64680-45113

$275.40

15

O RING

09280-65003

$3.72

16

WASHER This part replaces 64676-45113.

09169-06030

$3.15

17

THRUST WASHER (T:1.6)

64677-45110

$2.92

18

SCREW This part replaces 09128-06005.

02162-0616B

$2.03

19

DISK, REAR BRAKE

69211-34250

Unavailable

20

BOLT

09100-08140

$2.10

21

WASHER This part replaces 09169-08027.

09169-08030-XC0

Unavailable

22

TIRE, REAR (130/90-16) | BS

65100-45330

Unavailable

22

TIRE, REAR (130/90/16) | DUNLOP

65100-45350

Unavailable

23

BALANCER, WHEEL NO.2 | (0~3) This part replaces 55411-45100.

55412-17G00

$7.05

23

BALANCER (30G) | (0~3)

55412-45100

Unavailable
