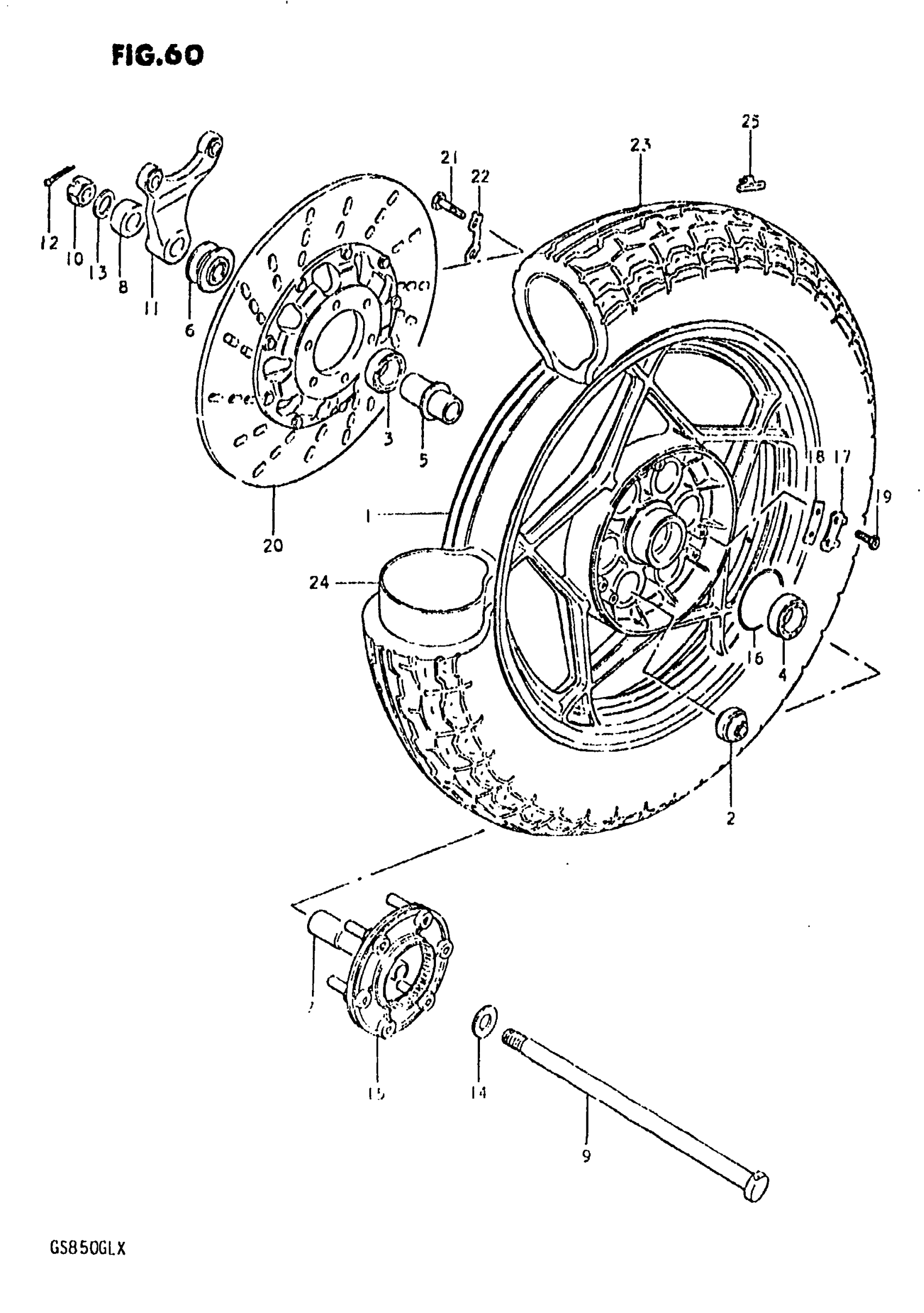

Suzuki GS850GL (1981) REAR WHEEL (MODEL T) Diagram

#

Description
Price

1

WHEEL, REAR | FROM 64100-45811; Includes Item(s) 2

64100-45810-12U

Unavailable

2

BUSHING (12X41X34) | TO 09319-12019 This part replaces 09319-12021.

09319-12019

$13.11

3

BEARING This part replaces 08123-63037.

08123-6303B

$15.56

4

BEARING, LH

08143-63037

$22.58

5

SPACER, BEARING (L:73)

64730-45100

Unavailable

6

NO DESCRIPTION AVAILABLE This part replaces 64740-47001.

64740-47002

Unavailable

7

SPACER, LH (L:85) This part replaces 64772-45100.

64772-45101

Unavailable

8

SPACER, RH (17x33x15.2)

09180-17053

Unavailable

9

AXLE, REAR

64711-45100

Unavailable

10

NUT

09141-16001

Unavailable

11

BRACKET, REAR CALLPERS

69721-47001

Unavailable

12

PIN, REAR AXLE This part replaces 04111-40308.

04111-4030A

$1.49

13

WASHER This part replaces 08322-11168.

08322-01167

$2.10

14

WASHER, LH (17.5X36X3.2)

09160-17018

Unavailable

15

JOINT, HUB DRIVEN This part replaces 64680-45112.

64680-45113

$275.40

16

O RING

09280-65003

$3.72

17

WASHER This part replaces 64676-45112.

09169-06030

$3.15

17

WASHER | WITH 64677-45110 This part replaces 64676-45113.

09169-06030

$3.15

18

THRUST WASHER (T:1.6) | WITH 64676-45113

64677-45110

$2.92

19

SCREW This part replaces 09128-06005.

02162-0616B

$2.03

20

DISK, REAR BRAKE

59210-18450

Unavailable

21

BOLT

09100-08094

$2.71

22

WASHER

09169-08016

$2.41

23

TIRE, REAR (4.50H-17) | DUNLOP

65100-45156

Unavailable

24

TUBE, INNER

65200-49010

Unavailable

25

BALANCER, WHEEL NO.2 | (0~3) This part replaces 55411-45100.

55412-17G00

$7.05

25

BALANCER (30G) | (0~3)

55412-45100

Unavailable
