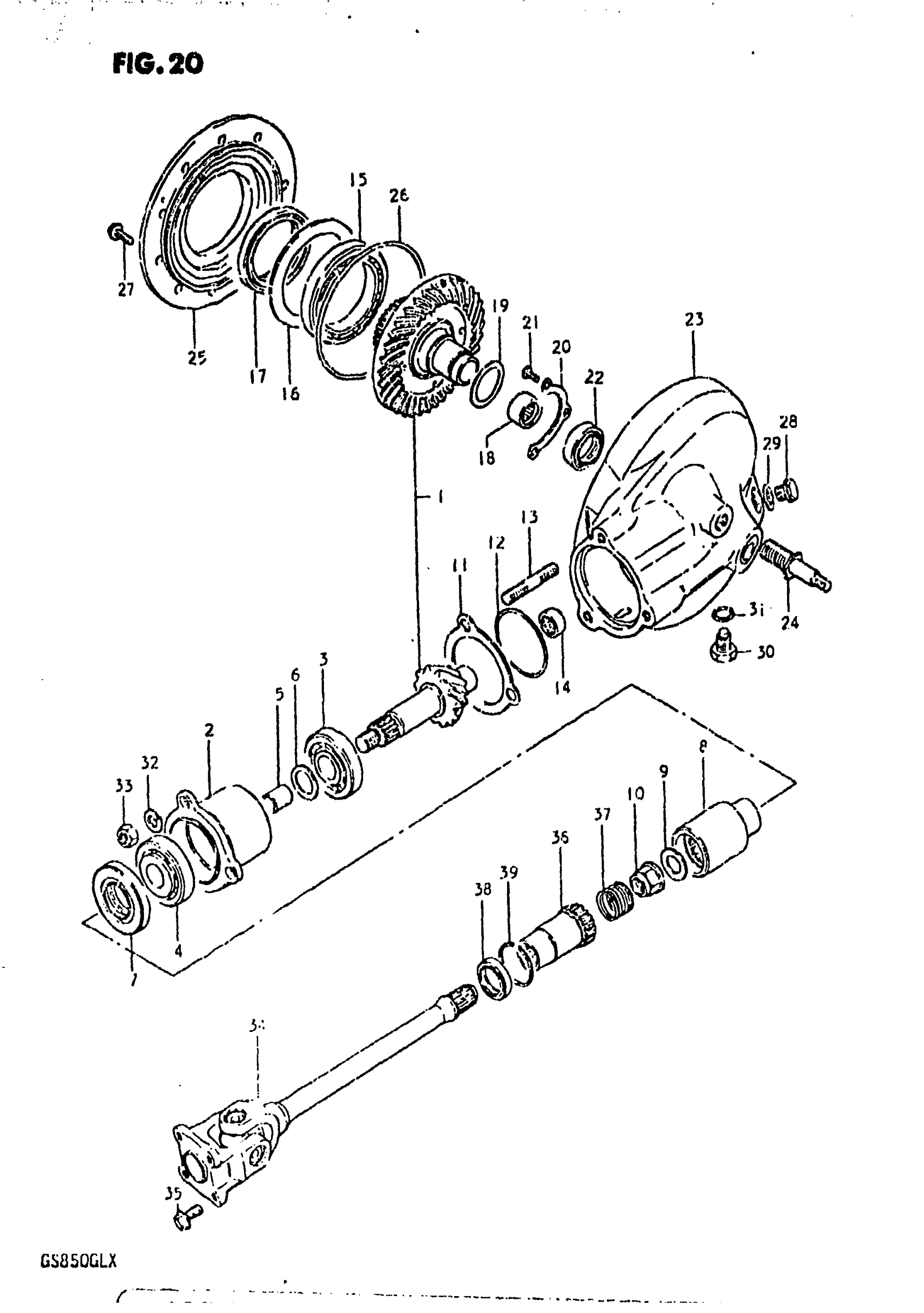

Suzuki GS850GL (1981) PROPELLER SHAFT - FINAL DRIVE GEAR Diagram

#

Description
Price

0

NO DESCRIPTION AVAILABLE | MODEL T This part replaces 27300-45820.

27300-45822

Unavailable

0

NO DESCRIPTION AVAILABLE | MODEL X; Includes Item(s) 1 - 31 This part replaces 27300-45821.

27300-45822

Unavailable

1

FINAL GEAR SET (NT:11/34) | MODEL T This part replaces 27300-45810.

27300-45811

Unavailable

1

FINAL GEAR SET (NT:11/34) | MODEL X

27300-45811

Unavailable

2

HOUSING, DRIVE BEVEL GEAR

27441-45100

Unavailable

3

BEARING, REAR

09265-25013

$63.43

4

BEARING, REAR This part replaces 09265-25014.

09265-25024

$60.80

5

SPACER

09180-25057

Unavailable

6

SHIM (T:1.60) | (0~3)

09181-25006

Unavailable

6

SHIM (T:1.62) | (0~3)

09181-25007

Unavailable

6

SHIM (T:1.64) | (0~3)

09181-25008

Unavailable

6

SHIM (T:1.66) | (0~3)

09181-25009

Unavailable

6

SHIM (T:1.68) | (0~3)

09181-25010

Unavailable

6

SHIM (T:1.70) | (0~3)

09181-25011

Unavailable

6

SHIM (T:1.80) | (0~3)

09181-25012

Unavailable

6

SHIM (T:1.90) | (0~3)

09181-25013

Unavailable

6

SHIM (T:2.00) | (0~3)

09181-25014

Unavailable

7

OIL SEAL

09283-32017

Unavailable

8

COUPLING, FINAL DRIVE GEAR

27172-45100

Unavailable

9

WASHER

09160-14021

$6.63

10

NUT

09159-14010

$14.12

11

SHIM (T:0.15) | (0~2)

27445-45100

Unavailable

11

SHIM (T:0.30) | (0~2)

27445-45102

Unavailable

11

SHIM (T:0.35) | (0~2)

27445-45101

Unavailable

11

SHIM (T:0.40) | (0~2)

27445-45103

Unavailable

12

O RING

09280-63004

$4.75

13

STUD BOLT (L:30) This part replaces 01421-10308.

01421-1030A

$2.57

14

BEARING

09263-24012

$44.63

15

BEARING, RH

09262-70001

$140.93

16

SHIM (T:0.35) | (0~2)

27327-45100

Unavailable

16

SHIM (T:0.40) | (0~2)

27327-45102

Unavailable

16

SHIM (T:0.50) | (0~2)

27327-45103

Unavailable

16

SHIM (T:0.60) | (0~2)

27327-45104

Unavailable

17

OIL SEAL

09289-70001

$51.76

18

BEARING, LH

09263-35004

$73.18

19

SHIM (T:1.35) | (0~1)

27326-45104

Unavailable

19

SHIM (T:1.25) | (0~2)

27326-45100

Unavailable

19

SHIM (T:1.20) | (0~2)

27326-45101

Unavailable

19

SHIM (T:1.10) | (0~2)

27326-45103

Unavailable

19

SHIM (T:1.05) | (0~2)

27326-45102

Unavailable

20

HOLDER, BEARING

27329-45100

Unavailable

21

SCREW This part replaces 02112-06128.

02112-06127

$1.84

22

OIL SEAL

09283-30028

$9.60

23

CASE, FINAL GEAR

27450-45102

Unavailable

24

STUD BOLT

09108-10025

Unavailable

25

NO DESCRIPTION AVAILABLE This part replaces 27460-45101.

27460-45103

Unavailable

26

O RING

09280-00014

Unavailable

27

BOLT This part replaces 01517-08258.

01550-08257

$2.81

28

PLUG This part replaces 09247-14012.

09247-14026

$3.76

29

GASKET

09168-14004

$1.83

30

PLUG, OIL DRAIN This part replaces 09247-14014.

09247-14036

$6.17

31

GASKET

09168-14004

$1.83

32

LOCK WASHER This part replaces 08321-31108.

08321-01107

$1.84

33

NUT

09159-10027

$3.10

34

NO DESCRIPTION AVAILABLE | MODEL T This part replaces 27100-45101.

27100-45102

Unavailable

34

SHAFT, PROPELLER | MODEL X

27100-49110

Unavailable

35

NO DESCRIPTION AVAILABLE | MODEL T This part replaces 09103-08031.

09103-08348

Unavailable

35

BOLT | MODEL X

09103-08050

Unavailable

36

COUPLING, PROPELLER SHAFT

27171-45101

Unavailable

37

SPRING

09440-27005

Unavailable

38

OIL SEAL

09283-30025

Unavailable

39

CIRCLIP

09381-40003

$4.64
