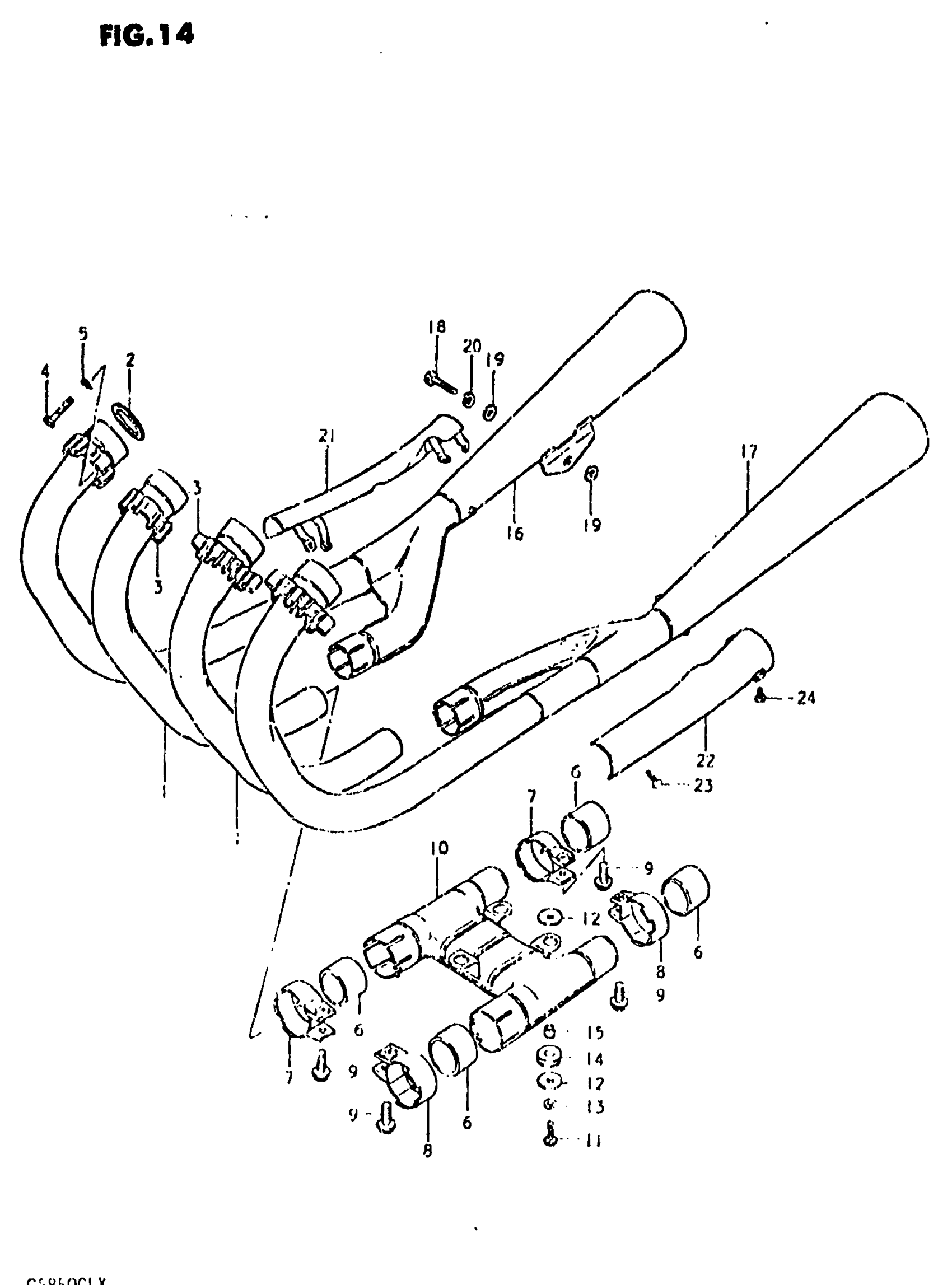

Suzuki GS850GL (1981) MUFFLER (MODEL T) Diagram

#

Description
Price

1

PIPE, EXHAUST CENTER This part replaces 14170-45200.

14170-45201

Unavailable

2

GASKET, EXHAUST PIPE This part replaces 14181-11010.

14181-01D00

$7.11

3

CLAMP

14182-44000

Unavailable

4

BOLT This part replaces 01107-08358.

01500-0835B

$3.04

5

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

6

CONNECTOR,MUFFL This part replaces 14771-44011.

14771-44030

Unavailable

7

CLAMP, CONNECTOR RH

14459-44000

Unavailable

8

CLAMP, CONNECTOR LH

14459-44000

Unavailable

9

BOLT This part replaces 01517-08258.

01550-08257

$2.81

10

PRE-MUFFLER

14210-45201

Unavailable

11

BOLT, REAR This part replaces 01304-06308.

01500-06307

$2.48

13

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

12

WASHER (8.5X26X1.6) This part replaces 09160-08004.

09160-08134

$2.03

14

CUSHION

09320-10014

$2.92

15

SPACER

09180-06082

$2.18

16

NO DESCRIPTION AVAILABLE This part replaces 14310-45310.

14305-45310-H01

Unavailable

17

NO DESCRIPTION AVAILABLE This part replaces 14340-45310.

14306-45310-H01

Unavailable

18

BOLT This part replaces 01107-10308.

01500-1030A

$3.16

19

WASHER This part replaces 08322-21108.

08322-01107

$2.15

20

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

21

COVER, MUFFLER RH This part replaces 14780-45201.

14780-45202

Unavailable

22

COVER, MUFFLER LH This part replaces 14790-45200.

14790-45201

Unavailable

23

SCREW This part replaces 02112-05168.

02112-05167

$1.97

24

SCREW This part replaces 02112-05068.

09125-05122

$2.06
