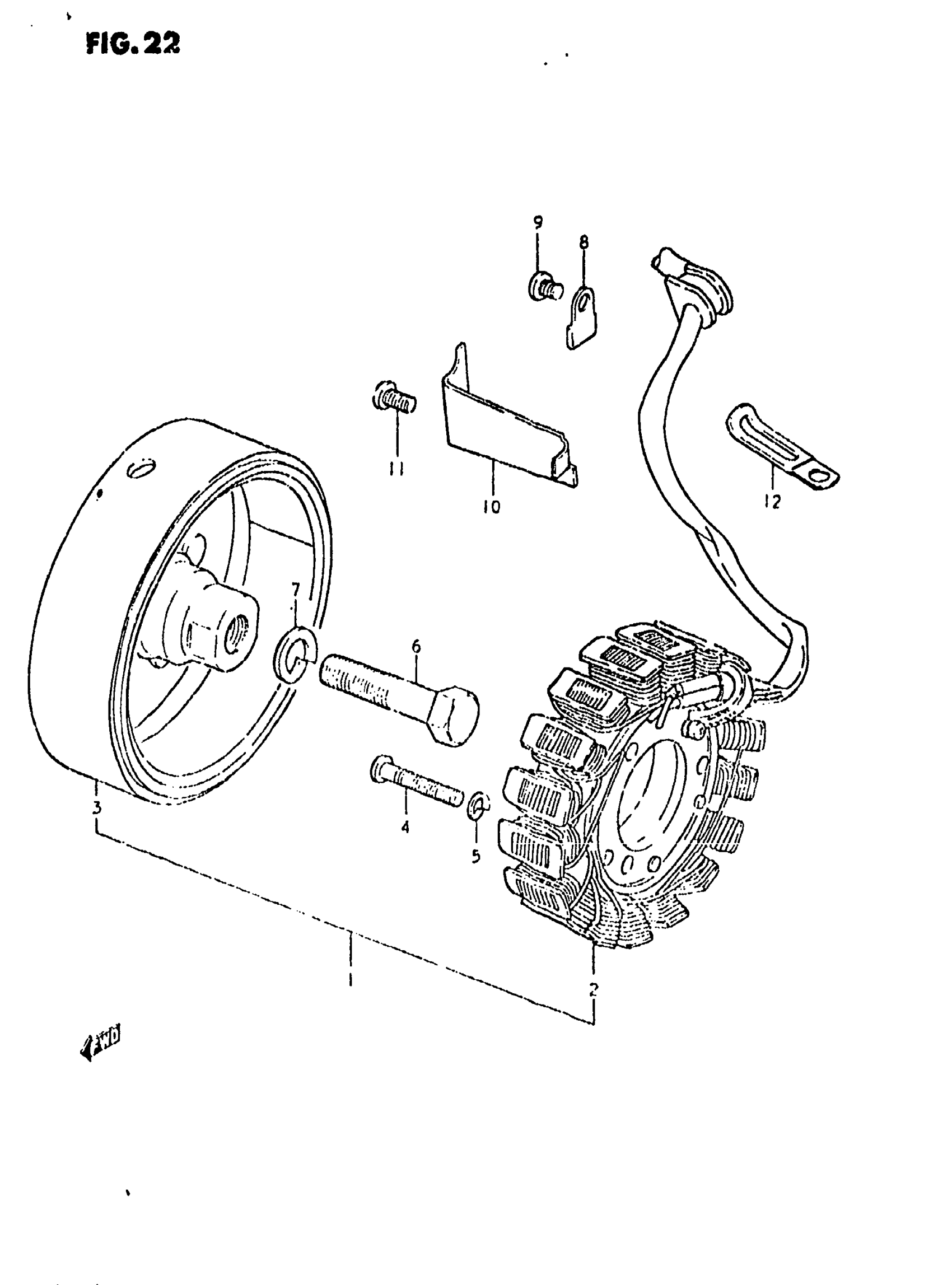

Suzuki GS850GL (1981) GENERATOR Diagram

#

Description
Price

1

STATOR | Includes Item(s) 2 - 3 This part replaces 31400-45110.

31401-45120

Unavailable

2

STATOR This part replaces 31401-45110.

31401-45120

Unavailable

3

ROTOR This part replaces 31402-45110.

31402-45120

Unavailable

4

SCREW This part replaces 02112-05308.

02112-0530A

$2.05

5

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

6

BOLT This part replaces 01107-12458.

01500-12457

$6.12

7

LOCK WASHER This part replaces 08321-21128.

08321-01127

$2.06

8

CLAMP

31497-45000

$1.92

9

SCREW This part replaces 02112-05068.

09125-05122

$2.06

10

CLAMP

31498-45000

$2.15

11

SCREW This part replaces 02112-06108.

02112-06107

$1.49
