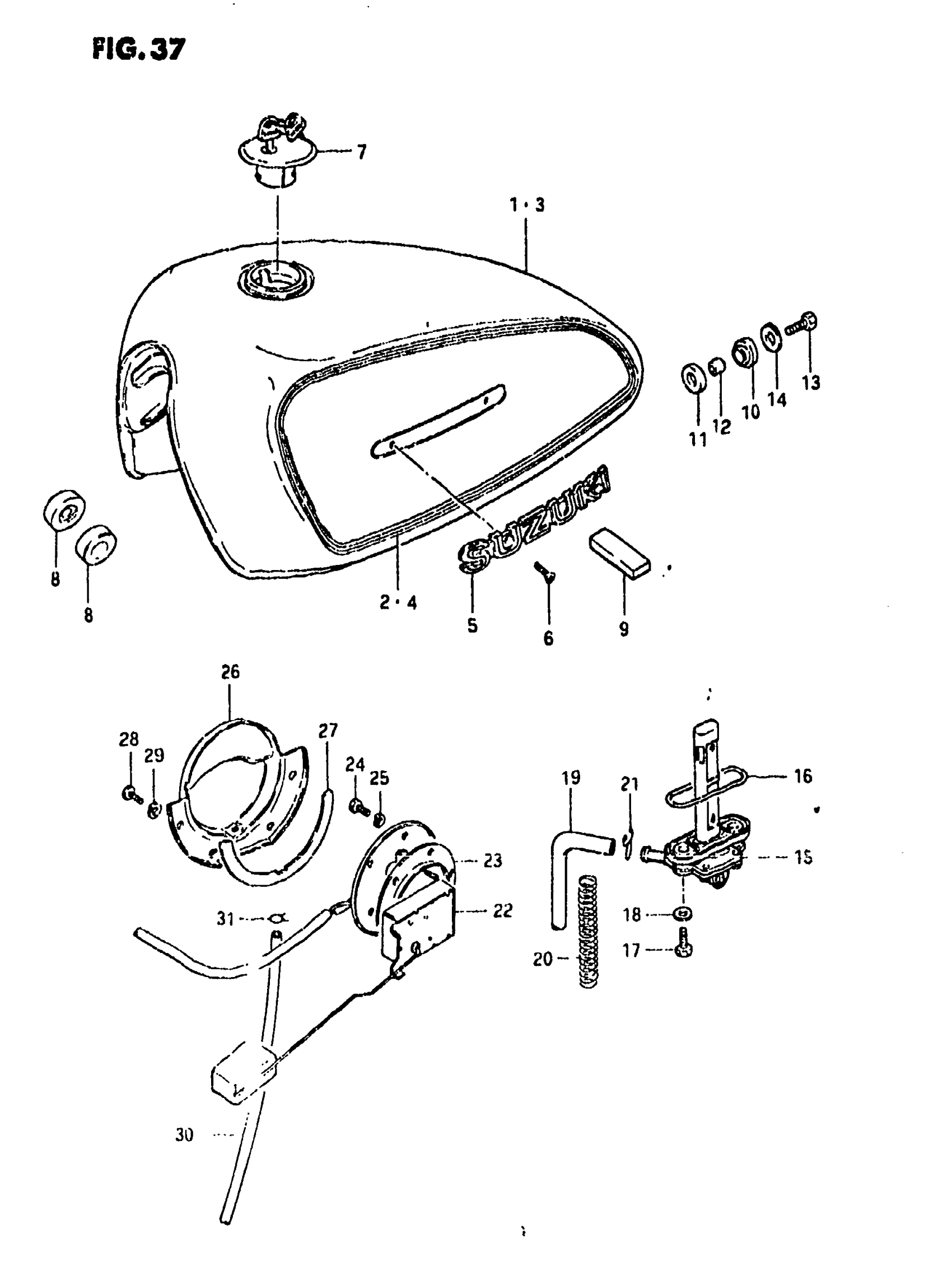

Suzuki GS850GL (1981) FUEL TANK (MODEL T) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 This part replaces 44100-47200-10U.

44110-47200-13L

Unavailable

2

TAPE SET

68110-47200-66Y

Unavailable

3

NO DESCRIPTION AVAILABLE | Includes Item(s) 4 This part replaces 44100-47200-08E.

44110-47200-13L

Unavailable

4

TAPE SET

68110-47200-67M

Unavailable

5

EMBLEM This part replaces 68111-45200.

68111-45010

$24.36

6

SCREW This part replaces 02132-03065.

02122-0306B

$2.26

7

CAP SET,FUEL TA This part replaces 44200-30702.

44200-30832

$94.67

8

CUSHION This part replaces 09329-10007.

09329-10026

$2.23

9

CUSHION FUEL TA This part replaces 09329-01005.

09329-01008

$4.77

10

CUSHION, REAR NO.1 This part replaces 09320-12010.

09320-12013

$2.60

11

CUSHION, REAR NO.2 This part replaces 09320-12023.

09320-12017

$2.18

12

SPACER

09180-08067

$2.41

13

BOLT This part replaces 01107-08308.

01500-08307

$3.04

14

WASHER, EXHAUST SUPPORT This part replaces 09160-08002.

09160-08135

$2.35

15

COCK ASSY, FUEL | Includes Item(s) 16

44300-47270

Unavailable

16

GASKET This part replaces 44348-47270.

44348-47271

Unavailable

17

BOLT, STARTING MOTOR This part replaces 09128-06024.

09103-06212

$2.47

18

GASKET (5.8X13X1.2) This part replaces 09168-06010.

09168-06023

$2.35

19

HOSE(7X10.2X200 This part replaces 09343-07026.

09352-70104-00B

$15.32

20

SPRING This part replaces 09440-13017.

09440-13043

$6.04

21

CLIP

09401-10403

$1.65

22

GAUGE ASSY, FUEL LEVEL | Includes Item(s) 23

34810-45300

Unavailable

23

GASKET

34825-45100

$5.80

24

BOLT This part replaces 01104-05108.

01500-0510B

$1.80

25

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

26

PLATE This part replaces 34885-49002.

34885-49005

Unavailable

27

GASKET,FUEL DRA This part replaces 34888-49000.

34888-49001

Unavailable

28

SCREW This part replaces 02112-05088.

02112-05087

$1.49

29

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

30

HOSE This part replaces 09343-05165.

09352-50005-00B

$13.93

31

CLIP

09401-08402

$1.49
