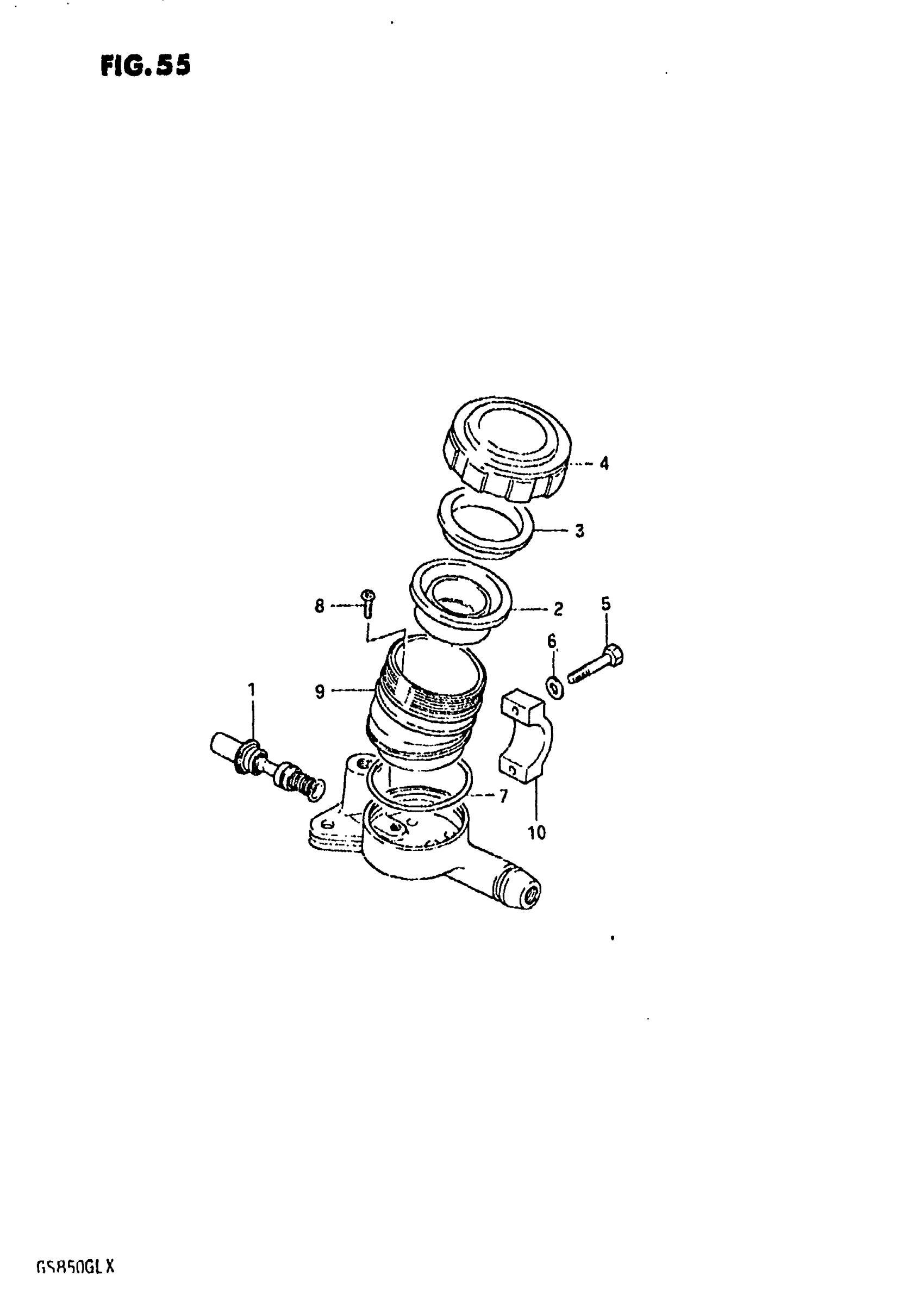

Suzuki GS850GL (1981) FRONT MASTER CYLINDER Diagram

#

Description

Price

0

NO DESCRIPTION AVAILABLE | Includes Item(s) 1 - 10 This part replaces 59600-45060.

59600-450V0

Unavailable

1

PISTON & CUP SET | MODEL T This part replaces 59600-45810.

59600-45811

Unavailable

1

PISTON & CUP SET | MODEL X

59600-45811

Unavailable

2

DIAPHRAGM

59667-18441

$10.28

3

PLATE, DIAPHRAGM

59668-18441

$4.52

4

CAP This part replaces 59669-33603.

59669-07D00

$31.72

5

BOLT This part replaces 01107-06258.

01500-06257

$1.97

6

WASHER This part replaces 08322-21068.

08322-01067

$2.13

7

O RING

59686-33600

Unavailable

8

SCREW

59688-33601

Unavailable

9

RESERVOIR

59687-45050

Unavailable

10

HOLDER

59671-18441

Unavailable
