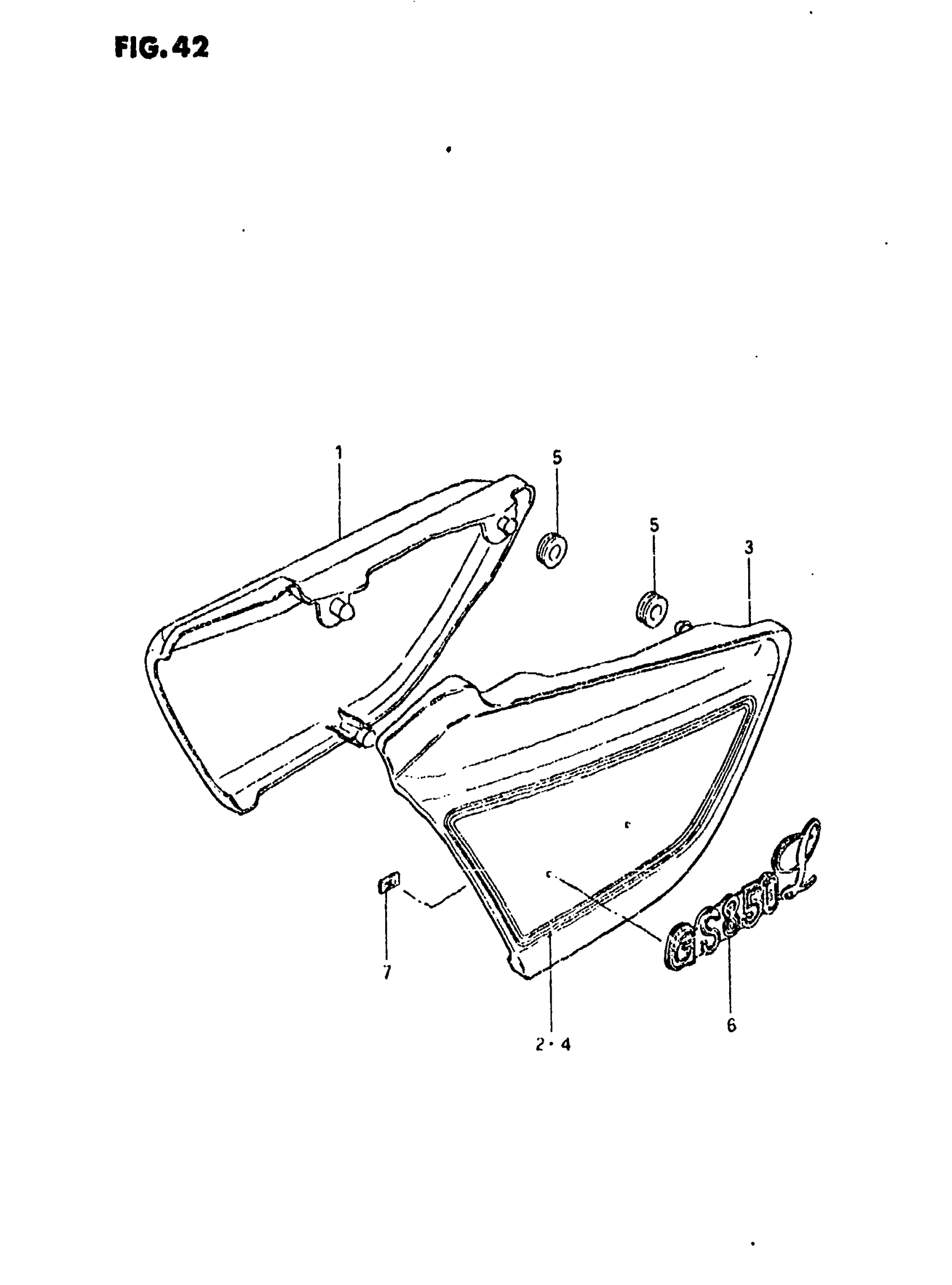

Suzuki GS850GL (1981) FRAME COVER (MODEL X) Diagram

#

Description

Price

1

COVER, FRAME RH This part replaces 47100-45820-08D.

47111-45310

Unavailable

1

COVER, FRAME RH This part replaces 47100-45820-08E.

47111-45310

Unavailable

2

TAPE SET, RH (GOLD)

68130-45310-764

Unavailable

3

COVER,FRAME,LH This part replaces 47200-45820-08D.

47211-45310

Unavailable

3

COVER,FRAME,LH This part replaces 47200-45820-08E.

47211-45310

Unavailable

4

TAPE SET, LH (GOLD)

68140-45310-764

Unavailable

5

CUSHION

09320-08018

$3.04

6

EMBLEM This part replaces 68131-45310.

68131-45330

Unavailable

7

NUT

09148-03002

$2.15
