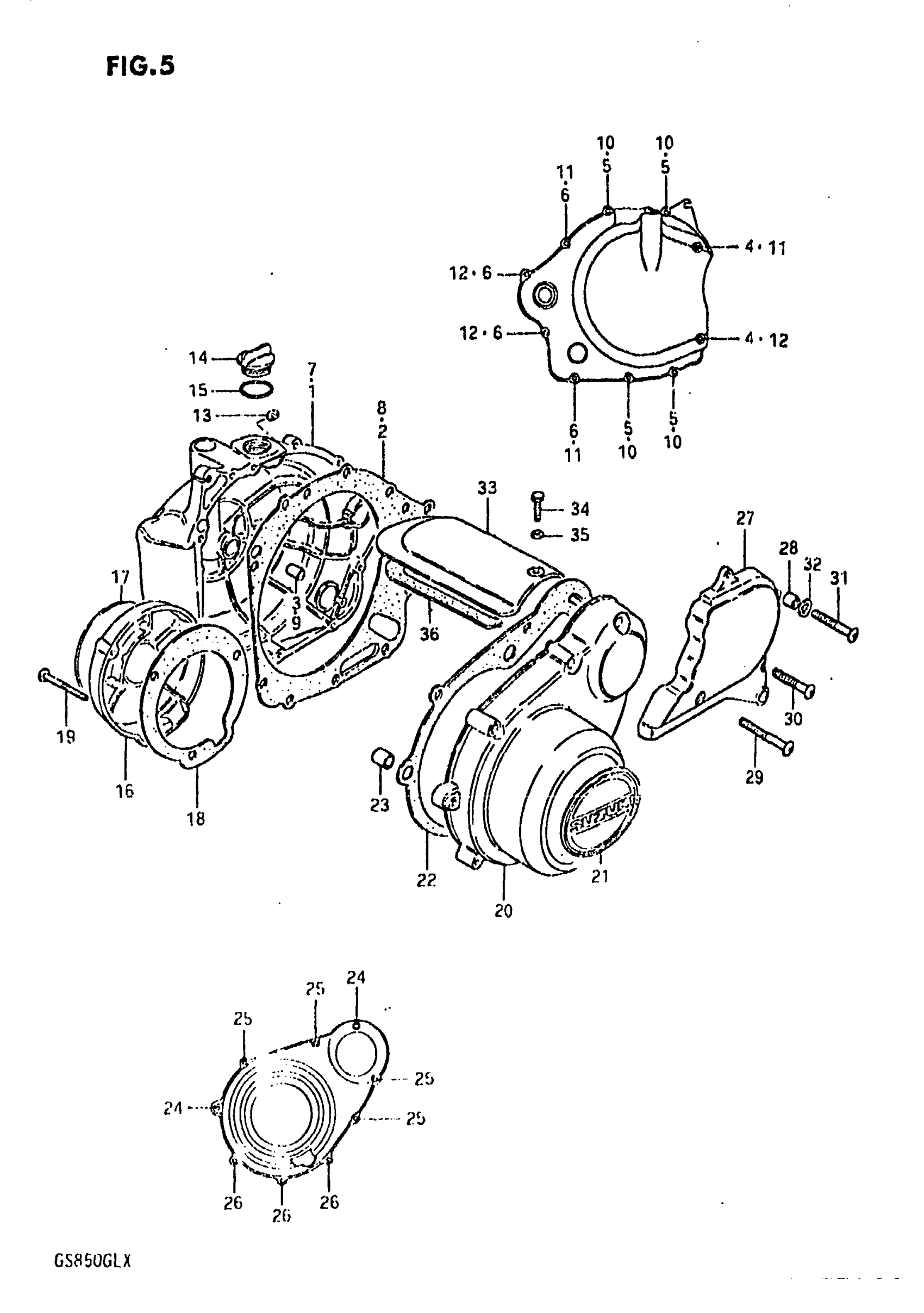

Suzuki GS850GL (1981) CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CLUTCH | MODEL T

11340-45110

Unavailable

2

GASKET,CLUTCH | MODEL T This part replaces 11482-45100.

11482-45100-H17

Unavailable

3

PIN | MODEL T

04211-09129

$1.65

4

SCREW | MODEL T This part replaces 02112-06658.

02112-06657

$2.62

5

SCREW | MODEL T This part replaces 02112-06258.

02112-06257

$1.78

6

SCREW | MODEL T This part replaces 02112-06208.

02112-06207

$1.78

7

COVER, CLUTCH | MODEL X This part replaces 11340-49100.

11340-49101

Unavailable

8

GASKET,CLUTCH C | MODEL X This part replaces 11482-49100.

11482-49100-H17

Unavailable

9

PIN | MODEL X

09202-09004

Unavailable

10

SCREW | MODEL X This part replaces 02112-06258.

02112-06257

$1.78

11

SCREW | MODEL X This part replaces 02112-06308.

02112-06307

$1.97

12

SCREW | MODEL X This part replaces 02112-06358.

02112-06357

$1.78

13

JET, OIL GALLERY CLUTCH (110) | MODEL X

09493-22009

Unavailable

14

CAP, OIL FILLER This part replaces 09259-30001.

09200-30810

$10.15

15

O RING

09280-32005

$1.99

16

COVER, CONTACT BREAKER This part replaces 11381-49001.

11381-49002

Unavailable

17

EMBLEM

68235-45200

Unavailable

18

GASKET

11491-45000

Unavailable

19

SCREW This part replaces 02112-05308.

02112-0530A

$2.05

20

COVER, GENERATOR This part replaces 11351-45000.

11351-45001

Unavailable

21

EMBLEM

68233-45200

$18.50

22

GASKET,MAG COVE This part replaces 11483-45000.

11483-45000-H17

$11.75

23

PIN This part replaces 09206-13001.

04211-13189

$2.19

24

SCREW (6X45) This part replaces 02112-06458.

02112-06457

$1.78

25

SCREW (6X40) This part replaces 02112-06408.

02112-06407

$1.78

26

SCREW This part replaces 02112-06358.

02112-06357

$1.78

27

COVER, SECONDARY DRIVE UNIT This part replaces 11360-45100.

11360-49101

Unavailable

28

PIN

04211-09129

$1.65

29

SCREW This part replaces 02112-06308.

02112-06307

$1.97

30

SCREW This part replaces 02112-06208.

02112-06207

$1.78

31

SCREW This part replaces 02112-06258.

02112-06257

$1.78

32

WASHER This part replaces 08322-21068.

08322-01067

$2.13

33

COVER, STARTER MOTOR

11382-49002

$46.38

34

BOLT This part replaces 01104-05108.

01500-0510B

$1.80

35

WASHER This part replaces 08322-21058.

08322-01057

$2.13

36

GASKET MOTOR CO This part replaces 11493-45001.

11493-45002

Unavailable
