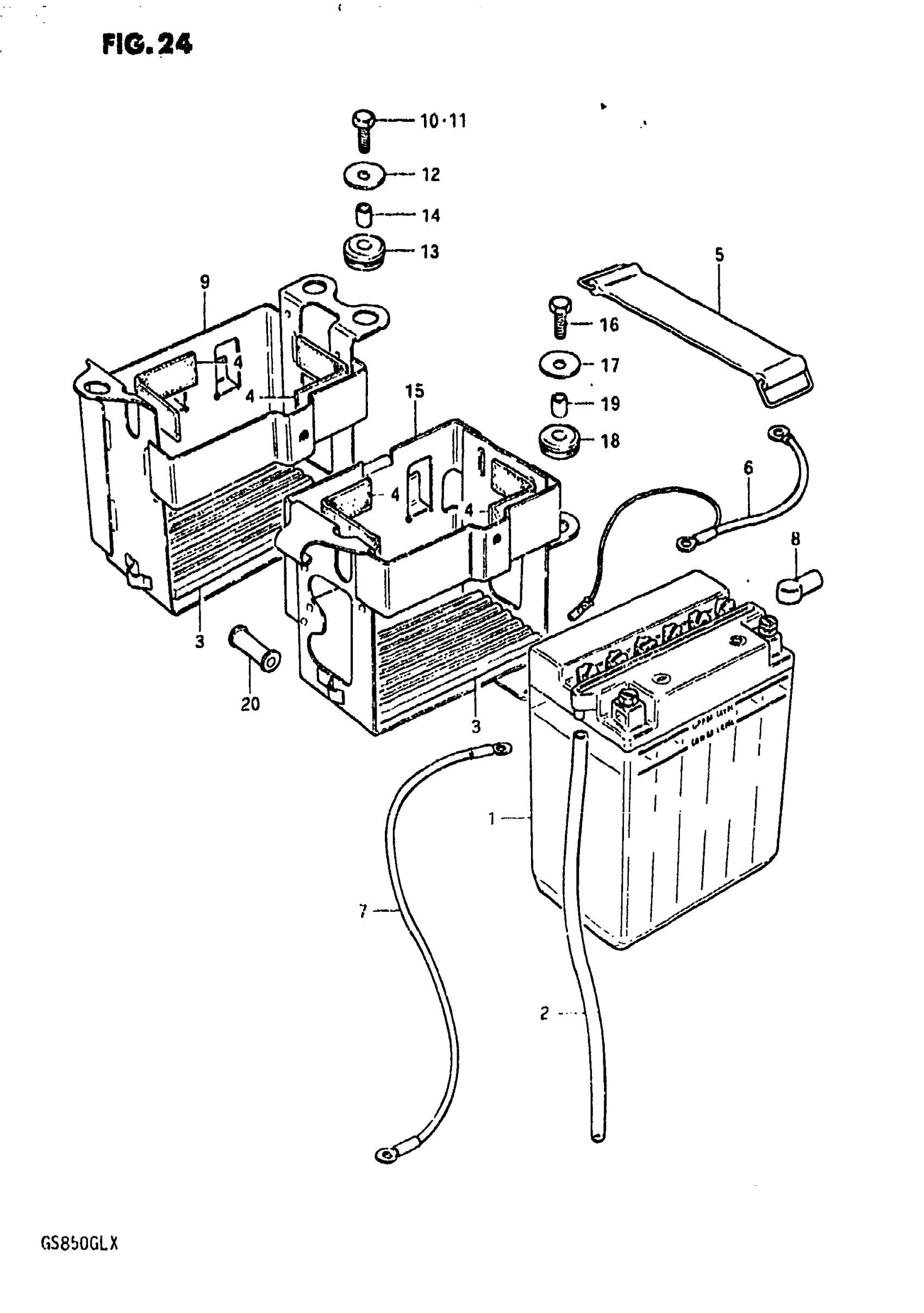

Suzuki GS850GL (1981) BATTERY Diagram

#

Description
Price

1

BATTERY (12V, 14AH)

33610-49210

Unavailable

2

HOSE,BATTERY EX This part replaces 33680-31003.

33680-16A11

$6.78

3

CUSHION

33651-31000

$18.02

4

PROTECTOR

33652-49000

$3.58

5

BAND

09462-00007

$4.11

6

WIRE,BATTERY PL | MODEL T This part replaces 33820-45001.

33820-44B01

Unavailable

6

WIRE,BATTERY PL | MODEL X This part replaces 33820-44101.

33820-44B01

Unavailable

7

LEAD WIRE, (-) | MODEL T This part replaces 33850-06200.

33850-03201

$9.94

7

LEAD WIRE, (-) | MODEL X

33850-03201

$9.94

8

CAP, TERMINAL

33624-45000

$4.58

9

HOLDER, BATTERY | MODEL T

41540-45110

Unavailable

10

BOLT | MODEL T This part replaces 01107-06128.

01500-06127

$1.97

11

BOLT, CANISTER | MODEL T This part replaces 01107-06168.

01500-06167

$1.97

12

WASHER | MODEL T This part replaces 09160-06012.

09160-06054

$1.62

13

CUSHION (8X22X7) | MODEL T This part replaces 09320-08013.

09320-08509

$1.93

14

SPACER | MODEL T

09180-06001

$2.30

15

HOLDER, BATTERY | MODEL X

41540-45350

Unavailable

16

BOLT, CANISTER | MODEL X This part replaces 01107-06168.

01500-06167

$1.97

17

WASHER | MODEL X This part replaces 09160-06012.

09160-06054

$1.62

18

CUSHION (8X22X7) | MODEL X This part replaces 09320-08013.

09320-08509

$1.93

19

SPACER | MODEL X

09180-06001

$2.30

20

CUSHION | MODEL X This part replaces 09320-08022.

09320-08522

$2.57
