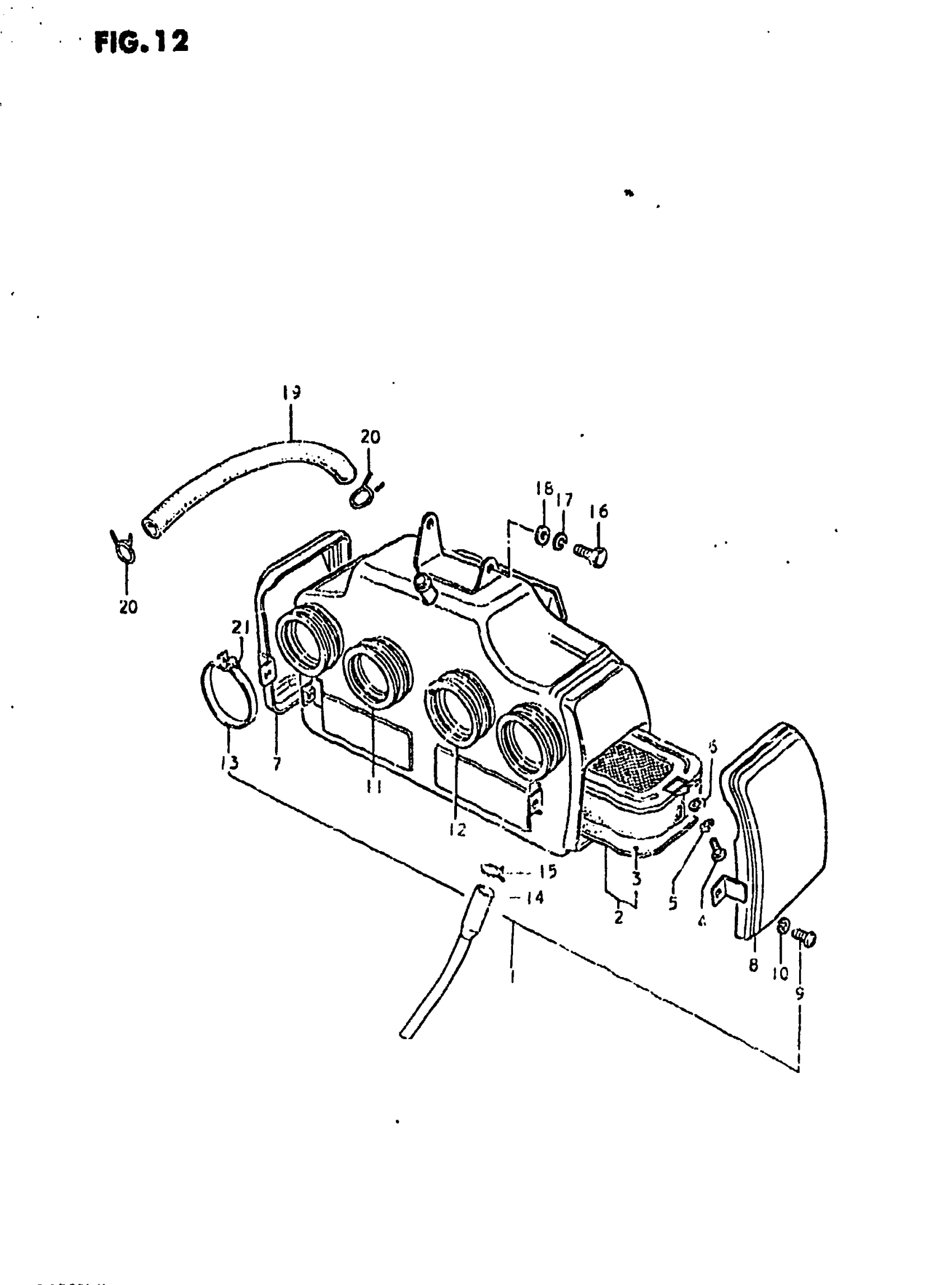

Suzuki GS850GL (1981) AIR CLEANER (MODEL T) Diagram

#

Description
Price

1

CLEANER ASSY, AIR | Includes Item(s) 2 - 15

13700-45030

Unavailable

2

FILTER

13780-45010

Unavailable

3

ELEMENT

13781-45010

Unavailable

4

SCREW This part replaces 02112-05108.

02112-05107

$1.49

5

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

6

WASHER This part replaces 08322-21058.

08322-01057

$2.13

7

CAP AIR CLEANER This part replaces 13741-45030.

13741-45020

Unavailable

8

CAP AIR CLEANER This part replaces 13742-45030.

13742-45020

Unavailable

9

SCREW This part replaces 02112-05108.

02112-05107

$1.49

10

WASHER This part replaces 08322-21058.

08322-01057

$2.13

11

HOSE, RH

13881-45030

Unavailable

12

HOSE, LH

13882-45030

Unavailable

13

CLAMP (2) This part replaces 09402-58205.

09402-58306

$4.77

14

HOSE, DRAIN (4X6) This part replaces 13729-45010.

13729-45011

Unavailable

15

CLIP (8) This part replaces 13726-45010.

13726-45011

Unavailable

16

BOLT This part replaces 01107-06128.

01500-06127

$1.97

17

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

18

.WASHER This part replaces 08322-11068.

08322-0106B

$2.26

19

HOSE,11X15X2000 This part replaces 09343-11001.

09352-11154-00B

$48.35

20

CLIP

09401-15301

$2.45
