1983 Suzuki GS850G Steering Stem Diagram

← All diagrams

Find the part on the Steering Stem diagram for your 1983 Suzuki GS850G, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

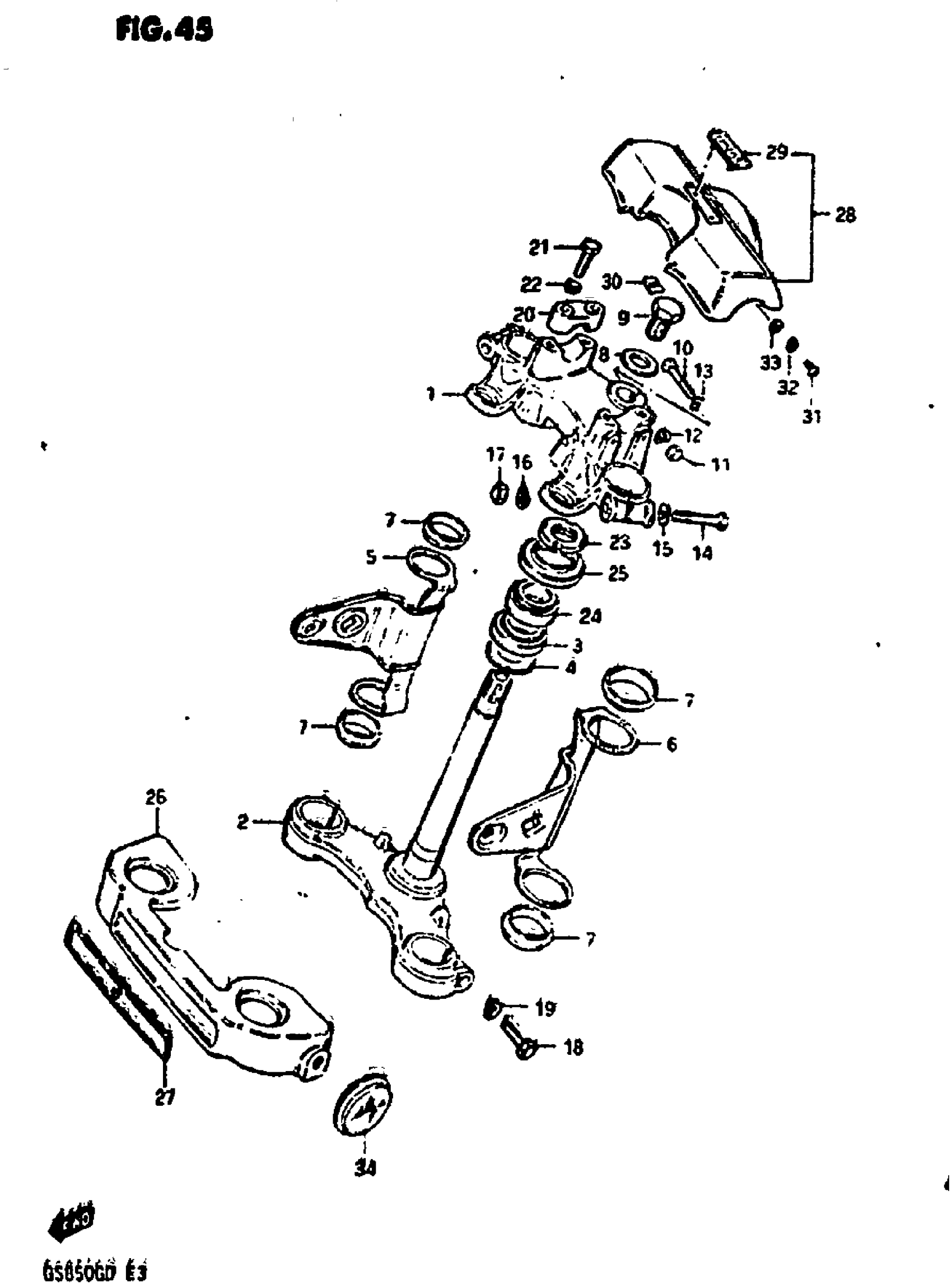

1983 Suzuki GS850G Steering Stem Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STEERING STEM HEAD

51311-49400-291

1
Out of stock

2

NO DESCRIPTION AVAILABLE | Includes Item(s) 3 - 4 This part replaces 51410-49400-291.

51410-49430-291

1
Out of stock

3

RT 30X55X17 BEA This part replaces 09265-30005.

09265-30034

1
Out of stock

4

SHIM, 30X40X1.5 This part replaces 08211-30402.

09181-30184

1
Out of stock

5

NO DESCRIPTION AVAILABLE This part replaces 51530-49400.

51500-49830

1
Out of stock

6

NO DESCRIPTION AVAILABLE This part replaces 51540-49400.

51540-49410

1
Out of stock

7

CUSHION, BRACKET This part replaces 51553-49000.

51553-34300

4
Out of stock

8

WASHER This part replaces 51356-49400.

51356-43530

1
Out of stock

9

BOLT This part replaces 51353-49400.

51352-43530

1
Out of stock

10

BOLT This part replaces 01107-08508.

01500-08507

1
Out of stock

11

NUT This part replaces 08313-11088.

08313-10087

1
Out of stock

12

1

$2.28

In stock

13

WASHER This part replaces 08322-21088.

08322-01087

1
Out of stock

14

BOLT This part replaces 01107-10558.

01500-1055A

2
Out of stock

15

WASHER This part replaces 08322-21108.

08322-01107

2
Out of stock

16

LOCK WASHER This part replaces 08321-21108.

08321-01107

2
Out of stock

17

NUT This part replaces 08313-11108.

08313-10107

2
Out of stock

18

BOLT This part replaces 01107-08358.

01500-0835B

4
Out of stock

19

4

$2.28

In stock

20

CLAMP, HANDLEBAR UPPER

56211-29320-291

2
Out of stock

21

BOLT This part replaces 01107-08358.

01500-0835B

4
Out of stock

22

4

$2.28

In stock

23

NUT, STEERING STEM

51631-34200

1
Out of stock

24

BEARING, UPPER

09265-25008

1
Out of stock

25

SEAL,DUST This part replaces 51643-40502.

51643-40503

1
Out of stock

26

COVER, FRONT FORK

51871-49400

1
Out of stock

27

EMBLEM

68211-49400

1
Out of stock

28

PAD, HANDLEBAR | Includes Item(s) 29 - 30

56170-49400

1
Out of stock

29

EMBLEM

68281-45100

1
Out of stock

30

NUT

09140-03002

2
Out of stock

31

SCREW This part replaces 02112-05108.

02112-05107

4
Out of stock

32

LOCK WASHER This part replaces 08321-21058.

08321-0105A

4
Out of stock

33

WASHER This part replaces 08322-21058.

08322-01057

4
Out of stock

34

REFLEX REFLECTOR, SIDE

35950-49080

2
Out of stock
