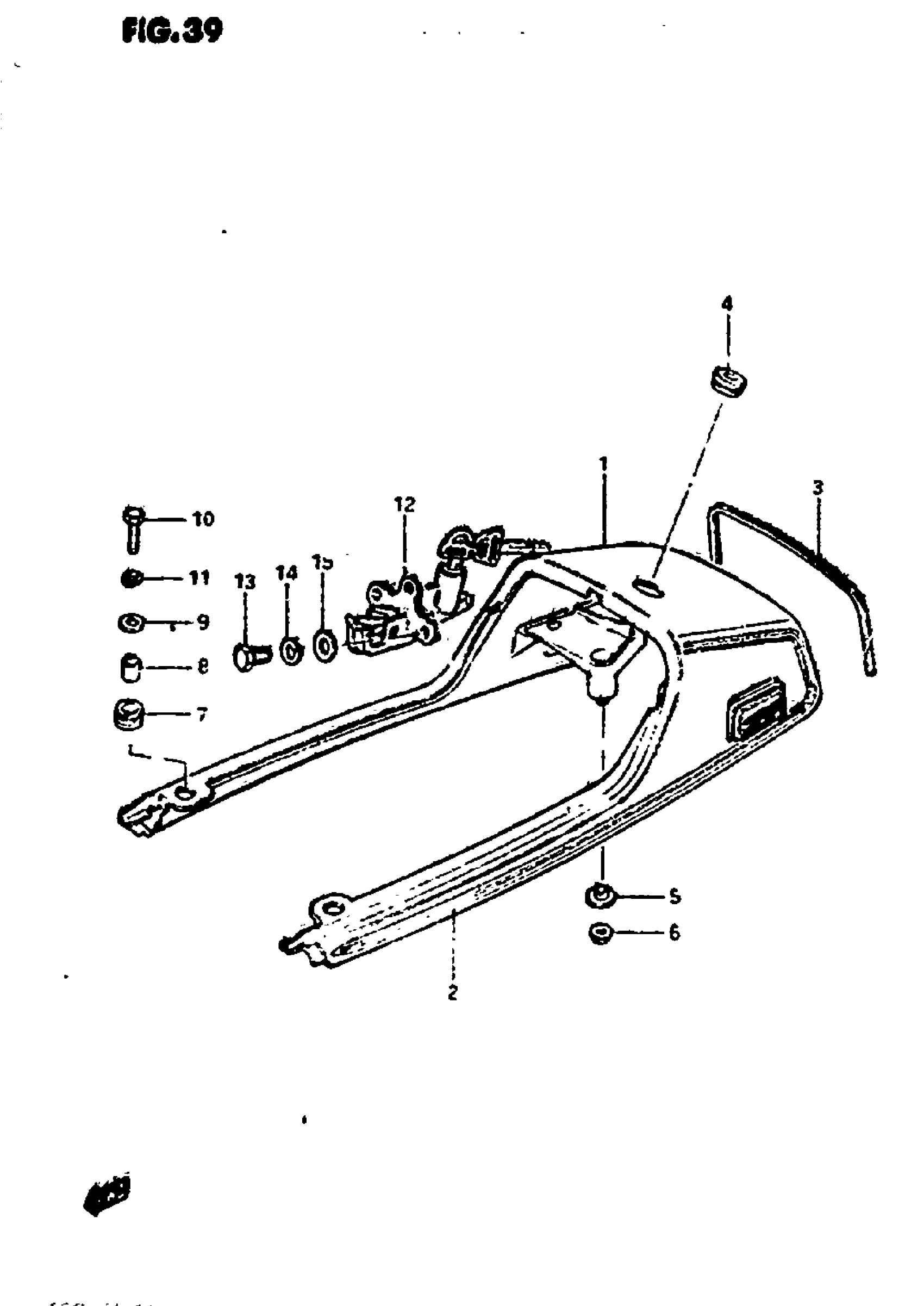

Suzuki GS850G (1983) SEAT TAIL COVER (MODEL Z) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 45500-49410-019.

45510-49400

Unavailable

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 This part replaces 45500-49410-10U.

45510-49400

Unavailable

2

TAPE SET (GOLD)

68160-45710-764

Unavailable

3

MOULDING, SEAT TAIL COVER

45562-49400

Unavailable

4

GROMMET

45522-49200

$4.58

5

WASHER

09169-06016

$1.65

6

.NUT This part replaces 08319-21068.

08319-2106A

$1.91

7

CUSHION, FRONT

09320-10003

$2.38

8

SPACER This part replaces 09180-07013.

09180-06290

$2.35

9

WASHER, FRONT This part replaces 09160-06004.

09160-06134

$1.91

10

BOLT This part replaces 01107-06258.

01500-06257

$1.97

11

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

12

SEAT LOCK SET

95700-49830

Unavailable

13

BOLT This part replaces 01107-06128.

01500-06127

$1.97

14

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

15

WASHER This part replaces 08322-21068.

08322-01067

$2.13
