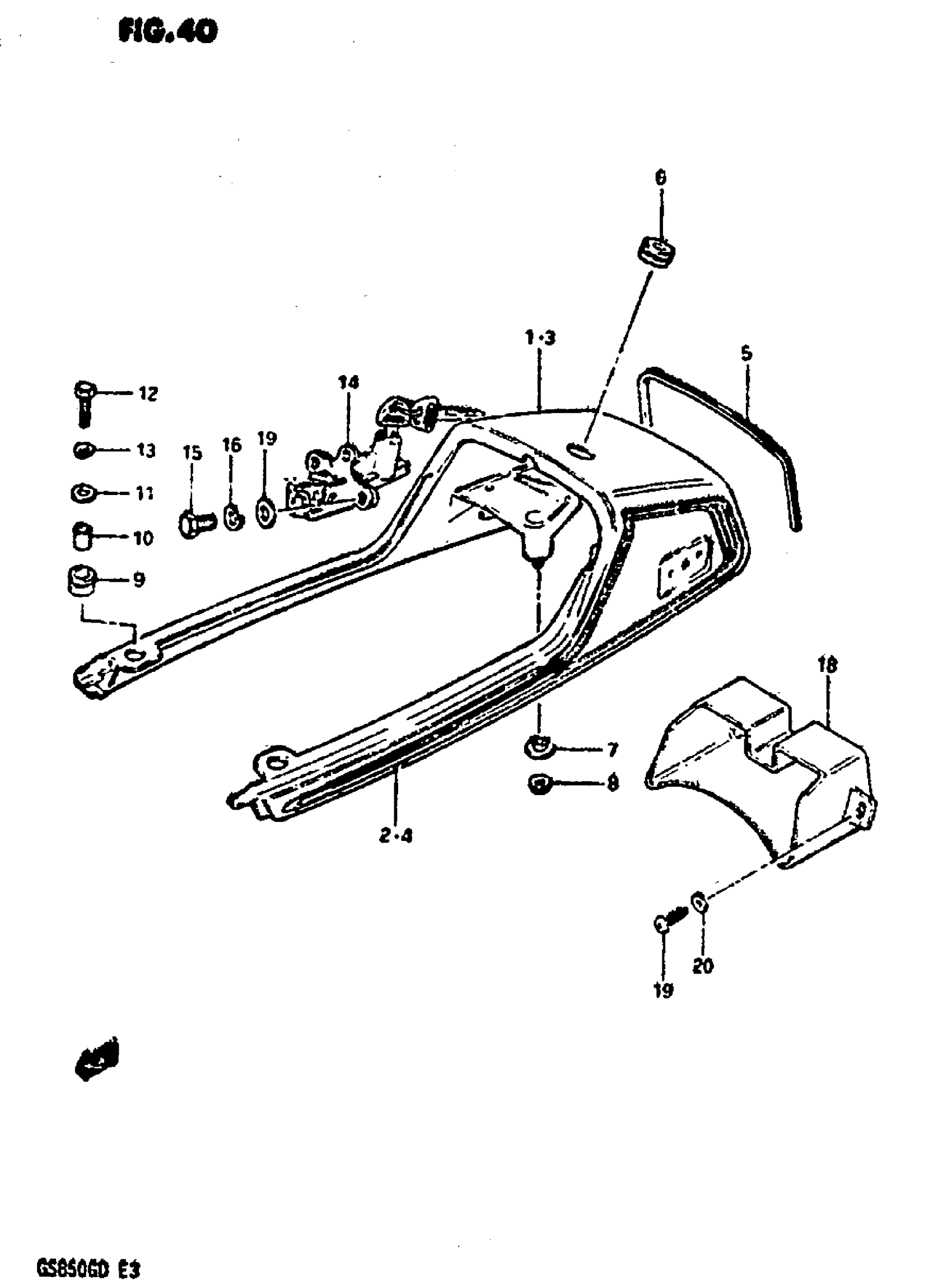

Suzuki GS850G (1983) SEAT TAIL COVER (MODEL O) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 45500-45140-86B.

45510-49400

Unavailable

2

TAPE SET

68160-45720-86A

Unavailable

3

NO DESCRIPTION AVAILABLE | Includes Item(s) 4 This part replaces 45500-45140-81L.

45510-49400

Unavailable

4

TAPE SET

68160-45720-81N

Unavailable

5

MOULDING, SEAT TAIL COVER

45562-49400

Unavailable

6

GROMMET

45522-49200

$4.58

7

WASHER

09169-06016

$1.65

8

.NUT This part replaces 08319-21068.

08319-2106A

$1.91

9

CUSHION, FRONT

09320-10003

$2.38

10

SPACER This part replaces 09180-07013.

09180-06290

$2.35

11

WASHER, FRONT This part replaces 09160-06004.

09160-06134

$1.91

12

BOLT This part replaces 01107-06258.

01500-06257

$1.97

13

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

14

SEAT LOCK SET

95700-49830

Unavailable

15

BOLT This part replaces 01107-06128.

01500-06127

$1.97

16

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

17

WASHER This part replaces 08322-21068.

08322-01067

$2.13

18

BOX, SEAT TAIL

94991-49400

Unavailable

19

SCREW This part replaces 02142-06128.

02142-06127

$1.49

20

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13
