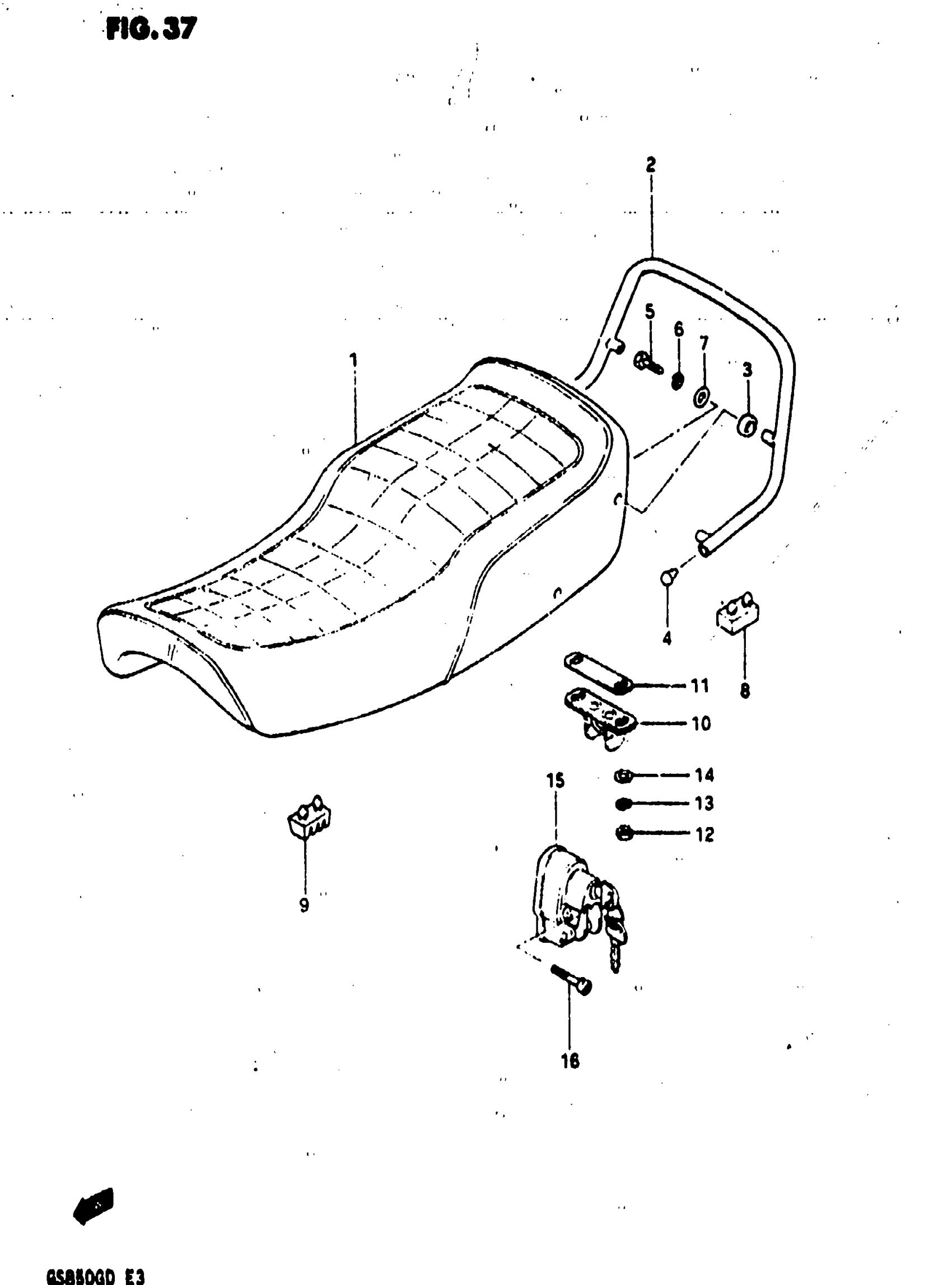

Suzuki GS850G (1983) SEAT (MODEL Z) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 7 This part replaces 45100-49400-47G.

45100-49410-48H

Unavailable

2

HANDLE, PILLION RIDER

46210-49400

Unavailable

3

CUSHION

46212-49000

Unavailable

4

END, HANDLE

46213-49000

Unavailable

5

BOLT, REAR This part replaces 01107-08208.

01500-08207

$2.55

6

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$1.83

7

WASHER This part replaces 08322-21088.

08322-01087

$1.86

8

CUSHION

09321-08012

$4.18

9

CUSHION

45149-45330

$3.56

10

STRIKER, SEAT LOCK

45210-44101

Unavailable

11

SHIM

45217-44100

Unavailable

12

.NUT This part replaces 08310-22068.

08310-00067

$1.83

13

LOCK WASHER This part replaces 08321-21068.

08321-01067

$1.83

14

WASHER This part replaces 08322-21068.

08322-01067

$1.86

15

LOCK HELMET

95700-34210

Unavailable

16

BOLT This part replaces 09106-05008.

07130-0525B

$2.70
