1983 Suzuki GS850G Seat Diagram

← All diagrams

Find the part on the Seat diagram for your 1983 Suzuki GS850G, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

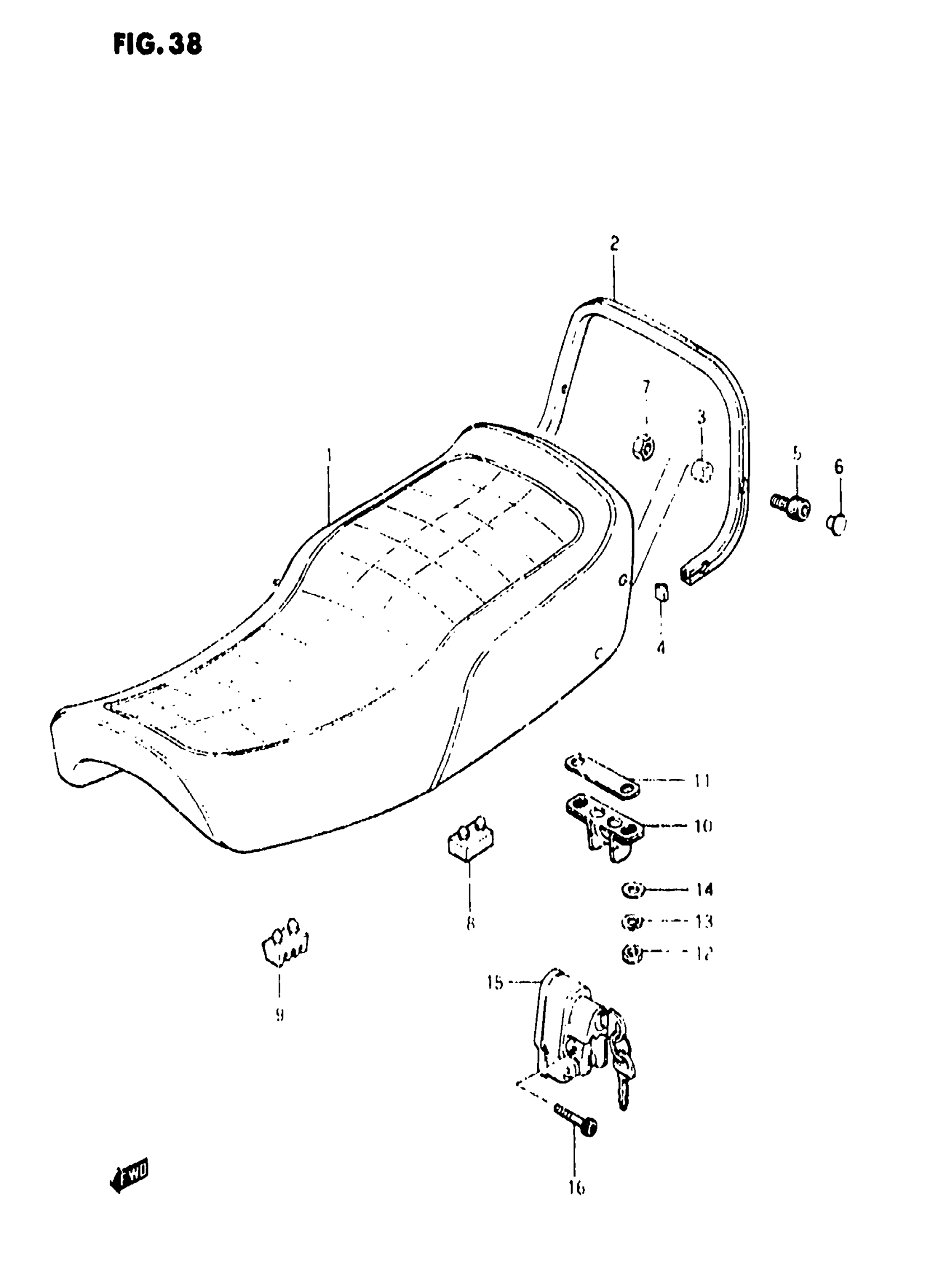

1983 Suzuki GS850G Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SEAT ASSY (BLACK) | Includes Item(s) 2 - 7

45100-49430-48H

1
Out of stock

2

HANDLE, PILLION RIDER

46211-49430

1
Out of stock

3

SPACER

46218-49430

4
Out of stock

4

END, HANDLE This part replaces 46213-49430.

46213-49431

2
Out of stock

5

BOLT, STEERING DAMPER This part replaces 09106-08013.

07130-0830A

4
Out of stock

6

CAP

09250-06004

4

$1.55

In stock

7

NUT This part replaces 08316-26086.

08316-20087

4
Out of stock

8

CUSHION

09321-08012

2
Out of stock

9

CUSHION

45149-45330

2
Out of stock

10

STRIKER, SEAT LOCK

45210-44101

1
Out of stock

11

SHIM

45217-44100

2
Out of stock

12

.NUT This part replaces 08310-22068.

08310-00067

2
Out of stock

13

2

$2.28

In stock

14

WASHER This part replaces 08322-21068.

08322-01067

2
Out of stock

15

LOCK, HELMET

95700-34210

1
Out of stock

16

BOLT This part replaces 09106-05008.

07130-0525B

2
Out of stock
