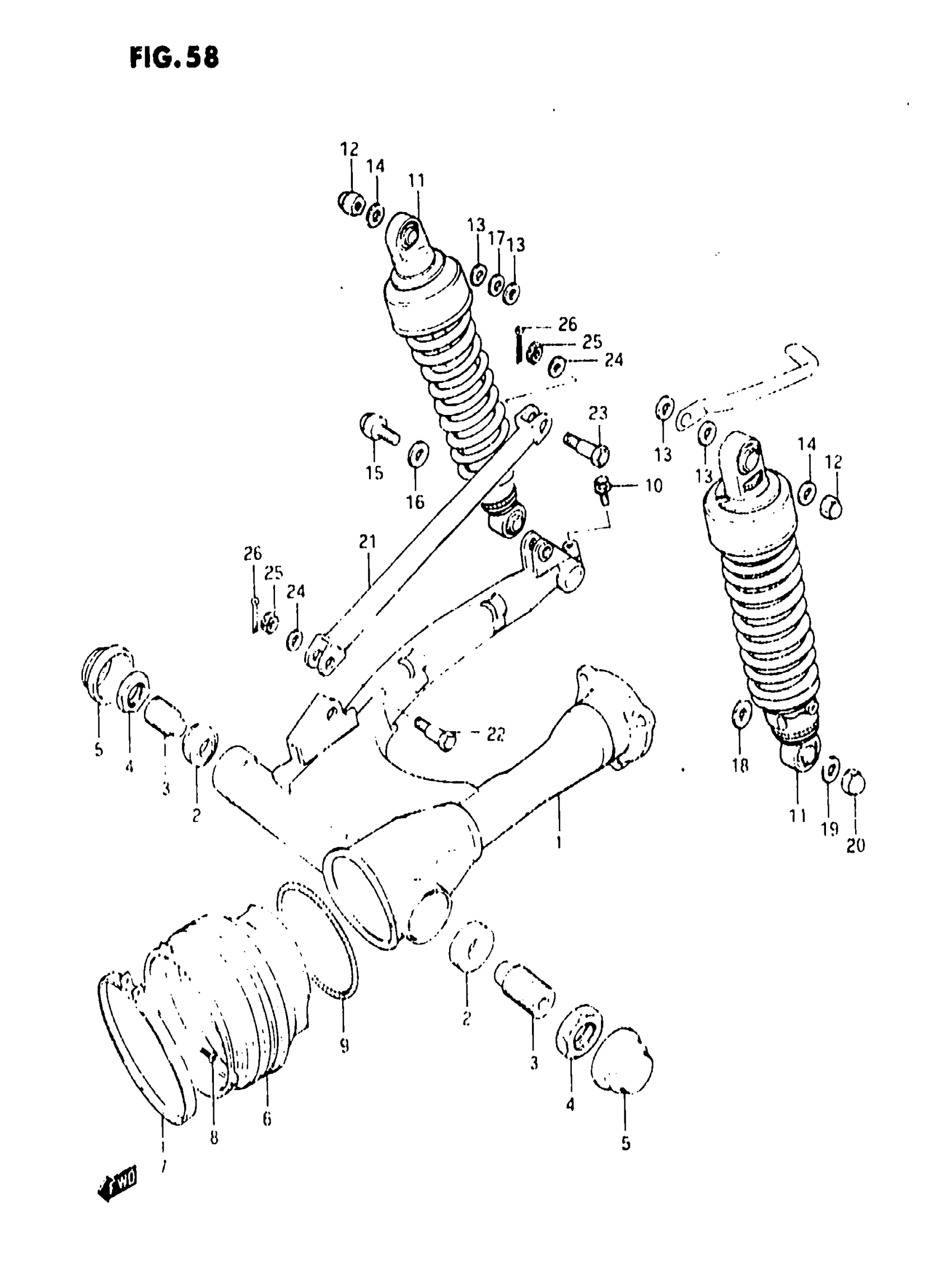

Suzuki GS850G (1983) REAR SWINGING ARM (MODEL D) Diagram

#

Description
Price

1

REAR SWINGING ARM SET | BLACK; Includes Item(s) 2

61100-45870-019

Unavailable

2

BEARING

09265-17012

$69.07

3

SHAFT, PIVOT

61213-45101

Unavailable

4

NUT

09140-24007

$3.89

5

CAP

61222-45100

Unavailable

6

BOOT, DRIVE SHAFT

61372-45300

Unavailable

7

CLAMP This part replaces 09402-00304.

09402-00303

$5.76

8

SCREW This part replaces 03211-04255.

03211-0425B

$2.70

9

SPRING,PROPELLE This part replaces 61373-34300.

61373-3430V

Unavailable

10

BOLT This part replaces 01517-08258.

01550-08257

$2.81

11

SHOCK ABSORBER, REAR

62100-49440

Unavailable

12

NUT, UPPER

09145-10001

Unavailable

13

WASHER This part replaces 08322-11128.

08322-01127

$1.84

14

WASHER, LOWER (10.5X24X2.3) This part replaces 09160-10001.

09160-10093

$2.35

15

BOLT, LOWER RH

09104-12014

Unavailable

16

WASHER This part replaces 09160-12004.

09160-12088

$2.00

17

WASHER, FRONT AXLE This part replaces 09160-12012.

09160-12082

$3.29

18

WASHER This part replaces 08322-11128.

08322-01127

$1.84

19

WASHER, LOWER (10.5X24X2.3) This part replaces 09160-10001.

09160-10093

$2.35

20

NUT This part replaces 08310-11108.

08310-00107

$2.19

21

TORQUE LINK, REAR (BLACK)

64310-45300-019

Unavailable

22

BOLT,10X39 This part replaces 09111-10011.

09111-10022-XC0

Unavailable

23

BOLT, REAR

09101-10017

Unavailable

24

WASHER This part replaces 08322-11108.

08322-01107

$2.15

25

NUT This part replaces 08314-41108.

08314-4010B

$2.50

26

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49
