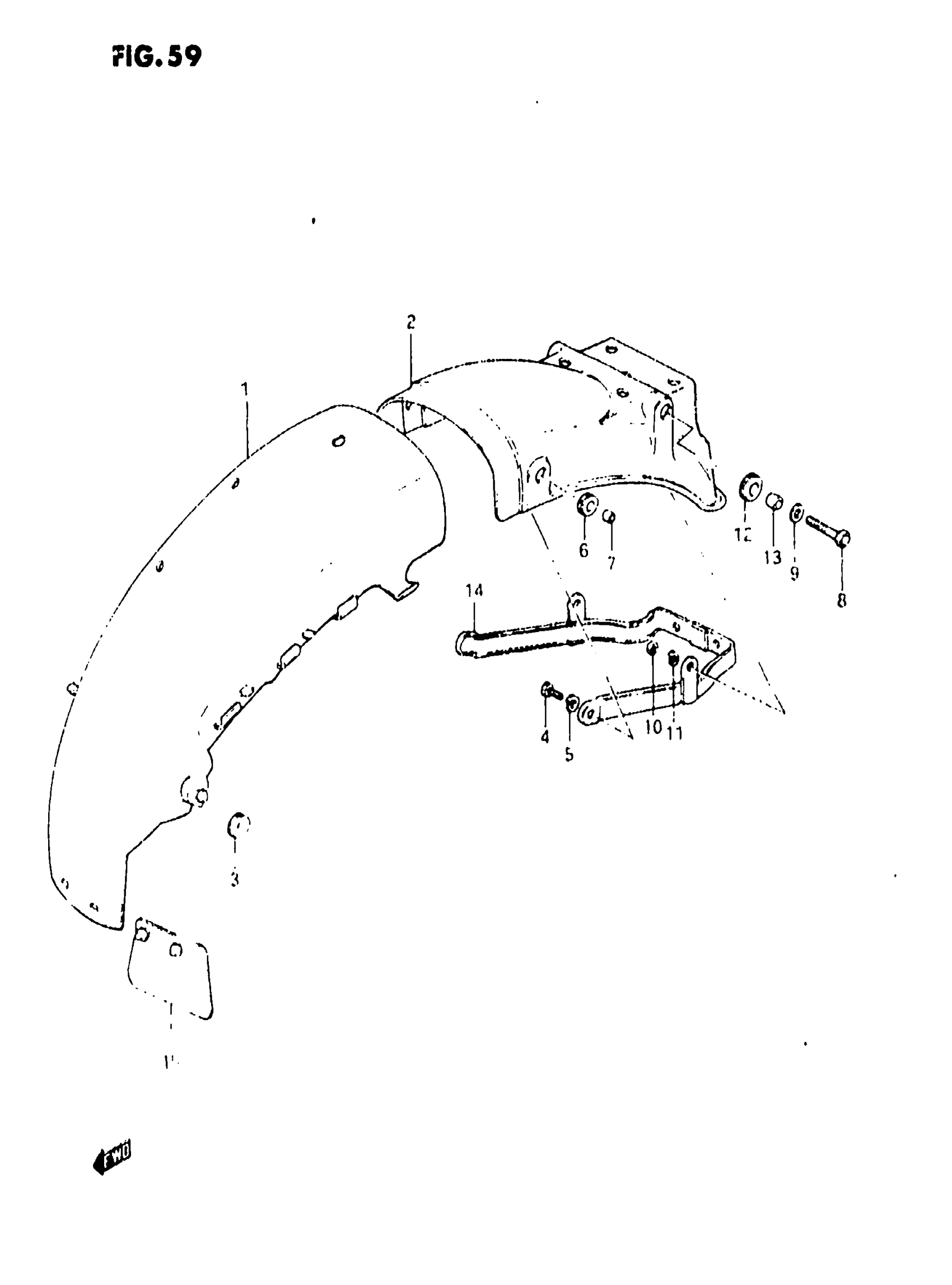

Suzuki GS850G (1983) REAR FENDER Diagram

#

Description
Price

1

BODY,RR FENDER This part replaces 63112-49003.

63112-49004

Unavailable

2

NO DESCRIPTION AVAILABLE | MODEL Z This part replaces 63113-49400-291.

63113-49440-291

Unavailable

2

NO DESCRIPTION AVAILABLE | MODEL D This part replaces 63113-49420-291.

63113-49440-291

Unavailable

3

CUSHION (8X22X7) This part replaces 09320-08013.

09320-08509

$1.93

4

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97

5

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

6

CUSHION (8.5X20X8) This part replaces 09320-08007.

09320-08510

$1.97

7

SPACER (6.1X9X7.5)

09180-06038

$1.98

8

BOLT This part replaces 01107-08308.

01500-08307

$3.04

9

WASHER This part replaces 08322-11088.

08322-01087

$2.13

10

NUT This part replaces 08310-12088.

08310-00087

$2.13

11

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

12

FENDER SIDE CUS This part replaces 09320-12011.

09320-12090

$1.91

13

SPACER This part replaces 09180-08021.

09180-08188

$2.56

14

REINFORCEMENT, REAR FENDER

63120-49400

Unavailable

15

MUD GUARD, REAR FENDER

63411-31900

Unavailable
