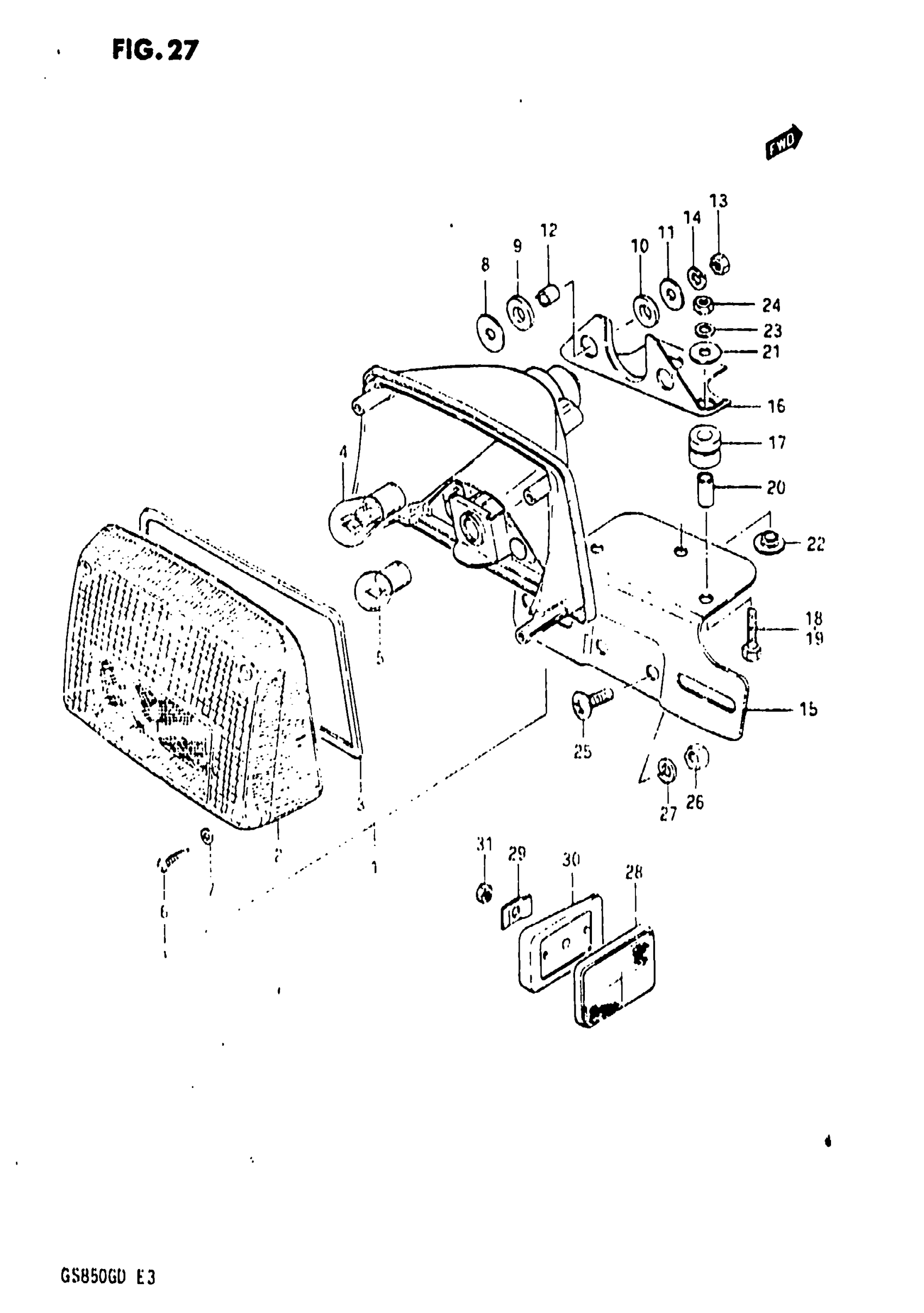

Suzuki GS850G (1983) REAR COMBINATION LAMP Diagram

#

Description
Price

1

LAMP, REAR COMBINATION | Includes Item(s) 2 - 7 This part replaces 35710-49030.

35710-34310

Unavailable

2

LENS

35712-49031

$67.73

3

GASKET

35713-49030

Unavailable

4

BULB (12V, 32/3CP)

09471-12035

$4.49

5

BULB (12V, BW) This part replaces 09471-12037.

09471-12141

Unavailable

6

SCREW This part replaces 35627-49030.

03511-0416A

$1.78

7

GASKET

35627-43010

$2.28

8

WASHER This part replaces 09160-06007.

09160-06084

$1.78

9

CUSHION

09320-09004

$3.03

10

CUSHION

09320-09003

$2.23

11

WASHER This part replaces 09160-06012.

09160-06054

$1.62

12

SPACER

09180-06038

$1.98

13

.NUT This part replaces 08310-11068.

08310-00067

$2.13

14

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

15

HOLDER, LICENSE PLATE

35927-49031

Unavailable

16

BRACKET

35928-49031

Unavailable

17

CUSHION This part replaces 35794-49000.

35765-30950

$8.95

18

BOLT This part replaces 01107-06258.

01500-06257

$1.97

19

BOLT, REAR This part replaces 01107-06308.

01500-06307

$2.48

20

SPACER (6.5X9X15.5) This part replaces 09180-06087.

09180-06269

Unavailable

21

WASHER This part replaces 09160-06007.

09160-06084

$1.78

22

WASHER

09169-06016

$1.65

23

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

24

.NUT This part replaces 08310-11068.

08310-00067

$2.13

25

SCREW

02142-06167

$1.49

26

.NUT This part replaces 08310-11068.

08310-00067

$2.13

27

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

28

REFLEX RECLECTOR, REAR

35970-45130

Unavailable

29

WASHER

35997-45130

Unavailable

30

SPACER

35977-45130

Unavailable

31

NUT This part replaces 08310-11058.

08310-00057

$1.84
