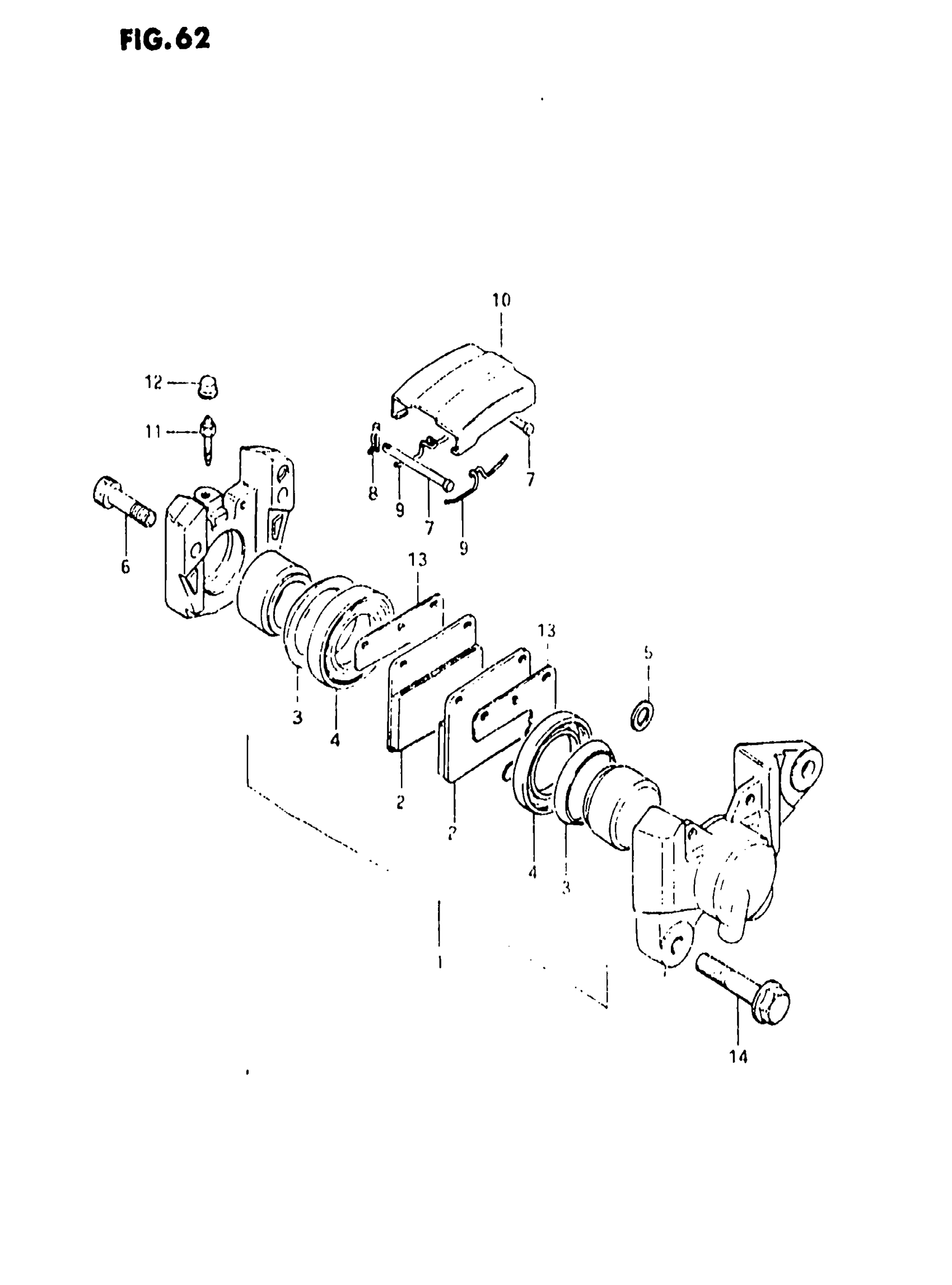

Suzuki GS850G (1983) REAR CALIPERS Diagram

#

Description
Price

0

NO DESCRIPTION AVAILABLE | MODEL Z This part replaces 69100-34200.

69100-34270

Unavailable

0

NO DESCRIPTION AVAILABLE | MODEL D; Includes Item(s) 1 - 13 This part replaces 69100-34201.

69100-34270

Unavailable

1

PISTON SET | MODAL Z This part replaces 69100-34810.

69100-34851

Unavailable

1

PISTON SET | MODEL D This part replaces 69100-34820.

69100-34851

Unavailable

2

PAD SET | MODEL Z This part replaces 69130-45020.

69101-45850-XNA

Unavailable

2

PAD SET | MODEL D This part replaces 69130-45021.

69101-45850-XNA

Unavailable

3

SEAL,PISTON This part replaces 59107-18410.

69107-05CF0

$9.07

4

BOOT, PISTON

69108-45000

$8.50

5

SEAL, PISTON

69107-34200

$10.71

6

BOLT This part replaces 69145-34200.

59145-05C50

$7.97

7

PIN

69141-45000

$5.17

8

.CLIP, PAD PIN

69142-45000

$4.34

9

SPRING

69143-45001

$6.73

10

DUST COVER

69151-45000

$14.31

11

BLEEDER

59121-18410

$8.73

12

CAP, BLEEDER This part replaces 59122-18410.

55156-66310

$5.17

13

SHIM

69152-45001

$7.54

14

BOLT, RH This part replaces 01527-10308.

01550-10307

$3.91
