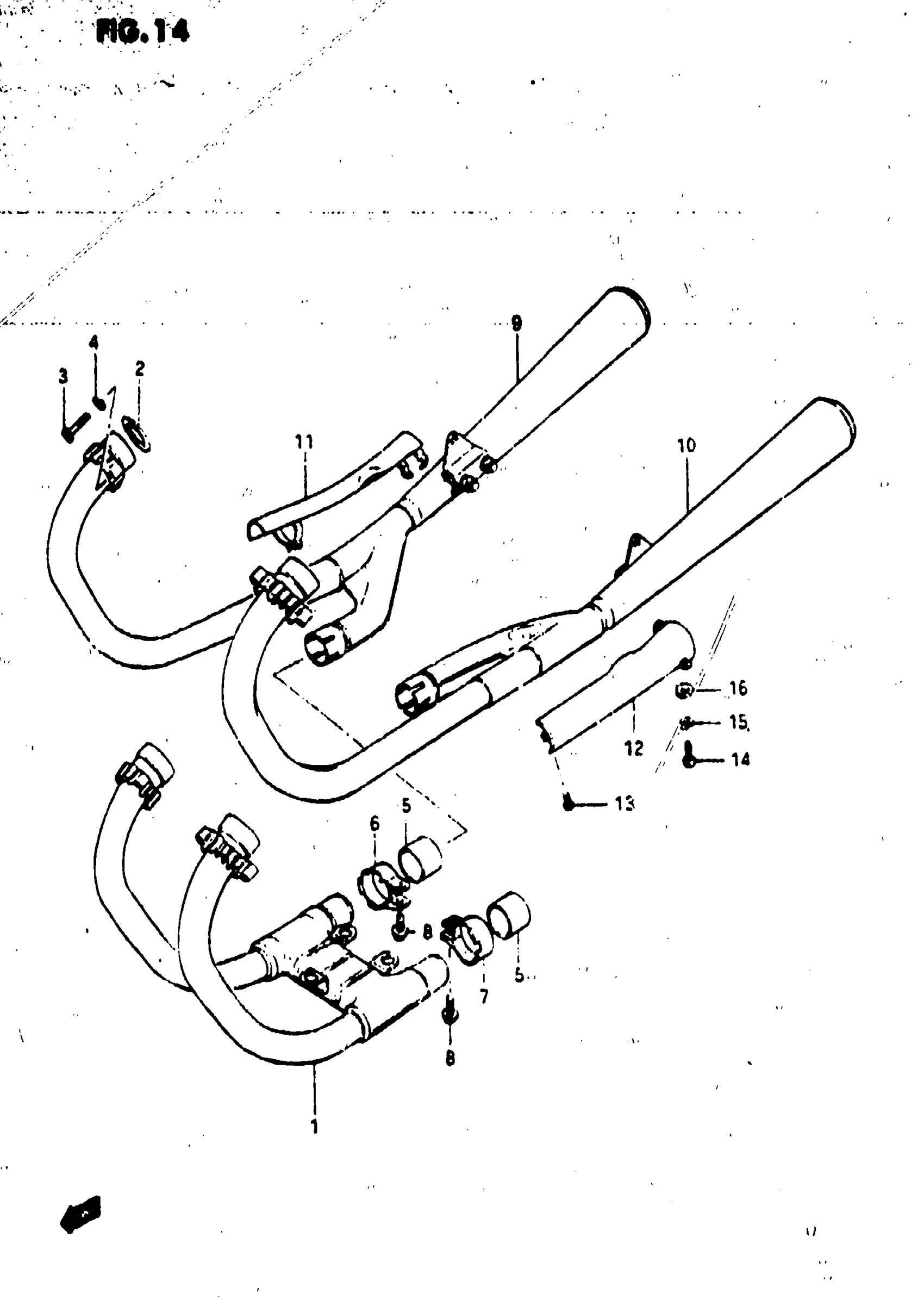

Suzuki GS850G (1983) MUFFLER (MODEL D) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 14100-45100.

14100-45101-H01

Unavailable

2

GASKET, EXHAUST PIPE This part replaces 14181-11020.

14181-01D00

$7.11

3

BOLT This part replaces 01107-08408.

01500-0840A

$2.60

4

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

5

CONNECTOR,MUFFL This part replaces 14771-44020.

14771-44030

Unavailable

6

CLAMP, CONNECTOR RH

14459-44000

Unavailable

7

CLAMP, CONNECTOR LH

14469-44000

Unavailable

8

BOLT This part replaces 01517-08258.

01550-08257

$2.81

9

NO DESCRIPTION AVAILABLE This part replaces 14301-45121.

14301-45140-H01

Unavailable

10

NO DESCRIPTION AVAILABLE This part replaces 14302-45121.

14302-45140-H01

Unavailable

11

COVER, MUFFLER RH This part replaces 14780-45010.

14780-49400

Unavailable

12

COVER, LH

14790-45010

Unavailable

13

SCREW This part replaces 02112-05168.

02112-05167

$1.97

14

SCREW This part replaces 02112-06108.

02112-06107

$1.49

15

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

16

WASHER This part replaces 08322-21068.

08322-01067

$2.13
