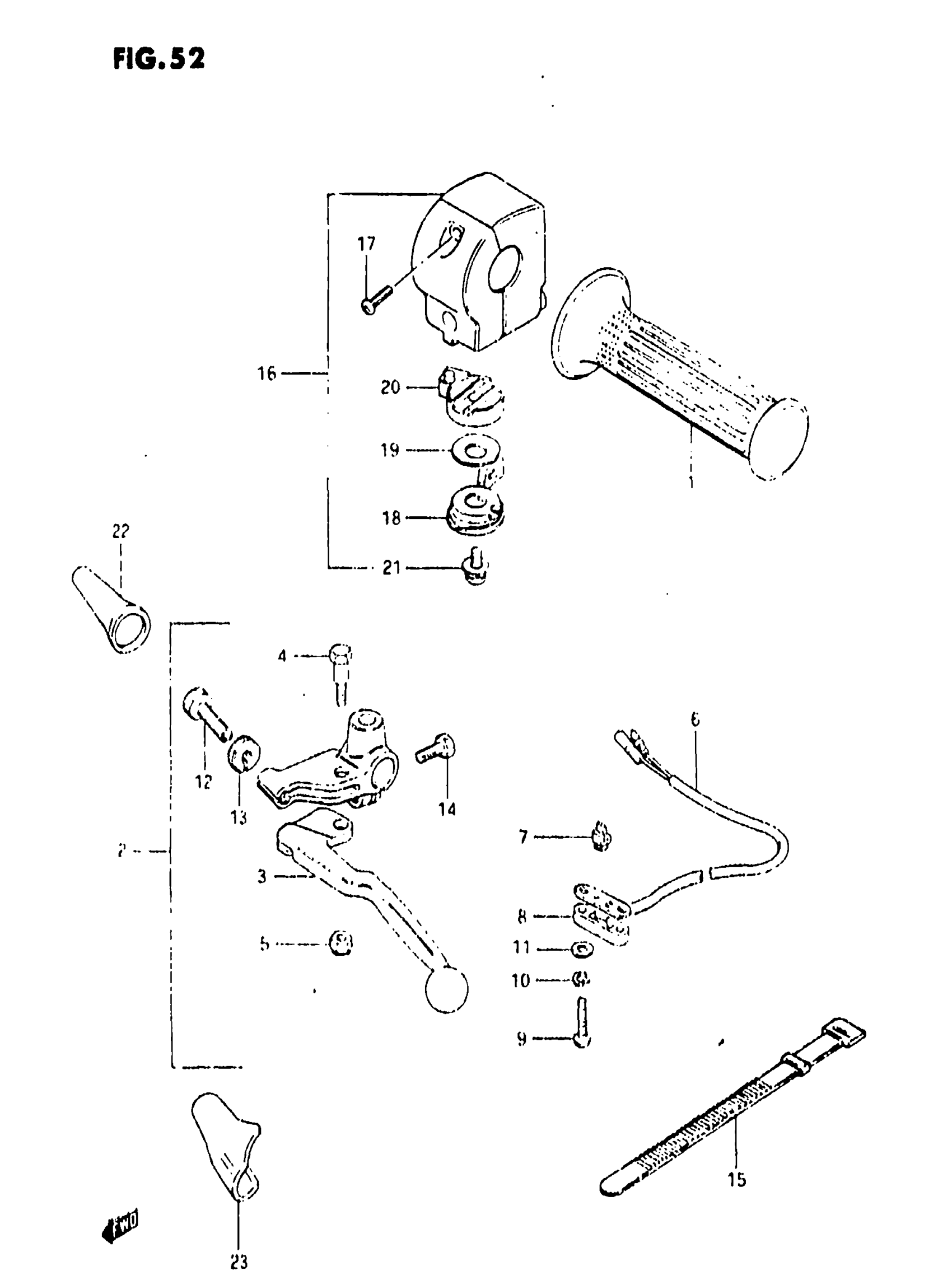

Suzuki GS850G (1983) LEFT HANDLE SWITCH (MODEL D) Diagram

#

Description
Price

1

GRIP, LH This part replaces 57211-45010.

57211-49510

Unavailable

2

LEVER ASSY,CLUT | Includes Item(s) 3 - 14 This part replaces 57500-49300.

57500-49301

Unavailable

3

LEVER, CLUTCH

57620-49101

Unavailable

4

BOLT This part replaces 57431-11011.

57431-11013

$6.31

5

.NUT This part replaces 08319-21068.

08319-2106A

$1.91

6

WIRING HARNESS

57540-49300

Unavailable

7

HOLDER

57465-18601

$4.34

8

COVER

57481-33010

$5.84

9

SCREW

57484-49110

$1.98

10

WASHER,LOCK This part replaces 08321-21038.

09162-03001

$1.49

11

WASHER This part replaces 08322-21038.

08322-01037

$1.93

12

ADJUSTER, CABLE

57441-11010

$5.62

13

NUT

57442-11010

$2.79

14

BOLT

57451-49100

Unavailable

15

BAND (L:120)

09407-12402

$3.04

16

NO DESCRIPTION AVAILABLE | Includes Item(s) 17 - 21 This part replaces 37400-49472.

37400-49473

Unavailable

17

SCREW This part replaces 02112-05168.

02112-05167

$1.97

18

LEVER, STARTER

58721-27503

$7.51

19

WASHER

58722-03010

$3.71

20

BODY, STARTER LEVER

37572-49441

$13.74

21

SCREW This part replaces 37574-49440.

02112-7516A

$2.41

22

BOOT, CLUTCH CABLE This part replaces 58273-31000.

58273-31001

$2.22

23

COVER

57661-31000

$7.25
