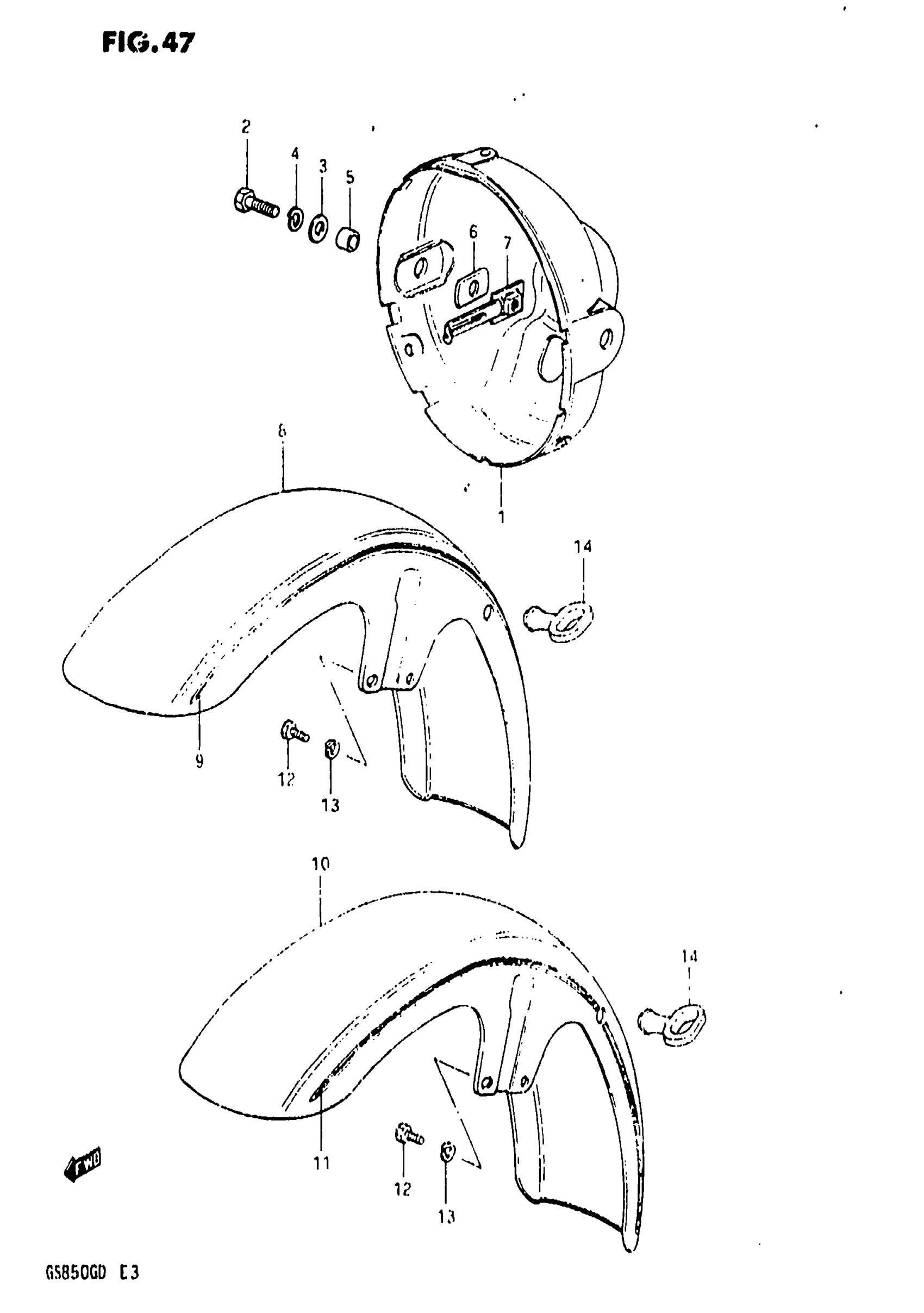

Suzuki GS850G (1983) HEADLAMP HOUSING-FRONT FENDER Diagram

#

Description
Price

1

HOUSING, HEADLAMP

51811-49401-019

Unavailable

2

BOLT

01204-08257

$1.96

3

WASHER This part replaces 08322-11088.

08322-01087

$2.13

4

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

5

SPACER This part replaces 09180-08030.

09180-08187

$2.65

6

CUSHION This part replaces 09329-12002.

09329-12005

$2.32

7

PLATE,HEADLAMP This part replaces 51820-45000.

51820-45001

$5.50

8

NO DESCRIPTION AVAILABLE | MODEL Z This part replaces 53100-49400-019.

53110-49030-13L

Unavailable

8

NO DESCRIPTION AVAILABLE | MODEL Z; Includes Item(s) 9 This part replaces 53100-49400-10U.

53110-49030-13L

Unavailable

9

TAPE | MODEL Z

68150-49400-764

Unavailable

10

NO DESCRIPTION AVAILABLE | MODEL D This part replaces 53100-45730-019.

53110-49030-13L

Unavailable

10

FENDER, FRONT (BLUE) | MODEL D; Includes Item(s) 11

53100-45730-15W

Unavailable

11

TAPE | MODEL D

68150-45710-764

Unavailable

12

PLUG, DRAIN This part replaces 01107-08168.

01500-0816B

$2.50

13

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

14

GUIDE, METER CABLE This part replaces 58621-21203.

58621-21204

$6.68
