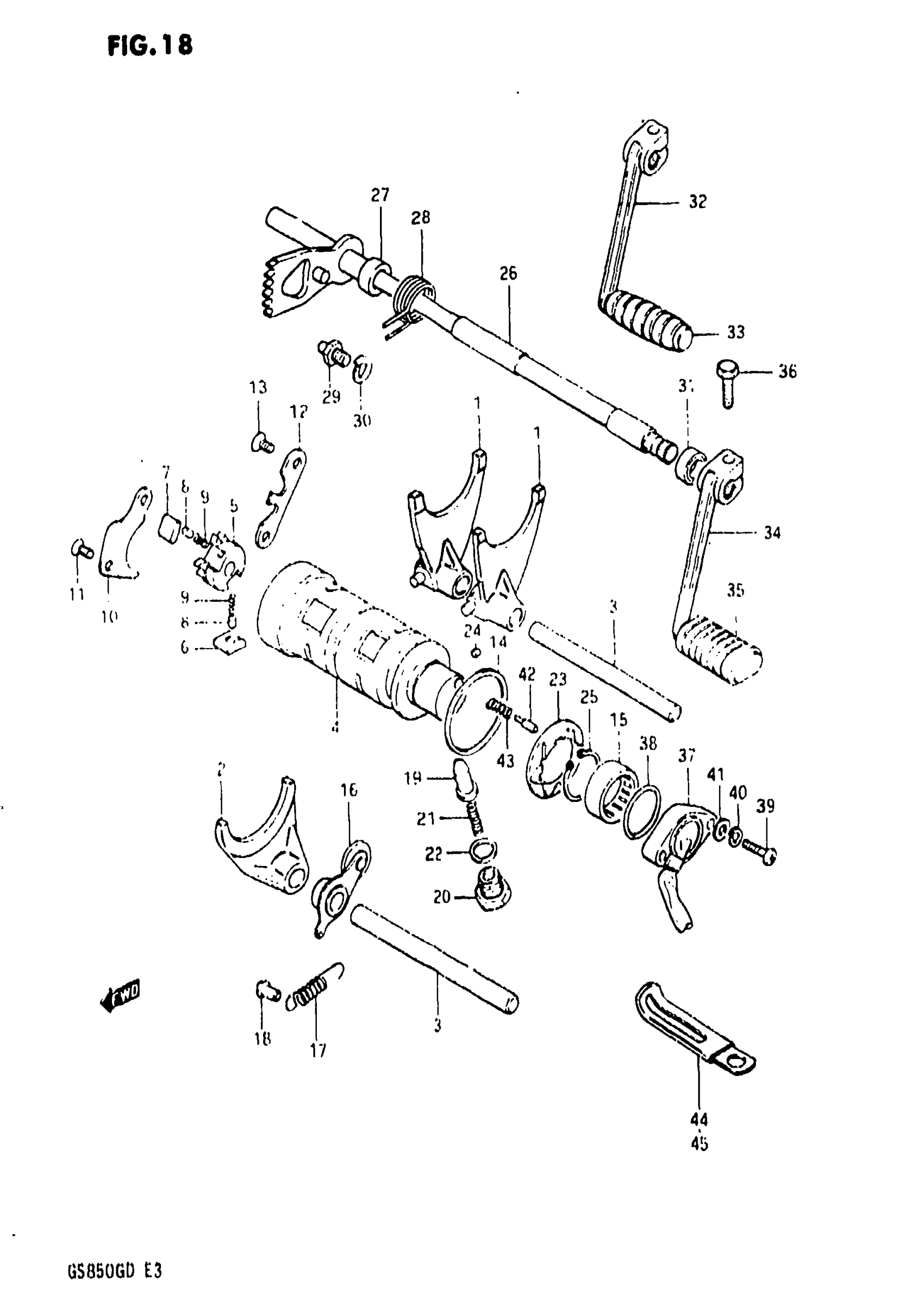

Suzuki GS850G (1983) GEAR SHIFTING Diagram

#

Description
Price

1

FORK, DRIVEN GEAR SHIFTING

25211-49200

$87.25

2

FORK, DRIVE GEAR SHIFTING

25231-45100

Unavailable

3

SHAFT, GEAR SHIFT FORK NO.1 This part replaces 25411-31000.

25411-18900

$23.07

4

CAM, GEAR SHIFTING

25310-45101

Unavailable

5

GEAR, GEAR SHIFT CAM DRIVEN This part replaces 25322-11000.

25322-31310

$26.93

6

PAWL, GEAR SHIFT NO.1 This part replaces 25323-11000.

25323-34201

$7.22

7

PAWL, GEAR SHIFT NO.2 This part replaces 25324-11000.

25324-34201

$7.22

8

PIN

09261-05003

$1.54

9

SPRING

09440-04003

$1.54

10

LIFTER, PAWL

25331-11001

$6.38

11

SCREW This part replaces 02122-06128.

02122-06127

$1.84

12

GUIDE, CAM

25341-18000

Unavailable

13

SCREW This part replaces 02122-06128.

02122-06127

$1.84

14

WASHER

09160-40001

Unavailable

15

BEARING

09263-25018

$21.39

16

STOPPER, CAM

25350-45100

Unavailable

17

SPRING

09443-09006

Unavailable

18

PIN This part replaces 09220-04001.

09223-04001

$1.68

19

STOPPER, GEAR SHIFT CAM NO.2

25351-30010

$11.95

20

HOLDER, STOPPER

25354-30000

$9.17

21

SPRING

09440-06020

$1.79

22

GASKET

09168-14004

$1.83

23

PLATE, GEAR SHIFT CAM STOPPER

25381-45400

$20.45

24

PIN This part replaces 06211-04063.

04221-04069

$2.12

25

CIRCLIP, REAR FINAL DRIVE This part replaces 08331-31258.

08331-31256

$1.49

26

SHAFT, GEAR SHIFTING

25510-45111

Unavailable

27

SPACER

09180-12090

Unavailable

28

SPRING

09444-26017

$4.60

29

STOPPER, ARM This part replaces 25671-01000.

25671-01011

$4.48

30

.LOCK WASHER This part replaces 09162-08005.

08321-01087

$2.13

31

OIL SEAL (12X22X9) This part replaces 09285-12002.

09285-12006

$6.32

32

LEVER ASSY, GEAR SHIFTING | MODEL Z This part replaces 25600-45110.

25600-45130

Unavailable

33

.RUBBER,GEAR SHIFT PEDAL | MODEL Z This part replaces 25652-16500.

25652-16510

$3.74

34

LEVER ASSY, GEAR SHIFTING | MODEL D This part replaces 25600-45120.

25600-45130

Unavailable

35

COVER | MODEL D

25652-49300

$5.07

36

BOLT, REAR This part replaces 01107-08208.

01500-08207

$2.53

37

BODY, SWITCH

37720-45100

$101.35

38

O RING (D:2.4,ID:26.2) This part replaces 09280-26003.

09280-26005

$2.30

39

SCREW This part replaces 02112-05208.

02112-05207

$1.97

40

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

41

WASHER This part replaces 08322-21058.

08322-01057

$2.13

42

CONTACT, SWITCH

09209-05011

$2.20

43

SPRING

09440-04010

$1.54

44

CLAMP This part replaces 09404-06401.

09404-06039

$1.74

45

CLAMP This part replaces 09404-08401.

09404-08420

$3.16
