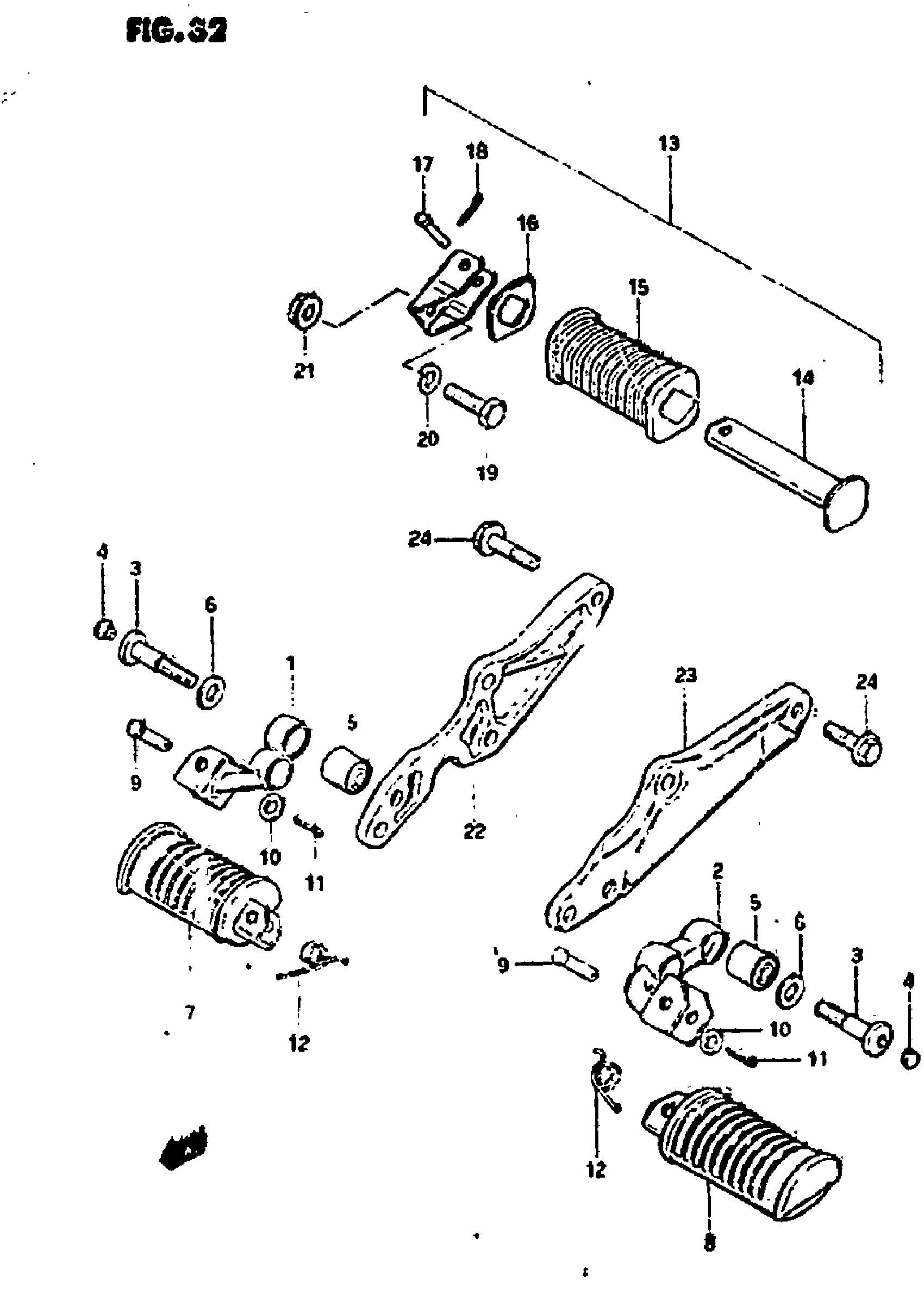

Suzuki GS850G (1983) FOOTREST (MODEL Z) Diagram

#

Description
Price

1

BAR, FOOTREST RH

43510-49401

Unavailable

2

BAR, FOOTREST LH

43520-49401

Unavailable

3

BOLT

09106-10010

Unavailable

4

CAP

43575-34500

$1.72

5

BUSHING

09319-10008

$7.40

6

WASHER This part replaces 09160-10058.

09160-10005

$1.87

7

RUBBER,PILLION This part replaces 43550-37301.

43550-37310

$25.47

8

FOOTREST LH This part replaces 43560-37301.

43560-37310

$32.98

9

PIN

09200-08002

$2.05

10

WASHER This part replaces 08322-11088.

08322-01087

$2.13

11

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49

12

SPRING

09448-14012

$3.04

13

FOOTREST, PILLION RH

43600-49201

Unavailable

13

FOOTREST, PILLION LH | Includes Item(s) 14 - 18

43700-49201

Unavailable

14

BAR, PILLION RH

43610-49201

Unavailable

14

BAR, PILLION LH

43620-49201

Unavailable

15

RUBBER

43612-49201

Unavailable

16

WASHER This part replaces 43631-49201.

43631-45001

Unavailable

17

PIN

09200-06010

$1.72

18

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

19

BOLT, HANDLE HOLDER This part replaces 01107-10358.

01500-1035B

$3.72

20

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

21

NUT, WHEEL SET This part replaces 08316-16108.

08316-10107

$2.39

22

BRACKET, MUFFLER RH

43811-49400

Unavailable

23

BRACKET, MUFFLER LH

43821-49400

Unavailable

24

BOLT (10X20) This part replaces 01517-10258.

01550-1025A

$3.05
