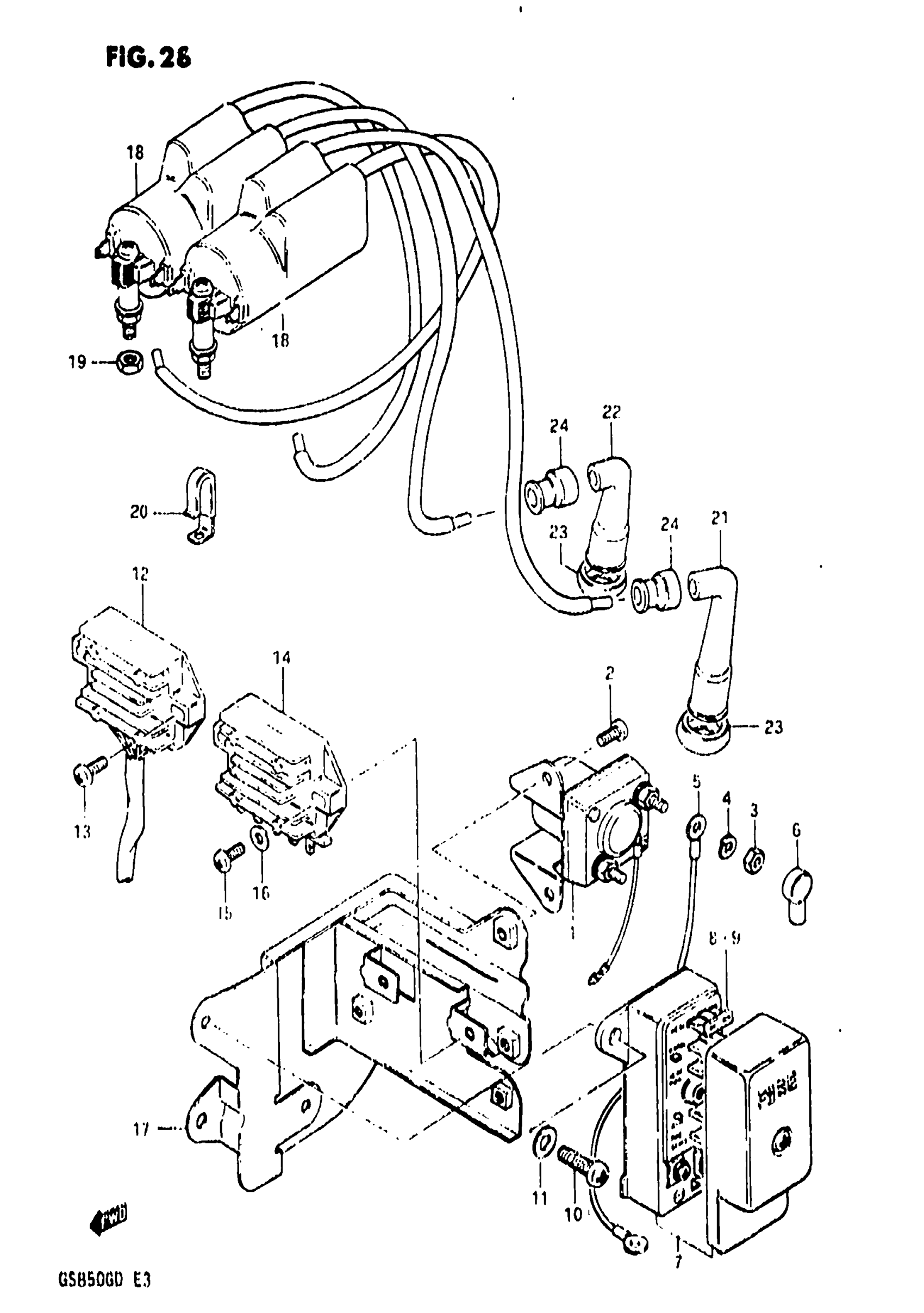

Suzuki GS850G (1983) ELECTRICAL Diagram

#

Description
Price

1

RELAY ASSY,STAR This part replaces 31800-37020.

31800-37021

$71.42

2

SCREW This part replaces 02112-06108.

02112-06107

$1.49

3

.NUT This part replaces 08310-22068.

08310-00067

$2.13

4

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

5

LEAD WIRE, STARTING MOTOR | MODEL Z This part replaces 33850-34301.

33850-48B00

Unavailable

5

WIRE, STARTING LEAD | MODEL D This part replaces 33850-49410.

33850-00A01

Unavailable

6

CAP, STARTER MOTOR This part replaces 31861-35100.

31861-48B10

$6.55

6

CAP, TERMINAL | HAVE SLIT

31861-49400

Unavailable

7

BOX ASSY,FUSE | Includes Item(s) 8 - 9 This part replaces 36740-49400.

36740-45D00

Unavailable

8

FUSE (10A)

09481-10101

$2.07

9

FUSE (15A)

09481-15101

$2.53

10

SCREW This part replaces 02112-06128.

02112-06127

$1.84

11

WASHER This part replaces 08322-21068.

08322-01067

$2.13

12

RECTIFIER COMP | MODEL Z This part replaces 32800-45220.

32800-471V0

Unavailable

13

SCREW This part replaces 02112-06128.

02112-06127

$1.84

14

RECTIFIER ASSY | MODEL D This part replaces 32800-44130.

32800-33401

Unavailable

15

SCREW This part replaces 02112-06208.

02112-06207

$1.78

16

WASHER This part replaces 08322-21068.

08322-01067

$2.13

17

PLATE, ELECTRIC PARTS HOLDER

47410-45120

Unavailable

18

COIL ASSY, IGNI This part replaces 33410-34210.

33410-31311

$161.13

19

.NUT This part replaces 08310-11068.

08310-00067

$2.13

20

CLAMP This part replaces 09403-06307.

09403-06329

$2.32

21

CAP, SPARK PLUG (L)

33510-45010

$24.99

22

CAP, SPARK PLUG (S)

33510-43010

$24.99

23

SEAL, SPARK PLUG

33541-69010

$4.37

24

SEAL,HIGH TENSION CORD (SIDE) This part replaces 33542-98000.

33542-38B00

$4.34
