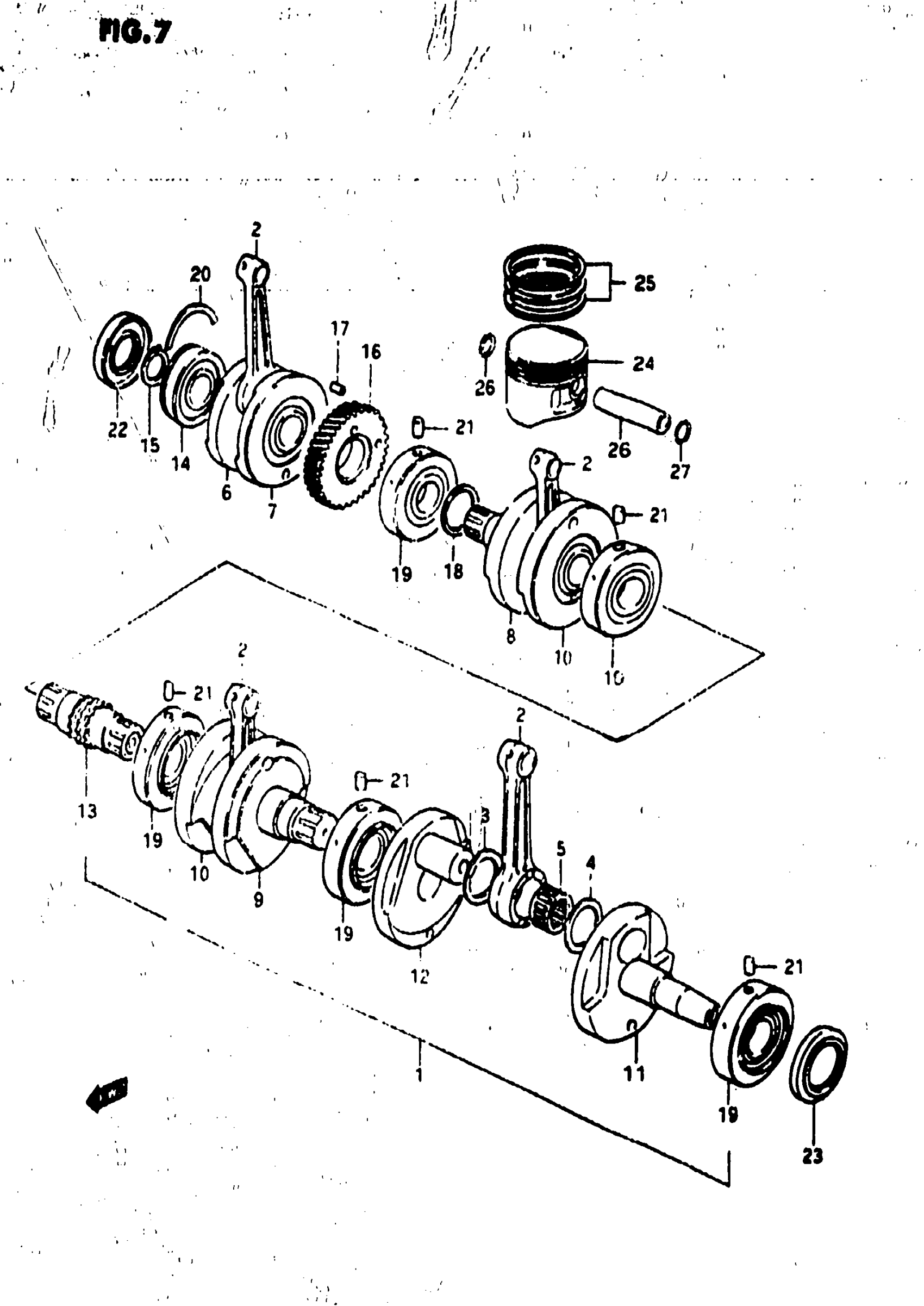

Suzuki GS850G (1983) CRANKSHAFT Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 19 This part replaces 12200-45102.

12200-45104

Unavailable

2

ROD, CONNECTING

12161-45101

Unavailable

3

WASHER

09160-29008

Unavailable

4

WASHER

09160-29009

Unavailable

5

BEARING

09263-29002

Unavailable

6

CRANKSHAFT, RH

12220-45100

Unavailable

7

WEB, CRANKSHAFT RH

12231-45100

Unavailable

8

CRANKSHAFT, MIDDLE RH

12241-45100

Unavailable

9

CRANKSHAFT, MIDDLE LH

12271-45100

Unavailable

10

WEB, CRANKSHAFT MIDDLE

12250-45100

Unavailable

11

CRANKSHAFT, LH

12261-45101

Unavailable

12

WEB, CRANKSHAFT LH

12290-45100

Unavailable

13

SHAFT, TIMING CHAIN DRIVE | NT:15

12281-45100

Unavailable

14

BEARING, RH

09262-30033

Unavailable

15

CIRCLIP This part replaces 08331-11308.

08331-31309

$2.57

16

GEAR, PRIMARY DRIVE (NT:49)

21111-45100

Unavailable

17

PIN

04221-08129

$1.99

18

WASHER

08211-28403

Unavailable

19

BEARING This part replaces 09264-32006.

09264-32009

$201.55

20

C RING, BEARING RH

09390-72004

Unavailable

21

PIN

04221-07129

$1.86

22

OIL SEAL, RH

09283-30021

$19.20

23

OIL SEAL, STARTER CLUTCH GEAR This part replaces 09289-48001.

09289-48002

$10.77

24

PISTON (STD)

12111-45110

Unavailable

24

PISTON SET | OPT This part replaces 12111-45110-050.

12103-45830-050

Unavailable

24

PISTON (0S:1.0) | OPT

12111-45110-100

Unavailable

25

RING SET, PISTO This part replaces 12140-45120.

12140-45121

Unavailable

25

NO DESCRIPTION AVAILABLE | OPT This part replaces 12140-45120-050.

12140-45121-050

Unavailable

25

PISTON RING SET (05:1.0) | OPT

12140-49001

Unavailable

26

PIN, PISTON

12151-29001

$13.92

27

SNAP RING This part replaces 09381-16002.

09381-16001

$1.67
