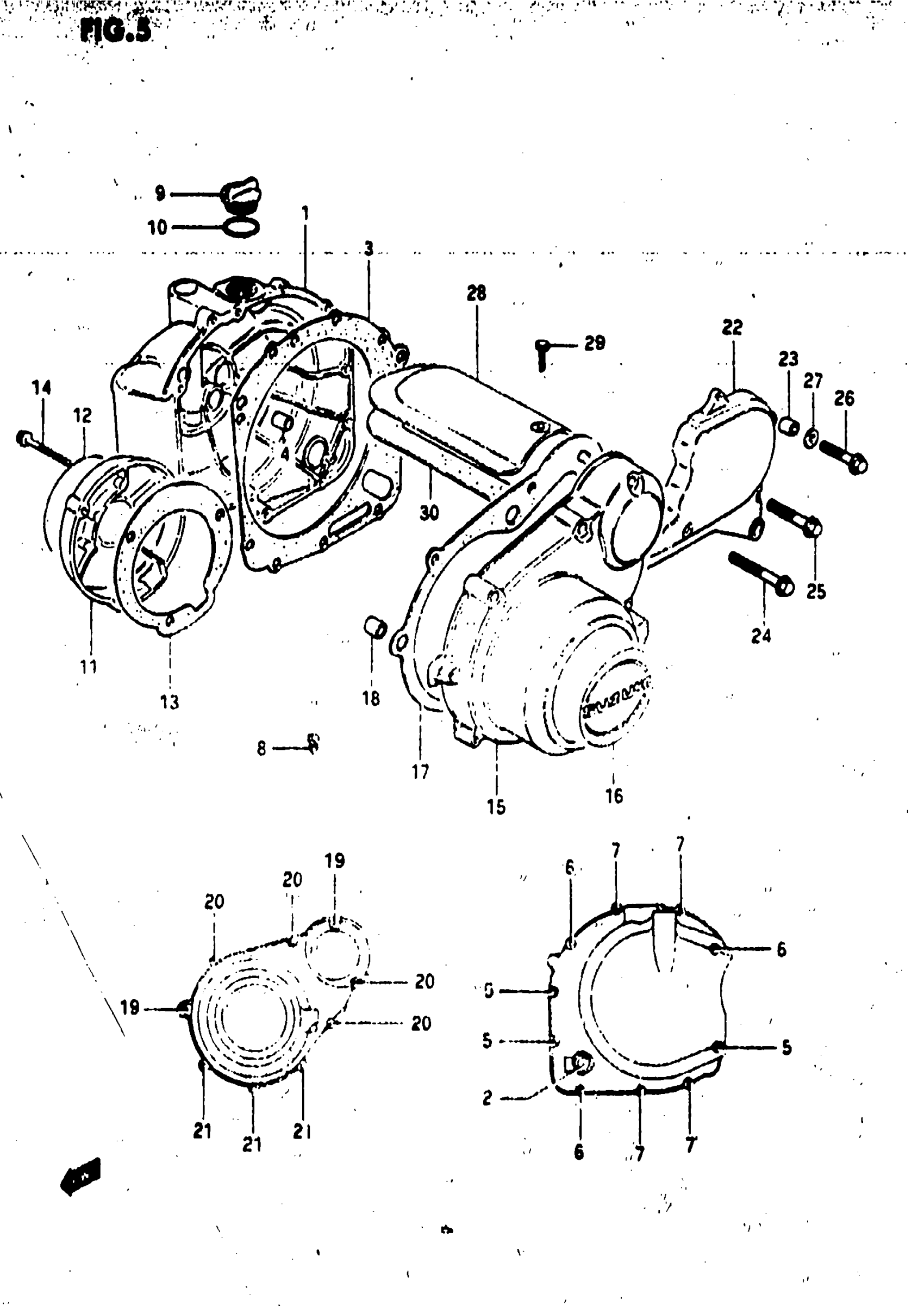

Suzuki GS850G (1983) CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CLUTCH | Includes Item(s) 2

11340-49101

Unavailable

2

.LENS, OIL LEVEL CHECK

11971-45010

$16.76

3

GASKET,CLUTCH C This part replaces 11482-49100.

11482-49100-H17

Unavailable

4

PIN

09202-09004

Unavailable

5

BOLT This part replaces 01547-06358.

01547-06357

$2.03

6

BOLT This part replaces 01547-06308.

01547-06307

$2.03

7

BOLT This part replaces 01547-06258.

01547-06257

$2.03

8

JET, OIL GALLERY

09493-22009

Unavailable

9

CAP, OIL FILLER This part replaces 09259-30001.

09200-30810

$10.15

10

O RING

09280-32005

$1.99

11

COVER, CONTACT BREAKER

11381-49002

Unavailable

12

EMBLEM

68235-34200

Unavailable

13

GASKET

11491-45000

Unavailable

14

BOLT This part replaces 01547-05308.

01547-05307

$2.30

15

COVER, GENERATOR

11351-45001

Unavailable

16

EMBLEM

68233-34200

Unavailable

17

GASKET,MAG COVE This part replaces 11483-45000.

11483-45000-H17

$11.75

18

PIN This part replaces 09206-13001.

04211-13189

$2.19

19

BOLT This part replaces 01547-06458.

01547-06457

$2.32

20

BOLT This part replaces 01547-06408.

01547-06407

$2.32

21

BOLT This part replaces 01547-06358.

01547-06357

$2.03

22

COVER, SECONDARY DRIVE UNIT This part replaces 11360-45102.

11360-49101

Unavailable

23

PIN

04211-09129

$1.65

24

BOLT This part replaces 01547-06308.

01547-06307

$2.03

25

BOLT This part replaces 01547-06208.

01547-06207

$2.01

26

BOLT This part replaces 01547-06258.

01547-06257

$2.03

27

WASHER This part replaces 08322-21068.

08322-01067

$2.13

28

COVER, STARTER MOTOR | MODEL Z

11382-49002

$46.38

28

COVER, STARTER MOTOR | MODEL D

11382-45410

Unavailable

29

BOLT This part replaces 01547-05088.

01547-05087

$1.72

30

GASKET MOTOR CO This part replaces 11493-45001.

11493-45002

Unavailable
