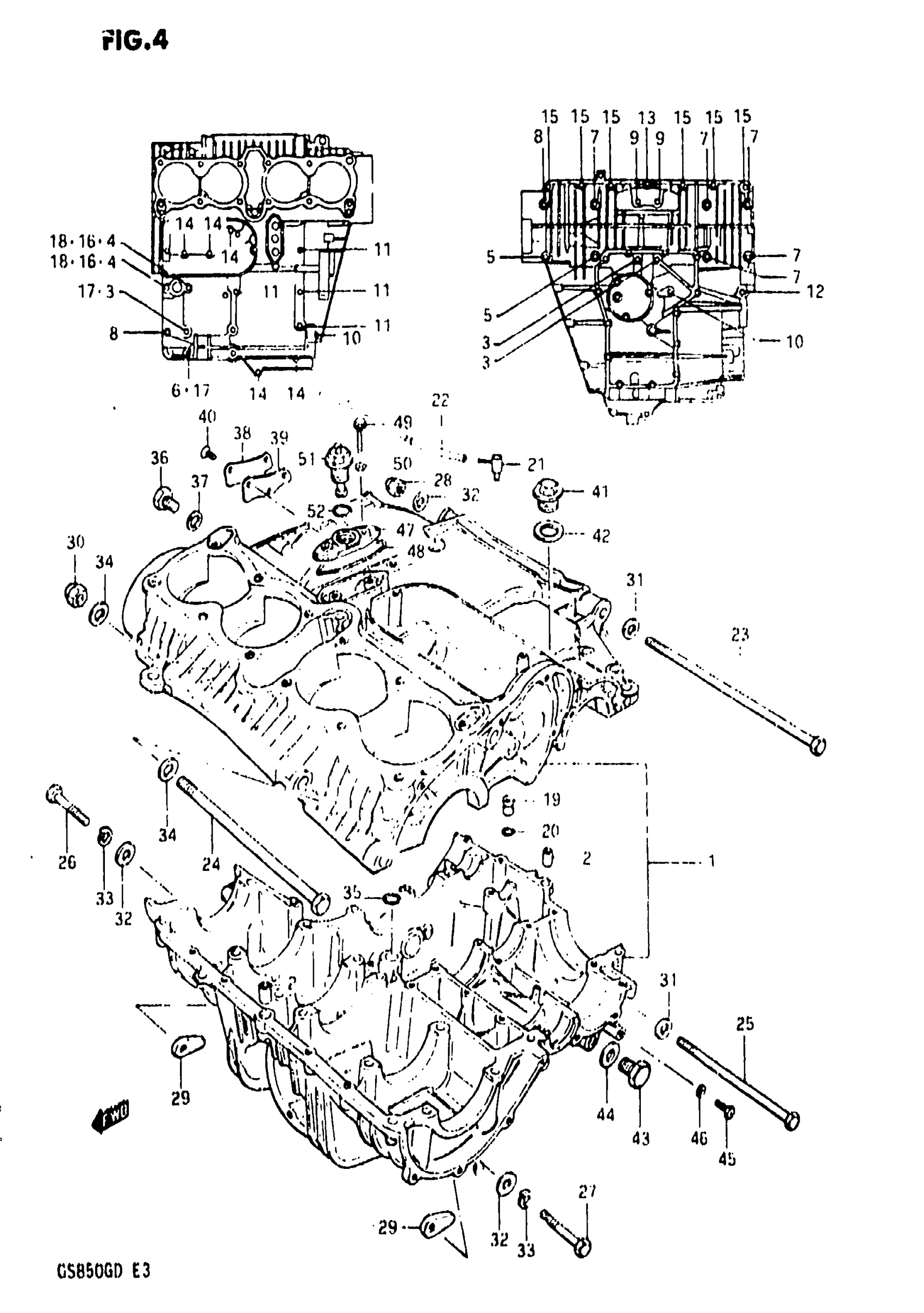

Suzuki GS850G (1983) CRANKCASE Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL Z This part replaces 11300-49841.

11300-49843

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL D; Includes Item(s) 2 - 21 This part replaces 11300-49860.

11300-49861

Unavailable

2

PIN This part replaces 09206-13001.

04211-13189

$2.19

3

BOLT (8X125) | MODEL Z This part replaces 09103-08020.

09103-08106

Unavailable

3

BOLT (8X125) | MODEL D This part replaces 09103-08094.

09103-08182

$5.72

4

BOLT (8x110) | MODEL Z

09103-08046

Unavailable

4

BOLT (8x110) | MODEL D

09103-08092

Unavailable

5

BOLT (8X100) This part replaces 09103-08009.

09103-08070

$5.57

6

BOLT (8X105) | MODEL Z This part replaces 09103-08023.

09103-08097

$3.44

6

BOLT (8X105) | MODEL D This part replaces 09103-08093.

09103-08179

Unavailable

7

BOLT This part replaces 01517-08908.

01550-08907

$5.18

8

BOLT This part replaces 01517-08658.

01550-08657

$4.68

9

BOLT This part replaces 01517-08608.

01550-08607

$3.76

10

BOLT This part replaces 01517-06908.

01550-06907

$4.60

11

BOLT 6X75 This part replaces 01517-06758.

01550-06757

$3.68

12

BOLT This part replaces 01517-06558.

01550-06557

$3.30

13

BOLT (6X50) This part replaces 01517-06508.

01550-06507

$3.40

14

BOLT (CHROME) This part replaces 01517-06458.

01550-06457

$2.69

15

BOLT This part replaces 01517-06358.

01550-06357

$2.77

16

NUT This part replaces 08313-11088.

08313-10087

$2.28

17

NUT (CHROME) | MODEL Z This part replaces 08316-16088.

08316-10087

$2.26

17

NUT | MODEL D This part replaces 08316-16085.

08316-1008B

$2.66

18

GASKET (8.2X14X1) This part replaces 09168-08008.

09168-08016

$1.65

19

NOZZLE, OIL GALLERY

09364-05005

$3.73

20

O RING

09280-03003

$1.91

21

PLUG, BEVEL GEAR BREATHER

24821-45100

$9.00

22

HOSE(2X5X600) This part replaces 09343-02009.

09352-20504-600

$6.70

23

NO DESCRIPTION AVAILABLE This part replaces 09100-10074.

09100-10074-XC0

Unavailable

24

SHAFT,RR SWNG P This part replaces 61211-39000.

61211-39002

$25.52

25

BOLT (10x165)

09100-10078

$12.70

26

BOLT This part replaces 01107-10608.

01500-1060A

$4.41

27

BOLT This part replaces 01107-10508.

01500-1050A

$3.78

28

NUT

09159-10011

$3.23

29

NUT

09159-10020

$5.18

30

NUT This part replaces 08319-21128.

08319-2112A

$3.76

31

WASHER

09160-10005

$1.87

32

WASHER This part replaces 08322-11108.

08322-01107

$2.15

33

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

34

WASHER This part replaces 08322-11128.

08322-01127

$1.84

35

O RING

09280-13001

$2.72

36

PLUG This part replaces 09247-14012.

09247-14026

$3.76

37

GASKET

09168-14004

$1.83

38

CAP, OIL GALLERY

11394-45000

Unavailable

39

GASKET,OIL GALL This part replaces 11497-45000.

11497-45000-H17

Unavailable

40

SCREW This part replaces 02122-06168.

02122-06167

$1.49

41

PLUG This part replaces 09247-20002.

09248-20003

$5.80

42

GASKET 20.1X27X This part replaces 09168-20004.

09168-20003

$2.97

43

PLUG, OIL DRAIN This part replaces 09247-14014.

09247-14036

$6.17

44

GASKET

09168-14004

$1.83

45

SCREW (6X10) This part replaces 09128-06004.

09128-06044

$1.49

46

GASKET (5.8X13X1.2) This part replaces 09168-06009.

09168-06023

$2.35

47

HOUSING, OIL PRESSURE SWITCH | MODEL Z

16445-45000

Unavailable

47

HOUSING, OIL PRESSURE SWITCH | MODEL D This part replaces 16445-45010.

16445-45000

Unavailable

48

O RING

16448-45000

$8.89

49

BOLT This part replaces 01517-06258.

01550-06257

$2.30

50

GASKET (5.8X13X1.2) This part replaces 09168-06009.

09168-06023

$2.35

51

SWITCH ASSY,OIL This part replaces 37820-45050.

37820-45061

$31.65

52

O RING

09280-19001

$1.49
