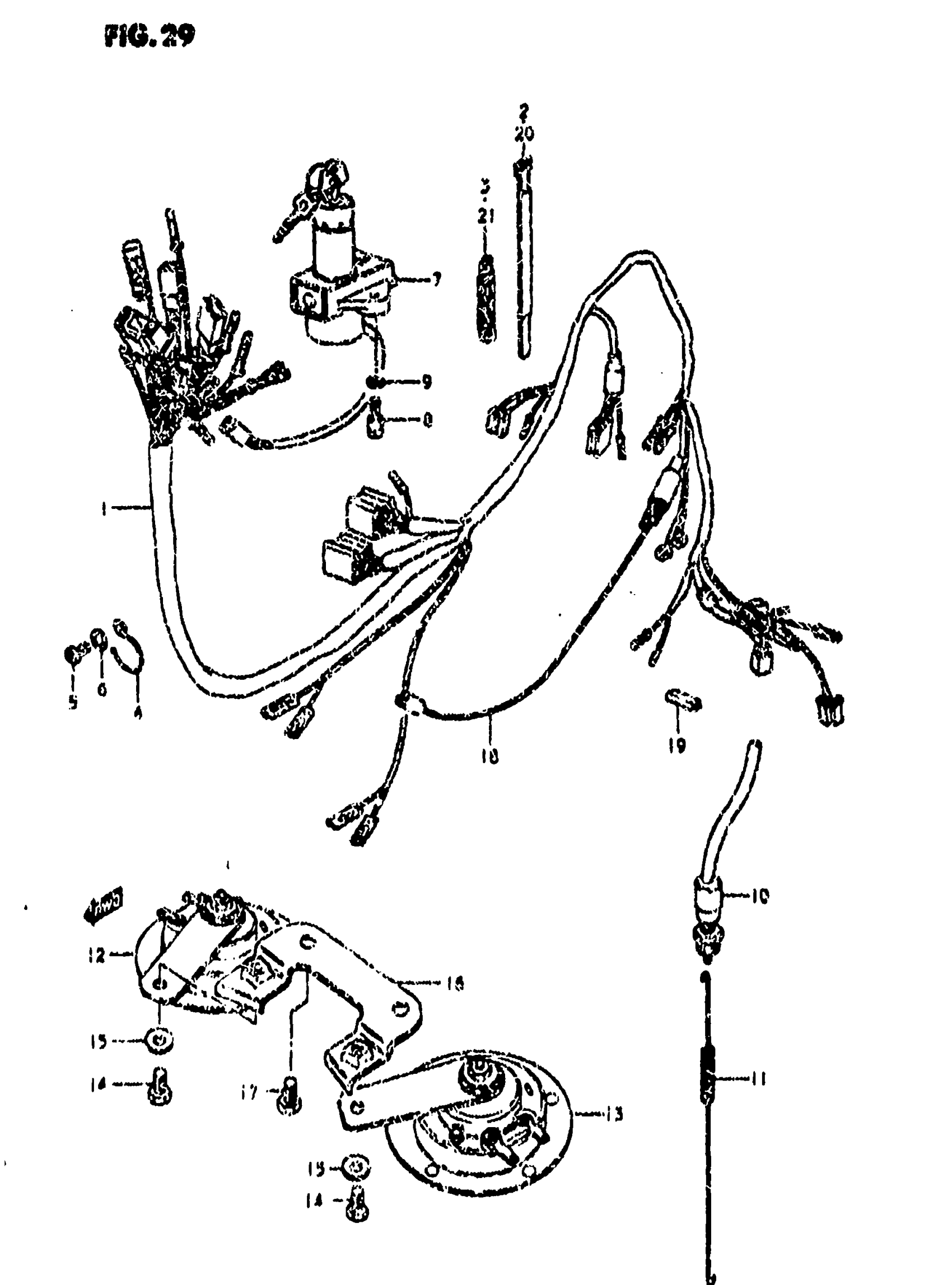

Suzuki GS850G (1981) WIRING HARNESS Diagram

NO DESCRIPTION AVAILABLE | MODEL T This part replaces 36610-45130.

36610-45132

Unavailable

NO DESCRIPTION AVAILABLE | MODEL X This part replaces 36610-45131.

36610-45132

Unavailable

CLAMP This part replaces 09407-18301.

09407-18302

$2.28

CLAMP(L:80) This part replaces 09404-06414.

09404-06036

$1.74

CLIP, WIRING HARNESS This part replaces 36619-44000.

36619-44002

Unavailable

SCREW This part replaces 02112-06128.

02112-06127

$1.84

WASHER This part replaces 08322-21068.

08322-01067

$2.13

NO DESCRIPTION AVAILABLE | Includes Item(s) 8 - 9 This part replaces 37100-45100.

37100-45101

Unavailable

BOLT This part replaces 37152-47010.

07130-0616B

$2.39

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

SWITCH, REAR BRAKE LAMP | MODEL T This part replaces 37740-04570.

37740-48071

$19.18

SWITCH, REAR BRAKE LAMP | MODEL X This part replaces 37740-04571.

37740-48071

$19.18

SPRING This part replaces 09443-06018.

09443-06018-XC0

Unavailable

HORN ASSY | MODEL T This part replaces 38502-47000.

38502-49001

Unavailable

NO DESCRIPTION AVAILABLE | MODEL X This part replaces 38502-49030.

38502-49031

Unavailable

NO DESCRIPTION AVAILABLE | MODEL T This part replaces 38501-47000.

38501-47001

Unavailable

NO DESCRIPTION AVAILABLE | MODEL X This part replaces 38501-49030.

38501-49031

Unavailable

PLUG, DRAIN This part replaces 01107-08168.

01500-0816B

$2.50

WASHER This part replaces 08322-11088.

08322-01087

$2.13

BRACKET, HORN | MODEL T

38590-45101

Unavailable

BRACKET, HORN | MODEL X

38590-49011

Unavailable

BOLT This part replaces 01107-08128.

01500-08127

$2.62

LEAD WIRE, PRESSURE SWITCH This part replaces 36853-45000.

36853-45001

Unavailable

PROTECTOR, WIRING HARNESS

36611-38000

Unavailable

CLAMP

09407-12402

$3.04

CLAMP(L:80) This part replaces 09404-06415.

09404-06036

$1.74
