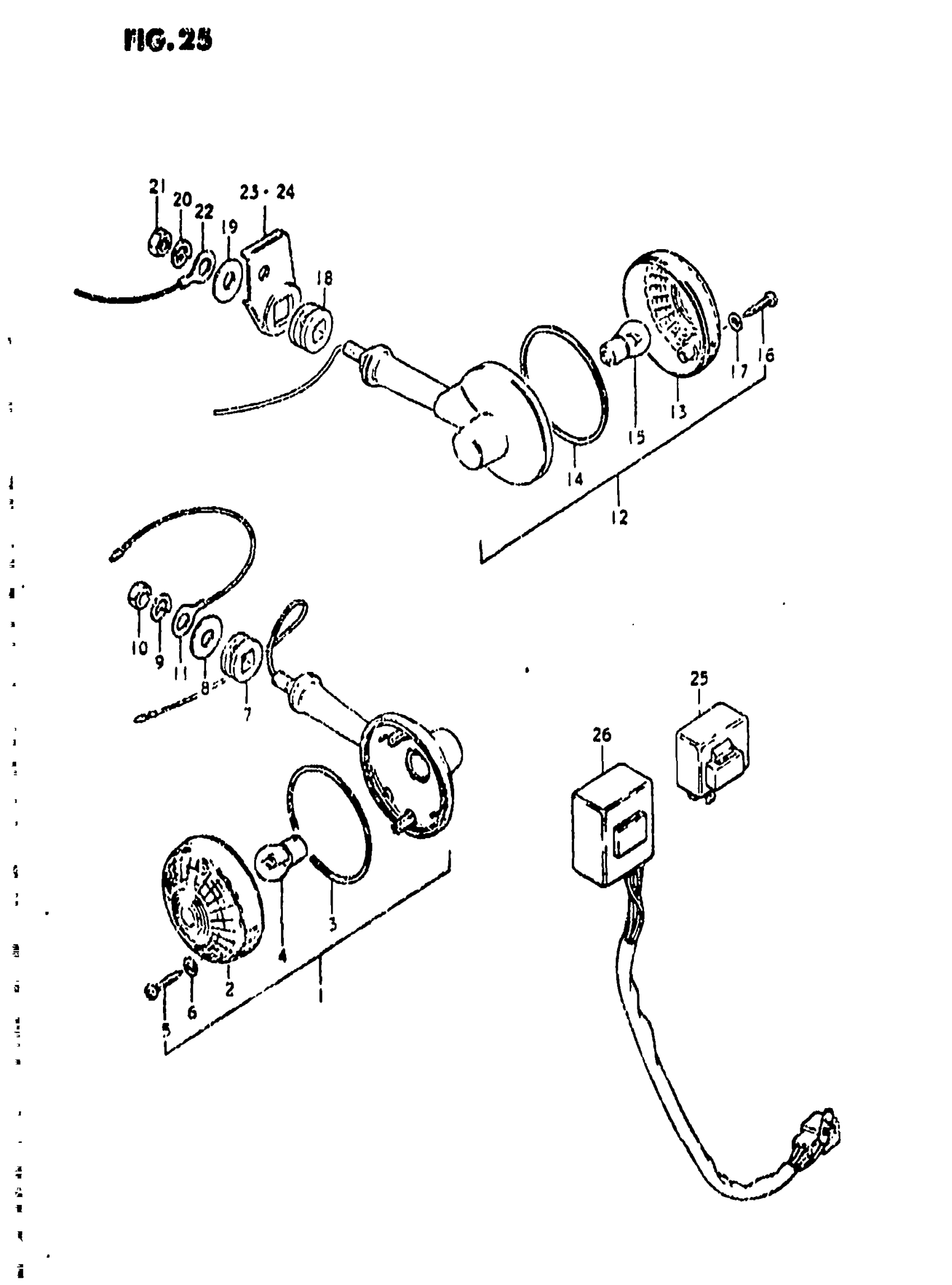

Suzuki GS850G (1981) TURN SIGNAL LAMP (GS850GT) Diagram

#

Description
Price

1

LAMP TURN SIGNA | Includes Item(s) 2 - 6 This part replaces 35601-49030.

35603-49121-999

Unavailable

2

LENS

35612-45010

Unavailable

3

GASKET

35613-45010

Unavailable

4

BULB (12V,23W)

09471-12006

$3.98

5

SCREW This part replaces 35625-49030.

03211-04306

$1.78

6

GASKET

35627-43010

$2.28

7

RR TURN SIG CUS This part replaces 35690-32200.

35690-32201

$6.37

8

WASHER, MUFFLER SUPPORT This part replaces 09160-08001.

09160-08503

$2.50

9

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

10

NUT This part replaces 08310-12088.

08310-00087

$2.13

11

LEAD WIRE, EARTH

36851-45100

$4.52

12

LAMP TURN SIGNA | Includes Item(s) 13 - 17 This part replaces 35601-49030.

35603-49121-999

Unavailable

13

LENS

35612-45010

Unavailable

14

GASKET

35613-45010

Unavailable

15

BULB (12V,23W)

09471-12006

$3.98

16

SCREW This part replaces 35625-49030.

03211-04306

$1.78

17

GASKET

35627-43010

$2.28

18

RR TURN SIG CUS This part replaces 35690-32200.

35690-32201

$6.37

19

SPACER (8.5X12X11) This part replaces 09180-08001.

09180-08189

$2.58

20

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

21

NUT This part replaces 08310-12088.

08310-00087

$2.13

22

LEAD WIRE, EARTH

36851-45100

$4.52

23

BRACKET, RH

41580-45000-019

Unavailable

24

BRACKET, LH

41590-45000-019

Unavailable

25

RELAY, TURN SIGNAL This part replaces 38610-49230.

38610-49231

Unavailable

26

UNIT,TURN SIG C This part replaces 38830-49200.

38830-49X00

Unavailable
