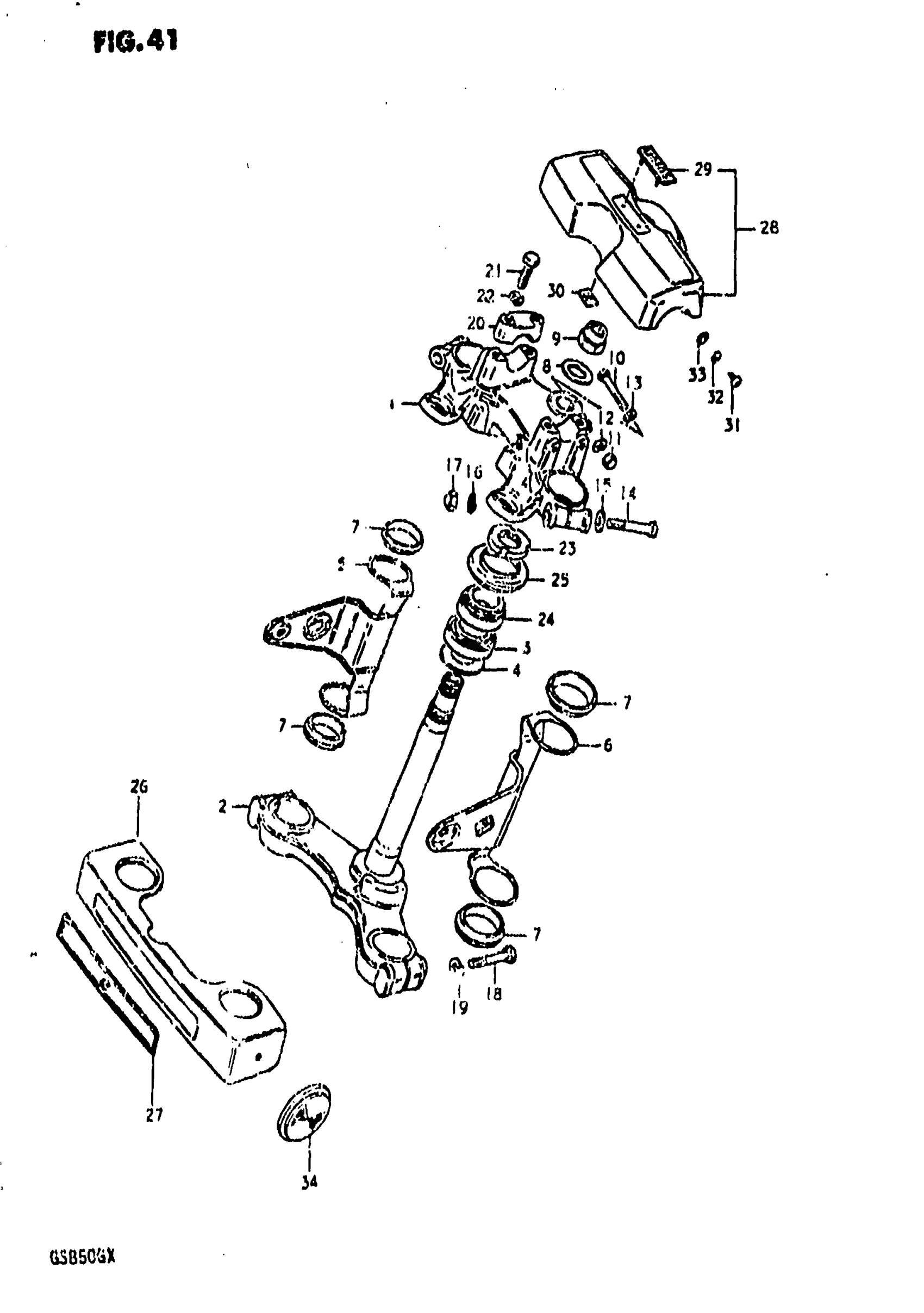

Suzuki GS850G (1981) STEERING STEM Diagram

#

Description
Price

1

STEERING STEM HEAD

51311-49000-291

Unavailable

2

NO DESCRIPTION AVAILABLE | Includes Item(s) 3 - 4 This part replaces 51410-45101-291.

51410-45141-291

Unavailable

3

RT 30X55X17 BEA This part replaces 09265-30005.

09265-30034

$57.05

4

SHIM, 30X40X1.5 This part replaces 08211-30402.

09181-30184

$3.07

5

NO DESCRIPTION AVAILABLE This part replaces 51530-45100-291.

51500-45810-291

Unavailable

6

BRACKET, HEADLAMP LH

51540-45100-291

Unavailable

7

CUSHION, BRACKET This part replaces 51553-49000.

51553-34300

$4.52

8

WASHER

51356-31700

Unavailable

9

NUT

51353-45000

$9.69

10

BOLT This part replaces 01107-08508.

01500-08507

$3.05

11

NUT This part replaces 08313-11088.

08313-10087

$2.28

12

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

13

WASHER This part replaces 08322-21088.

08322-01087

$2.13

14

BOLT This part replaces 01107-10558.

01500-1055A

$3.55

15

WASHER This part replaces 08322-21108.

08322-01107

$2.15

16

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

17

NUT This part replaces 08313-11108.

08313-10107

$2.50

18

BOLT This part replaces 01107-08358.

01500-0835B

$3.04

19

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

20

CLAMP, HANDLEBAR UPPER

56211-29320-291

$15.51

21

BOLT This part replaces 01107-08356.

01500-0835B

$3.04

22

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

23

NU STEERING STEM

51631-28000

$17.37

24

BEAKING, UPPER

09265-25008

Unavailable

25

SEAL, STEERING DUST This part replaces 51643-49001.

51643-49002

$12.32

26

COVER FRONT FOR This part replaces 51871-45100.

51871-45101

Unavailable

27

EMBLEM

68211-45100

Unavailable

28

PAD, HANDLEBAR | Includes Item(s) 29 - 30

56170-45100

Unavailable

29

EMBLEM

68281-45100

$16.87

30

NUT

09148-03002

$2.15

31

SCREW This part replaces 02112-05108.

02112-05107

$1.49

32

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

33

WASHER This part replaces 08322-21058.

08322-01057

$2.13

34

REFLEX REFLECTOR, SIDE

35950-49080

$17.24
