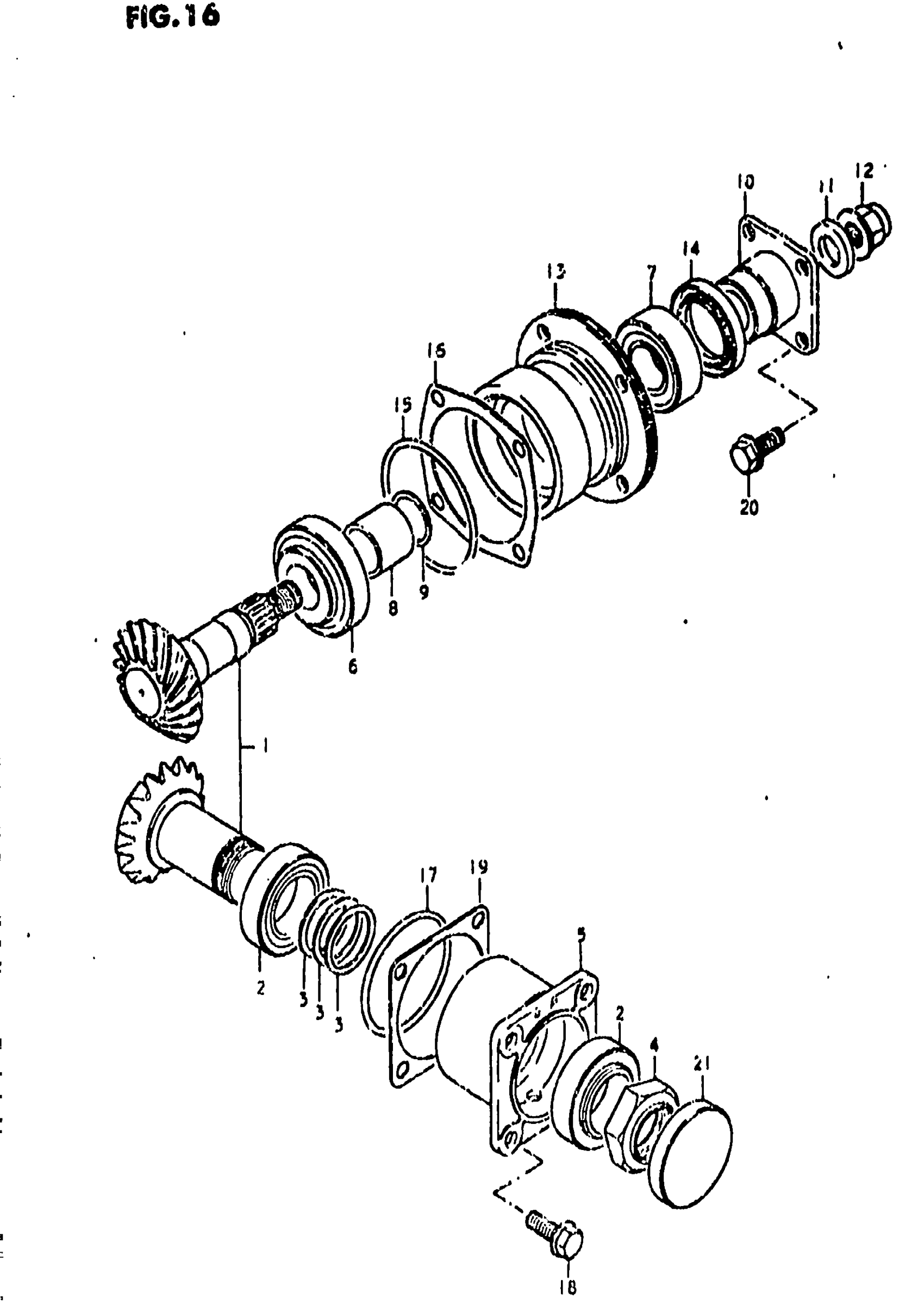

Suzuki GS850G (1981) SECONDARY DRIVE GEAR Diagram

#

Description
Price

0

NO DESCRIPTION AVAILABLE | MODEL T This part replaces 24900-45820.

24900-45821

Unavailable

0

NO DESCRIPTION AVAILABLE | MODEL X; Includes Item(s) 1 - 14 This part replaces 24900-45830.

24901-45100

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL T, NT:16/17 This part replaces 24900-45810.

24911-45101

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL X, NT:16/17 This part replaces 24900-45811.

24911-45101

Unavailable

2

BLARING

09265-32001

Unavailable

3

SHIM (T:1.60) | (0~3)

09181-32001

Unavailable

3

SHIM (T:1.62) | (0~3)

09181-32002

Unavailable

3

SHIM (T:1.64) | (0~3)

09181-32003

Unavailable

3

SHIM (T:1.66) | (0~3)

09181-32004

Unavailable

3

SHIM (T:1.68) | (0~3)

09181-32005

Unavailable

3

SHIM (T:1.70) | (0~3)

09181-32006

Unavailable

3

SHIM (T:1.80) | (0~3)

09181-32007

Unavailable

3

SHIM (T:1.90) | (0~3)

09181-32008

Unavailable

3

SHIM (T:2.00) | (0~3)

09181-32009

Unavailable

4

NUT

09159-32001

Unavailable

5

HOUSING, DRIVE GEAR

24931-45100

Unavailable

6

BEARING, FRONT

09265-25012

Unavailable

7

BEARING, REAR This part replaces 09265-25011.

09265-25024

$60.80

8

SPACER

09180-25056

Unavailable

9

SHIM (T:1.60) | (0~3)

09181-25006

Unavailable

9

SHIM (T:1.62) | (0~3)

09181-25007

Unavailable

9

SHIM (T:1.64) | (0~3)

09181-25008

Unavailable

9

SHIM (T:1.66) | (0~3)

09181-25009

Unavailable

9

SHIM (T:1.68) | (0~3)

09181-25010

Unavailable

9

SHIM (T:1.70) | (0~3)

09181-25011

Unavailable

9

SHIM (T:1.80) | (0~3)

09181-25012

Unavailable

9

SHIM (T:1.90) | (0~3)

09181-25013

Unavailable

9

SHIM (T:2.00) | (0~3)

09181-25014

Unavailable

10

FLANGE, UNIVERSAL JOINT | MODEL T

24951-45101

Unavailable

10

FLANGE, UNIVERSAL JOINT | MODEL X

24951-49100

Unavailable

11

WASHER

09160-14021

$6.63

12

NUT

09159-14010

$14.12

13

HOUSING, DRIVEN BEVEL GEAR

24941-45101

Unavailable

14

OIL SEAL

09283-35018

Unavailable

15

O RING

09280-70005

$6.23

16

SHIM (T:0.30) | (0~2)

24945-45101

Unavailable

16

SHIM (T:0.35) | (0~2)

24945-45100

Unavailable

16

SHIM (T:0.40) | (0~2)

24945-45102

Unavailable

16

SHIM (T:0.50) | (0~2)

24945-45103

Unavailable

16

SHIM (T:0.60) | (0~2)

24945-45104

Unavailable

17

O RING

09280-63004

$4.75

18

BOLT, REAR LH This part replaces 01517-08208.

01550-08207

$2.69

19

SHIM (T:0.30) | (0~2)

24935-45101

Unavailable

19

SHIM (T:0.35) | (0~2)

24935-45100

Unavailable

19

SHIM (T:0.40) | (0~2)

24935-45102

Unavailable

19

SHIM (T:0.50) | (0~2)

24935-45103

Unavailable

19

SHIM (T:0.60) | (0~2)

24935-45104

Unavailable

20

BOLT This part replaces 01517-08258.

01550-08257

$2.81

21

PLUG

09241-58001

Unavailable
