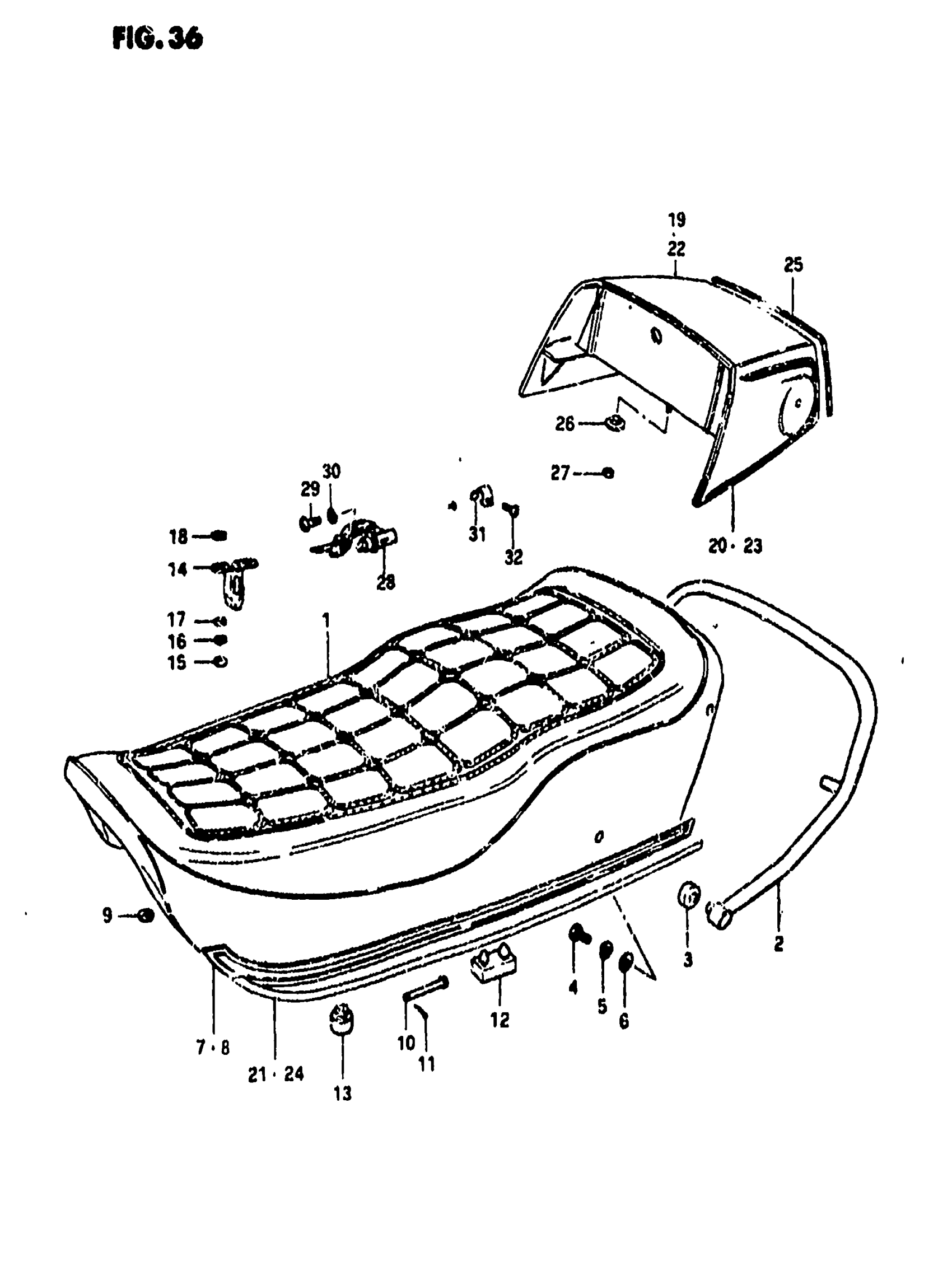

Suzuki GS850G (1981) SEAT (GS850GT) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 9 This part replaces 45100-45100-41G.

45100-45150-48G

Unavailable

2

HANDLE, PILLION RIDER This part replaces 46210-45100.

46210-45101

Unavailable

3

CUSHION

46212-49000

Unavailable

4

BOLT, REAR This part replaces 01107-08208.

01500-08207

$2.53

5

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

6

WASHER This part replaces 08322-21088.

08322-01087

$2.13

7

MOULDING,RH

45191-45100

Unavailable

8

MOULDING, LH

45192-45100

Unavailable

9

NUT

09148-03008

Unavailable

10

PIN

09200-06018

$2.06

11

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

12

CUSHION

09321-08006

$2.90

13

CUSHION

09321-10001

$2.61

14

STRIKER, SEAT LOCK

45213-47000

Unavailable

15

.NUT This part replaces 08310-11068.

08310-00067

$2.13

16

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

17

WASHER This part replaces 08322-21068.

08322-01067

$2.13

18

WASHER (6.5X20X1.2) This part replaces 09160-06027.

09160-06077

$1.91

19

NO DESCRIPTION AVAILABLE | Includes Item(s) 20 This part replaces 45500-45810-08E.

45510-45101

Unavailable

20

TAPE SET

68160-45130-72E

Unavailable

21

TAPE SET, MOULDING (BLACK)

68101-45860-019

Unavailable

22

NO DESCRIPTION AVAILABLE | Includes Item(s) 23 This part replaces 45500-45100-08J.

45510-45101

Unavailable

23

TAPE SET

68160-45130-72E

Unavailable

24

TAPE SET, MOULDING (MAROON)

68101-45860-08J

Unavailable

25

MOULDING,SEAT TALL COVER

45522-45100

Unavailable

26

WASHER

09169-06016

$1.65

27

.NUT This part replaces 08319-21068.

08319-2106A

$1.91

28

SEAT LOCK SET

95700-45813

Unavailable

29

SCREW This part replaces 02112-05128.

02112-05127

$1.97

30

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

31

SPRING,HELMET HOLDER

95722-45000

Unavailable

32

SCREW This part replaces 02112-05088.

02112-05087

$1.49
