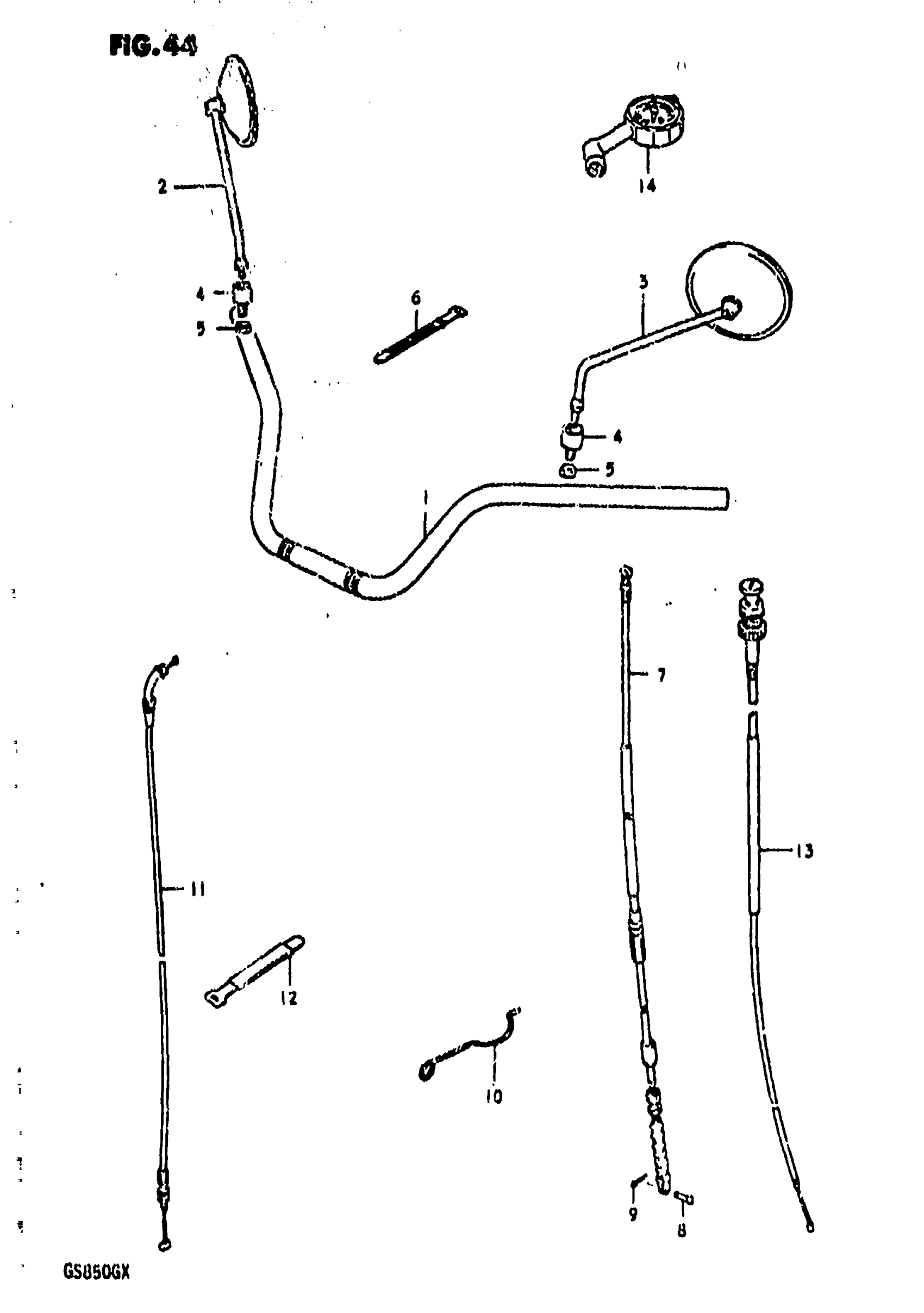

Suzuki GS850G (1981) HANDLEBAR Diagram

#

Description
Price

1

HANDLEBAR This part replaces 56110-45110.

56110-45400

Unavailable

2

MIRROR ASSY,RR This part replaces 56500-45100.

56500-38AB2

$357.02

3

MIRROR ASSY,RR This part replaces 56600-45100.

56500-38AB2

$357.02

4

CUSHION, REAR VIEW MIRROR This part replaces 56700-31001.

56700-45400

$21.90

5

NUT This part replaces 08310-22108.

08310-00107

$2.19

6

BAND (L:120)

09407-12402

$3.04

7

CABLE, CLUTCH

58200-49100

Unavailable

8

PIN

09200-06011

Unavailable

9

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

10

GUIDE, CLUTCH CABLE

58621-45100

Unavailable

11

CABLE, THROTTIE This part replaces 58300-44050.

58300-44201

Unavailable

12

CLAMP This part replaces 09403-00069.

09404-06037

Unavailable

13

CABLE, STARTER

58400-45110

Unavailable

14

GAUGE, AIR PRESSURE

96200-41330

Unavailable
