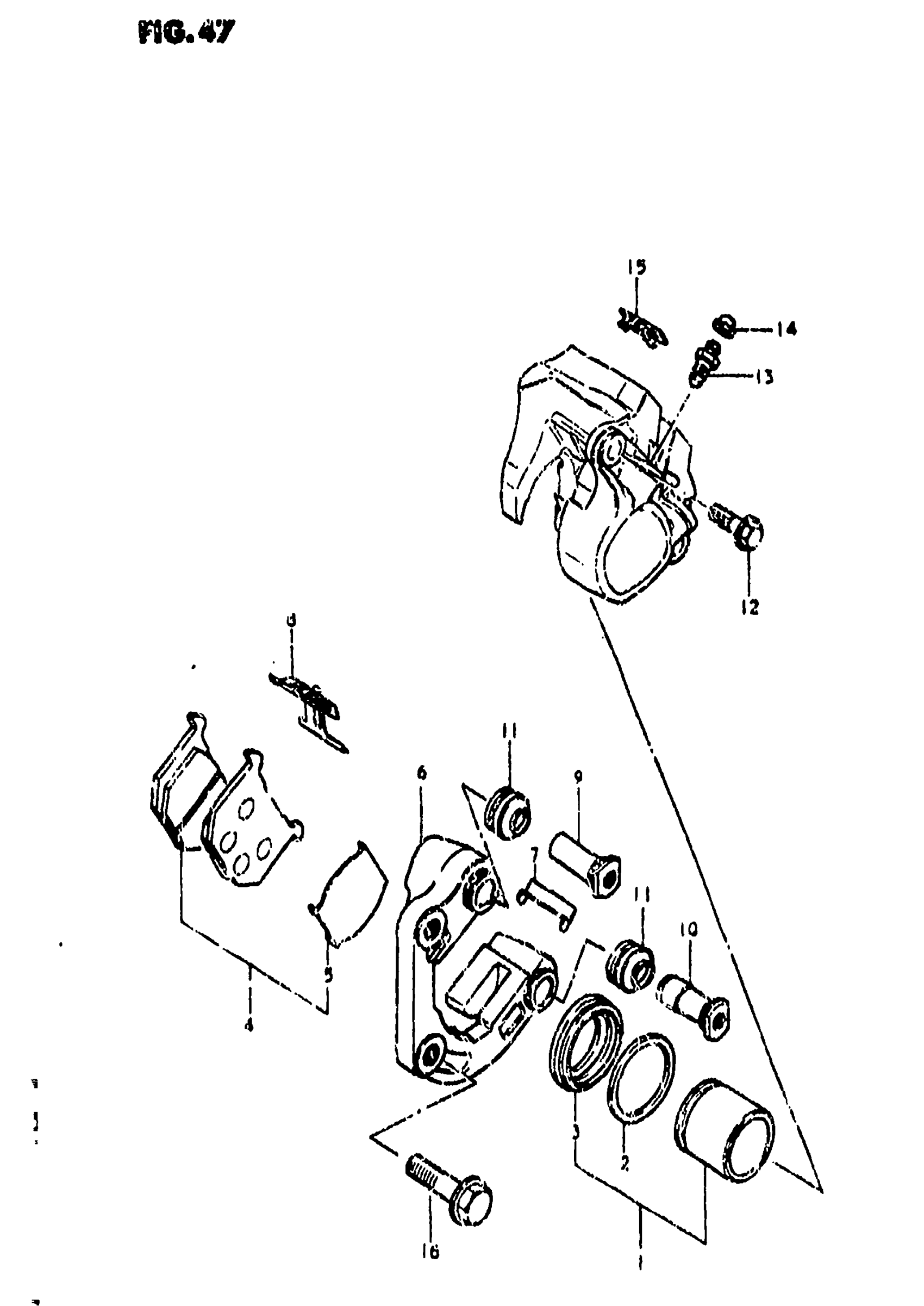

Suzuki GS850G (1981) FRONT CARIPERS Diagram

#

Description
Price

0

NO DESCRIPTION AVAILABLE This part replaces 59100-45200.

59100-45280

Unavailable

0

NO DESCRIPTION AVAILABLE | Includes Item(s) 1 - 15 This part replaces 59300-45200.

59300-45280

Unavailable

1

PISTON SET This part replaces 59301-45820.

59301-45822

$39.66

2

SEAL,PISTON This part replaces 59107-18410.

69107-05CF0

$9.07

3

BOOT, PISTON

59308-45200

$7.48

4

PAD SET This part replaces 59301-45810.

59302-45850-XNA

Unavailable

5

SHIM, PAD

59371-45200

Unavailable

6

NO DESCRIPTION AVAILABLE This part replaces 59100-45880.

59100-45882

Unavailable

6

HOLDER, CALIPERS LH This part replaces 59301-45840.

59301-45841

Unavailable

7

GUIDE, PAD This part replaces 59316-45200.

59316-45201

$5.15

8

SPRING, PAD

59315-45200

$12.32

9

AXLE, CALIPERS NO.1

59305-45200

Unavailable

10

AXLE, CALIPERS NO.2

59306-45200

Unavailable

11

BOOT, AXLE

59312-45200

$8.79

12

BOLT This part replaces 59314-45200.

59314-45201

$5.55

13

BLEEDER

59121-18410

$8.73

14

CAP, BLEEDER This part replaces 59122-18410.

55156-66310

$5.17

15

COVER This part replaces 59324-45200.

59324-45201

Unavailable

16

BOLT

09103-10019

$2.63
