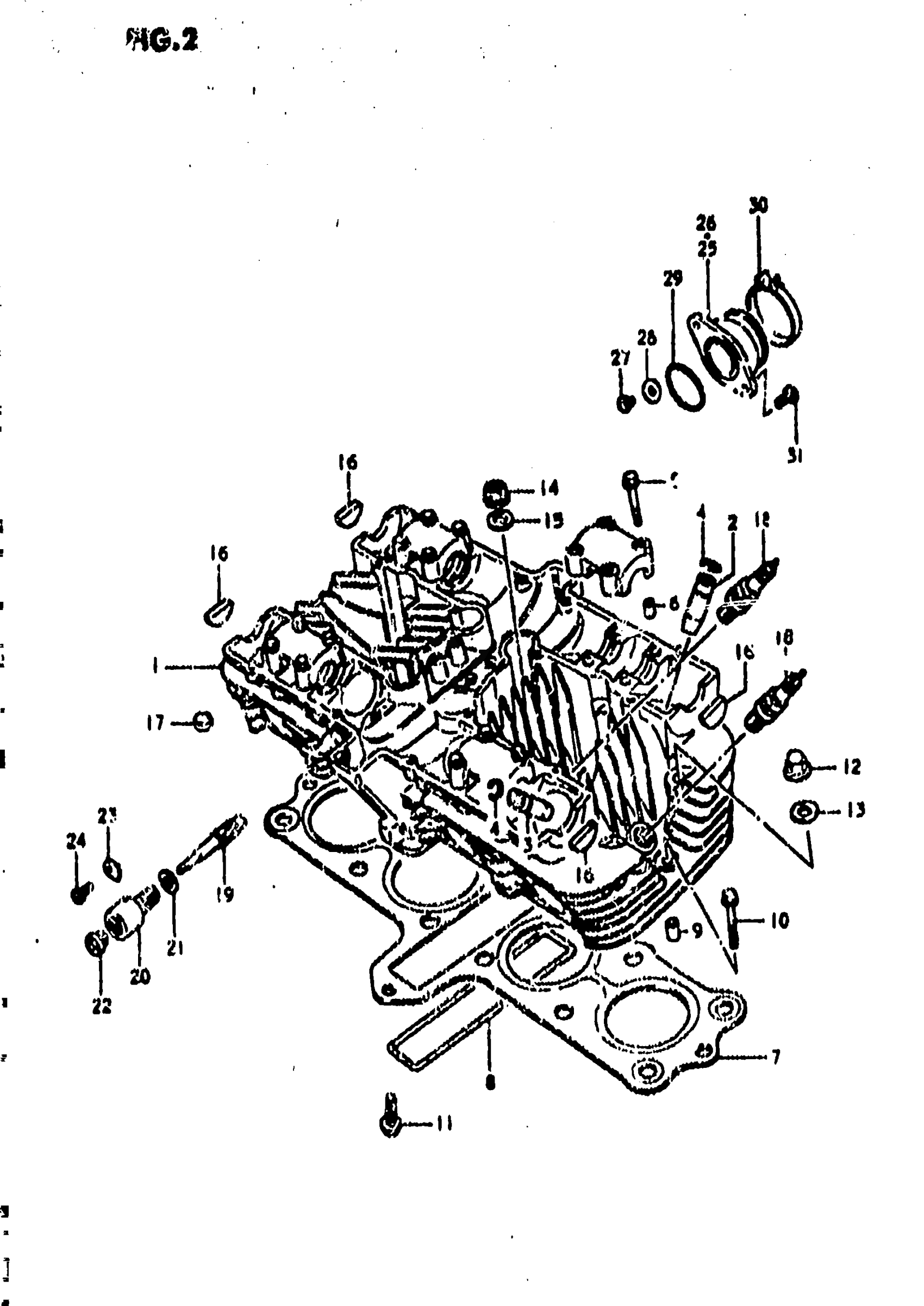

Suzuki GS850G (1981) CYLINDER HEAD Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 6 This part replaces 11100-45830.

11100-45871

Unavailable

2

GUIDE, INTAKE VALVE

11115-45740

$40.73

3

GUIDE, EXHAUST VALVE

11116-45740

Unavailable

4

RING, VALVE GUIDE

09381-10003

$2.47

5

BOLT (6X39)

09103-06026

$1.98

6

PIN

09206-08001

$1.78

7

GASKET This part replaces 11141-49002.

11141-49410

Unavailable

8

O RING

09280-99003

Unavailable

9

PIN

04211-11189

$1.78

10

BOLT (CHROME) This part replaces 01517-06458.

01550-06457

$2.69

11

BOLT This part replaces 01517-06308.

01550-06307

$2.69

12

NUT

09159-10026

$6.20

13

GASKET | MODEL T

09168-10017

$3.04

13

GASKET | MODEL X This part replaces 09168-10019.

09168-10017

$3.04

14

NUT, WHEEL SET This part replaces 08316-16108.

08316-10107

$2.39

15

WASHER

09160-10039

$2.26

16

PLUG, CYLINDER HEAD SIDE

09241-23002

$6.17

17

PAD, RUBBER This part replaces 11152-45000.

11152-38A00

$3.37

18

SPARK PLUG This part replaces 09482-00225.

09482-00091

$3.01

18

SPARK PLUG W24E This part replaces 09482-00196.

09482-00247-111

Unavailable

19

GEAR, TACHO. DRIVEN (NT:10) This part replaces 26431-45001.

26431-45002

$48.23

20

SLEEVE This part replaces 26441-45000.

26441-49000

$30.58

21

SEAL BAND

26451-45000

$5.05

22

OIL SEAL

09289-05002

$8.43

23

PLATE, GEAR SLEEVE

26449-33000

$4.35

24

SCREW

09128-05101

$1.49

25

PIPE,INTAKE,R This part replaces 13110-45100.

13110-45101

$33.01

26

PIPE,INTAKE,L This part replaces 13120-45100.

13120-45101

$38.82

27

BOLT, PICK UP & CLAMP This part replaces 09106-05006.

07130-0510B

$2.62

28

GASKET

09168-05010

$1.71

29

O RING This part replaces 09280-38003.

09280-38004

$2.92

30

CLAMP

09402-52306

$4.91

31

SCREW This part replaces 02112-06208.

02112-06207

$1.78
