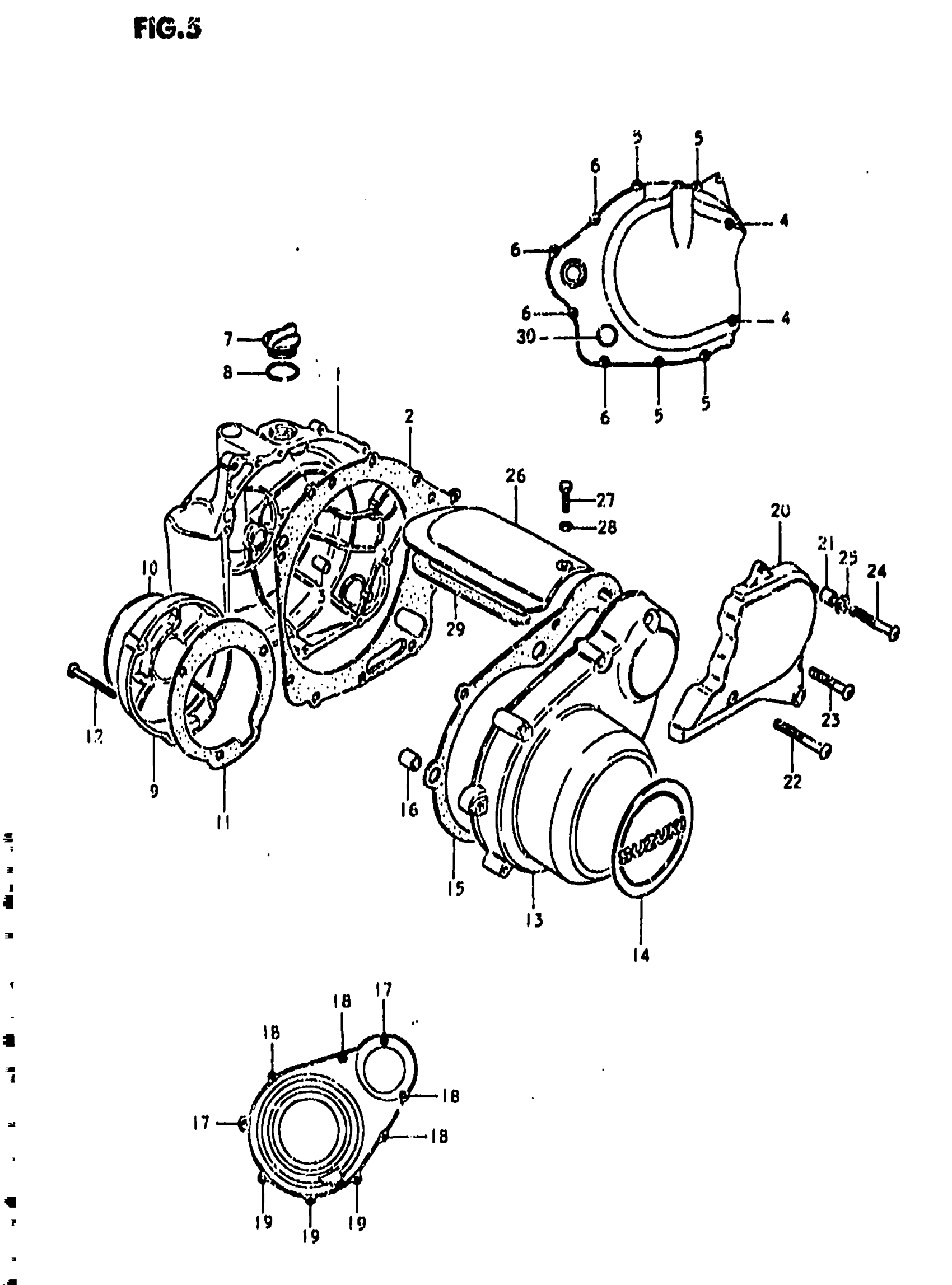

Suzuki GS850G (1981) CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CLUTCH | INC. 11971-45010

11340-45110

Unavailable

2

GASKET,CLUTCH This part replaces 11482-45100.

11482-45100-H17

Unavailable

3

PIN

04211-09120

Unavailable

4

SCREW This part replaces 02112-06658.

02112-06657

$2.62

5

SCREW This part replaces 02112-06258.

02112-06257

$1.78

6

SCREW This part replaces 02112-06208.

02112-06207

$1.78

7

CAP, OIL FILLER This part replaces 09259-30001.

09200-30810

$10.15

8

O RING

09280-32005

$1.99

9

COVER, CONTACT BREAKER This part replaces 11381-49001.

11381-49002

Unavailable

10

EMBLEM This part replaces 68235-45100.

68235-45200

Unavailable

11

GASKET

11491-45000

Unavailable

12

SCREW This part replaces 02112-05308.

02112-0530A

$2.05

13

COVER, GENERATOR This part replaces 11351-45000.

11351-45001

Unavailable

14

EMBLEM This part replaces 68233-45100.

68233-45200

$18.50

15

GASKET,MAG COVE This part replaces 11483-45000.

11483-45000-H17

$11.75

16

PIN This part replaces 09206-13001.

04211-13189

$2.19

17

SCREW (6X45) This part replaces 02112-06458.

02112-06457

$1.78

18

SCREW (6X40) This part replaces 02112-06408.

02112-06407

$1.78

19

SCREW This part replaces 02112-06358.

02112-06357

$1.78

20

COVER, SECONDARY DRIVE UNIT This part replaces 11360-45100.

11360-49101

Unavailable

21

PIN

04211-09129

$1.65

22

SCREW This part replaces 02112-06308.

02112-06307

$1.97

23

SCREW This part replaces 02112-06208.

02112-06207

$1.78

24

SCREW This part replaces 02112-06258.

02112-06257

$1.78

25

WASHER This part replaces 08322-21068.

08322-01067

$2.13

26

COVER, STARTER MOTOR

11382-49002

$46.38

27

BOLT This part replaces 01104-05108.

01500-0510B

$1.80

28

WASHER This part replaces 08322-21058.

08322-01057

$2.13

29

GASKET MOTOR CO This part replaces 11493-45001.

11493-45002

Unavailable

30

.LENS, OIL LEVEL CHECK

11971-45010

$16.76
