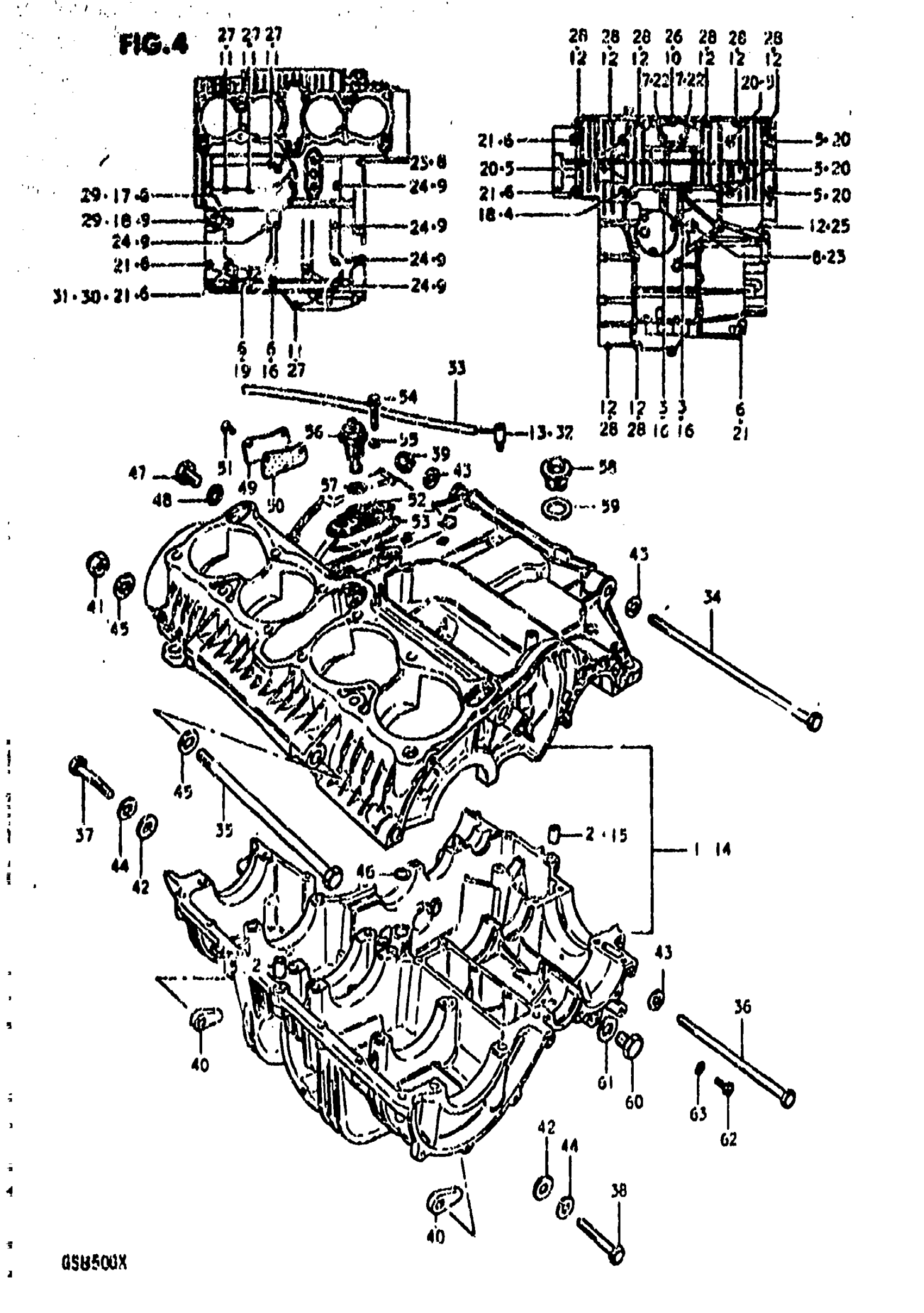

Suzuki GS850G (1981) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET | MODEL T; Includes Item(s) 2 - 13 This part replaces 11300-45821.

11300-45822

Unavailable

2

PIN This part replaces 09206-13001.

04211-13189

$2.19

3

BOLT (8X125) This part replaces 09103-08020.

09103-08106

Unavailable

4

BOLT (8X100) This part replaces 09103-08009.

09103-08070

$5.57

5

BOLT This part replaces 01517-08908.

01550-08907

$5.18

6

BOLT This part replaces 01517-08658.

01550-08657

$4.68

7

BOLT This part replaces 01517-08608.

01550-08607

$3.76

8

BOLT This part replaces 01517-06908.

01550-06907

$4.60

9

BOLT 6X75 This part replaces 01517-06758.

01550-06757

$3.68

10

BOLT (6X50) This part replaces 01517-06508.

01550-06507

$3.40

11

BOLT (CHROME) This part replaces 01517-06458.

01550-06457

$2.69

12

BOLT This part replaces 01517-06358.

01550-06357

$2.77

13

PLUG, BREATHER

24821-45100

$9.00

14

CRANKCASE SET | MODEL X; Includes Item(s) 15 - 32

11300-45822

Unavailable

15

PIN This part replaces 09206-13001.

04211-13189

$2.19

16

BOLT (8X125) This part replaces 09103-08020.

09103-08106

Unavailable

17

BOLT (8X110)

09103-08046

Unavailable

18

BOLT (8X100) This part replaces 09103-08009.

09103-08070

$5.57

19

BOLT (8X105) This part replaces 09103-08023.

09103-08097

$3.44

20

BOLT This part replaces 01517-08908.

01550-08907

$5.18

21

BOLT This part replaces 01517-08658.

01550-08657

$4.68

22

BOLT This part replaces 01517-08608.

01550-08607

$3.76

23

BOLT This part replaces 01517-06908.

01550-06907

$4.60

24

BOLT 6X75 This part replaces 01517-06758.

01550-06757

$3.68

25

BOLT This part replaces 01517-06558.

01550-06557

$3.30

26

BOLT (6X50) This part replaces 01517-06508.

01550-06507

$3.40

27

BOLT (CHROME) This part replaces 01517-06458.

01550-06457

$2.69

28

BOLT This part replaces 01517-06358.

01550-06357

$2.77

29

NUT This part replaces 08313-11088.

08313-10087

$2.28

30

NUT (CHROME) This part replaces 08316-16088.

08316-10087

$2.26

31

GASKET (8.2X14X1) This part replaces 09168-08008.

09168-08016

$1.65

32

PLUG, BEVEL GEAR BREATHER

24821-45100

$9.00

33

HOSE(2X5X600) This part replaces 09343-02016.

09352-20504-600

$6.70

34

NO DESCRIPTION AVAILABLE This part replaces 09100-10074.

09100-10074-XC0

Unavailable

35

SHAFT,RR SWNG P This part replaces 61211-39000.

61211-39002

$25.52

36

BOLT (10x165)

09100-10078

$12.70

37

BOLT This part replaces 01107-10608.

01500-1060A

$4.41

38

BOLT This part replaces 01107-10608.

01500-1060A

$4.41

39

NUT

09159-10011

$3.23

40

NUT

09159-10020

$5.18

41

NUT This part replaces 08319-21128.

08319-2112A

$3.76

42

WASHER

09160-10005

$1.87

43

WASHER This part replaces 08322-11108.

08322-01107

$2.15

44

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

45

WASHER This part replaces 08322-11128.

08322-01127

$1.84

46

O RING

09280-13001

$2.72

47

PLUG This part replaces 09247-14012.

09247-14026

$3.76

48

GASKET

09168-14004

$1.83

49

CAP, OIL GALLERY

11394-45000

Unavailable

50

GASKET,OIL GALL This part replaces 11497-45000.

11497-45000-H17

Unavailable

51

SCREW This part replaces 02122-06168.

02122-06167

$1.49

52

HOUSING, OIL PRESSURE SWITCH

16445-45000

Unavailable

53

O RING

16448-45000

$8.89

54

BOLT This part replaces 01517-08258.

01550-08257

$2.81

55

GASKET (5.8X13X1.2) This part replaces 09168-06009.

09168-06023

$2.35

56

SWITCH ASSY,OIL This part replaces 37820-45050.

37820-45061

$31.65

57

O RING

09280-19001

$1.49

58

PLUG This part replaces 09247-20002.

09248-20003

$5.80

59

GASKET 20.1X27X This part replaces 09168-20001.

09168-20003

$2.97

60

PLUG, OIL DRAIN This part replaces 09247-14014.

09247-14036

$6.17

61

GASKET

09168-14004

$1.83

62

SCREW (6X10) This part replaces 09128-06004.

09128-06044

$1.49

63

GASKET (5.8X13X1.2) This part replaces 09168-06009.

09168-06023

$2.35
