1979 Suzuki GS850G Wiring Harness Diagram

← All diagrams

Find the part on the Wiring Harness diagram for your 1979 Suzuki GS850G, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

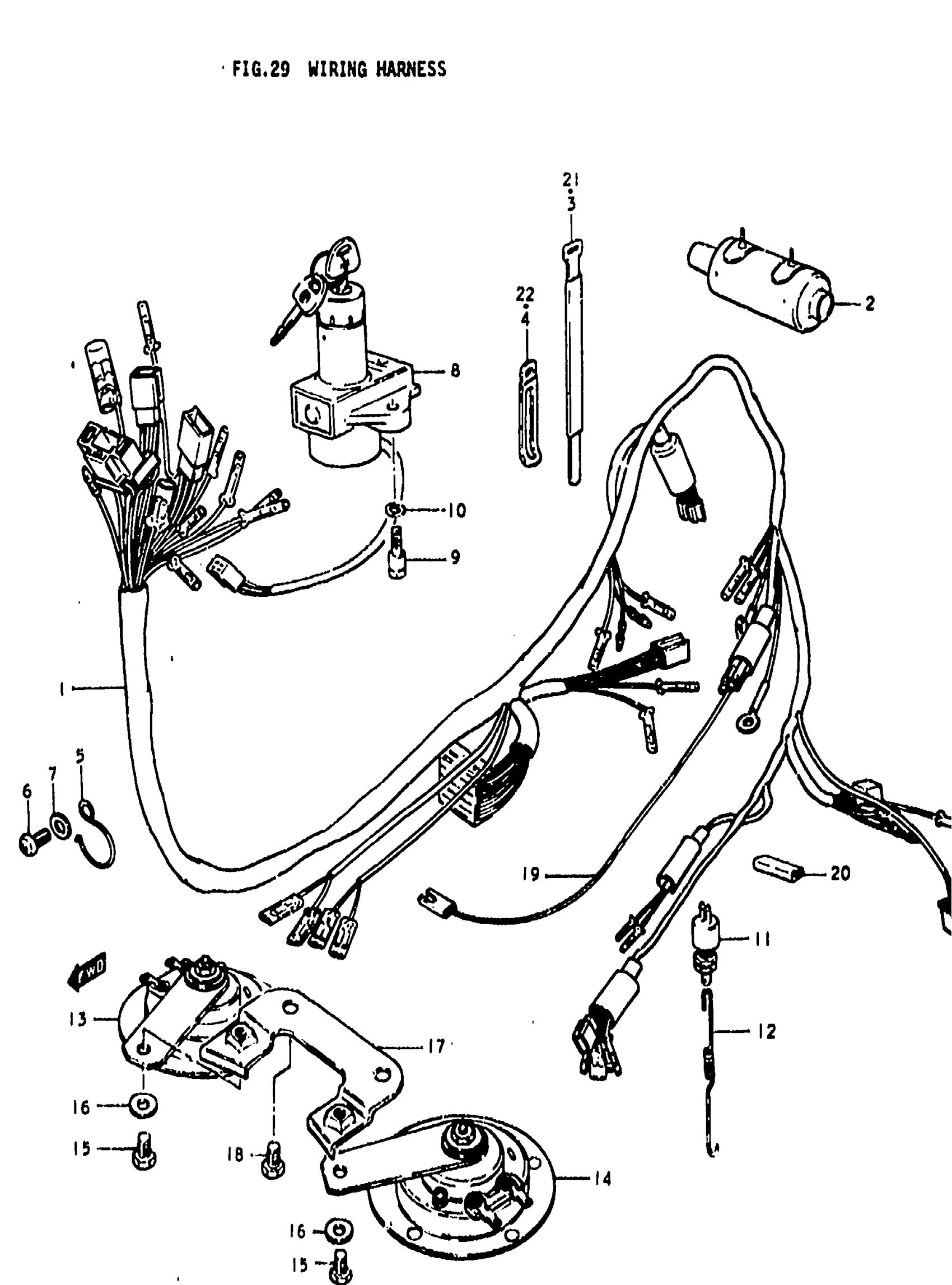

1979 Suzuki GS850G Wiring Harness Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE This part replaces 36610-45120.

36610-45110

1
Out of stock

2

BOOT, WIRING HARNESS

36618-30610

1

$9.68

In stock

3

5

$2.62

In stock

5

CLIP, WIRING HARNESS This part replaces 36619-44000.

36619-44002

1
Out of stock

6

SCREW This part replaces 02112-06128.

02112-06127

1
Out of stock

7

1

$1.84

In stock

8

NO DESCRIPTION AVAILABLE | Includes Item(s) 9 - 10 This part replaces 37100-45100.

37100-45101

1
Out of stock

9

BOLT This part replaces 37152-47010.

07130-0616B

2
Out of stock

10

2

$2.28

In stock

11

SWITCH, BRAKE LAMP

37610-53011

1

$31.54

In stock

12

SPRING This part replaces 09443-06018.

09443-06018-XC0

1
Out of stock

13

HORN ASSY This part replaces 38500-64130.

38502-49001

1
Out of stock

14

NO DESCRIPTION AVAILABLE This part replaces 38501-49000.

38501-47001

1
Out of stock

15

2

$2.68

In stock

16

WASHER This part replaces 08322-11088.

08322-01087

2
Out of stock

17

BRACKET, HORN

38590-45100

1
Out of stock

18

2

$2.85

In stock

19

LEAD WIRE, PRESSURE SWITCH This part replaces 36853-45000.

36853-45001

1
Out of stock

20

PROTECTOR, WIRING HARNESS

36611-38000

1
Out of stock

21

CLAMP | L:120

09407-12402

1
Out of stock

22

2

$1.89

In stock
