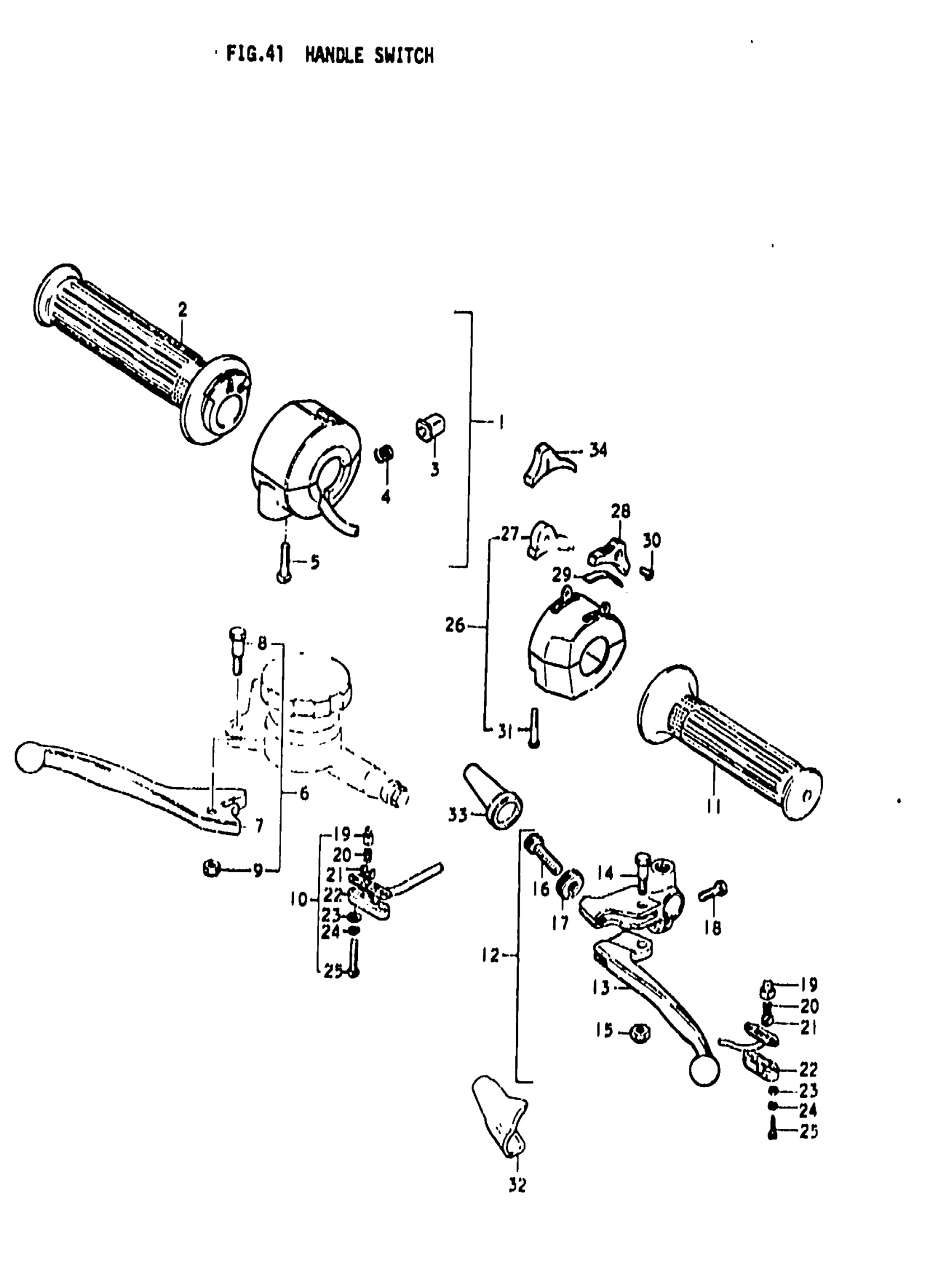

Suzuki GS850G (1979) HANDLE SWITCH Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 5 This part replaces 57100-49000.

57100-49040

Unavailable

2

THROTTLE GRIP This part replaces 57110-45600.

57110-34601

Unavailable

3

BUTTON, STARTING

57370-01311

Unavailable

4

SPRING

57382-01311

Unavailable

5

SCREW This part replaces 02112-05258.

02112-05257

$1.49

6

LEVER, BRAKE | Includes Item(s) 7 - 9 This part replaces 57300-11300.

57420-11300

Unavailable

7

LEVER, BRAKE

57420-11300

Unavailable

8

BOLT This part replaces 57431-18620.

57431-18621

$9.35

9

.NUT This part replaces 08319-21068.

08319-2106A

$1.89

10

SWITCH, BRAKE LAMP

57460-33700

$40.84

11

GRIP, LH This part replaces 57211-45010.

57211-49510

Unavailable

12

LEVER ASSY, CLUTCH | Includes Item(s) 13 - 25

57500-44000

Unavailable

13

LEVER, CLUTCH

57620-44000

$32.32

14

BOLT This part replaces 57431-11010.

57431-11013

$5.95

15

.NUT This part replaces 08319-21068.

08319-2106A

$1.89

16

ADJUSTER, CABLE

57441-11010

$5.14

17

NUT

57442-11010

$2.80

18

BOLT This part replaces 01107-06208.

01500-06207

$1.99

19

HOLDER This part replaces 57461-18600.

57465-18601

$3.97

20

HOLDER This part replaces 57462-18600.

57465-18601

$3.97

21

HOLDER This part replaces 57463-18600.

57465-18601

$3.97

22

COVER

57481-33010

$5.50

23

WASHER This part replaces 08322-21038.

08322-01037

$1.95

24

WASHER,LOCK This part replaces 08321-21038.

09162-03001

$1.18

25

SCREW This part replaces 09125-03105.

09125-03105-XC0

$2.08

26

SWITCH ASSY, HANDLE LH | Includes Item(s) 27 - 31 This part replaces 37400-49010.

37400-49011

Unavailable

27

KNOB, STOPPER

57718-36630

Unavailable

28

KNOB, DIMMER SWITCH

57713-34012

Unavailable

29

SPRING

57715-34012

Unavailable

30

SCREW This part replaces 02122-03068.

02122-03067

$1.81

31

SCREW,5X22 This part replaces 09125-05105.

09125-05105-XC0

$4.45

32

COVER, CLUTCH LEVER

57661-31000

$6.83

33

BOOT, CLUTCH CABLE This part replaces 58273-31000.

58273-31001

$2.40

34

KNOB, LIGHTING | OPT

37411-45012

$4.93
