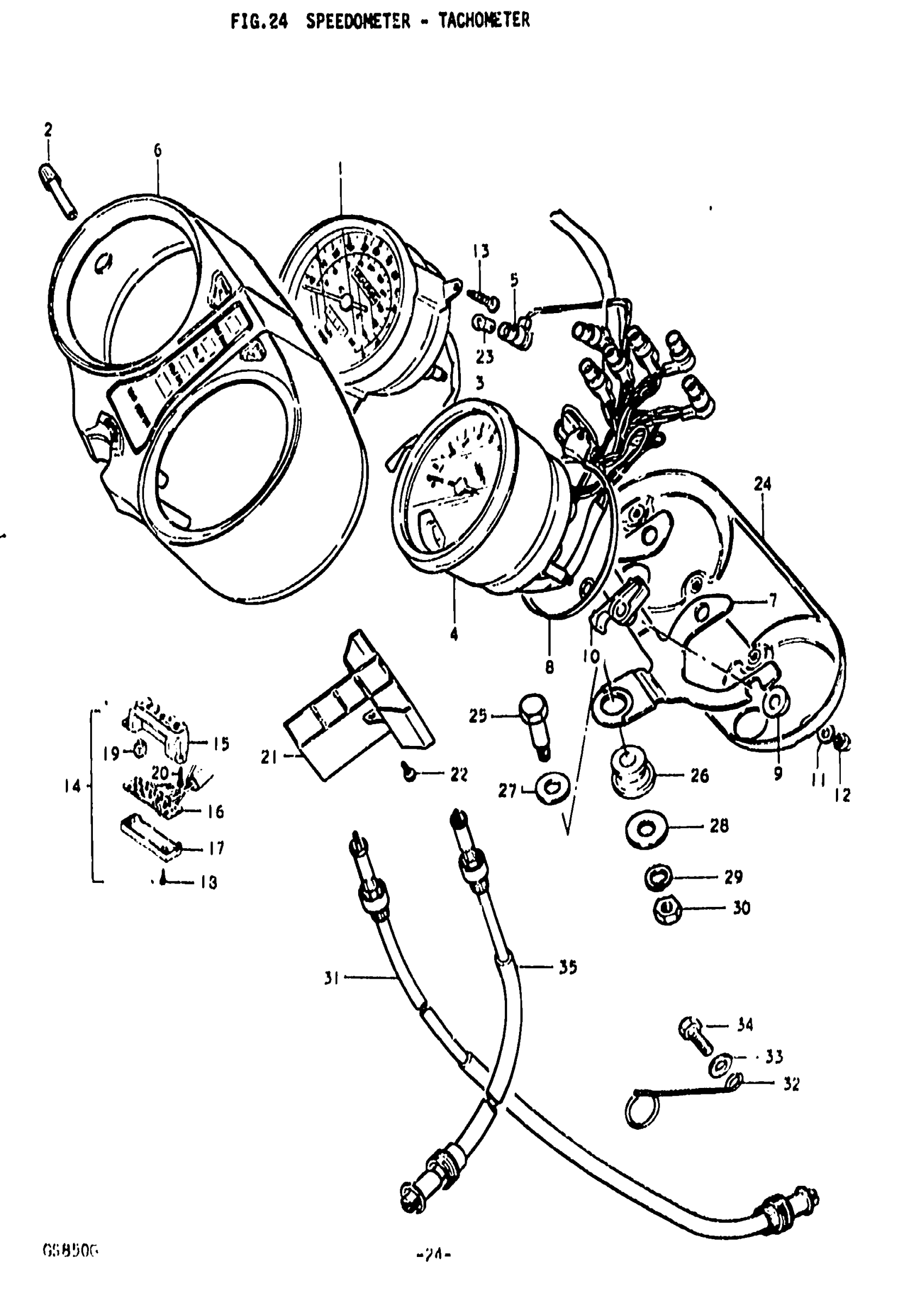

Suzuki GS850G (1979) SPEEDOMETER-TACHOMETER Diagram

#

Description
Price

0

NO DESCRIPTION AVAILABLE | Includes Item(s) 1 - 24 This part replaces 34100-45130.

34100-45134

Unavailable

1

NO DESCRIPTION AVAILABLE This part replaces 34110-45130.

34110-45132

Unavailable

2

KNOB

34980-45020

$3.77

3

LEAD WIRE

34860-45110

Unavailable

4

NO DESCRIPTION AVAILABLE This part replaces 34210-45130.

34210-45121

Unavailable

5

NO DESCRIPTION AVAILABLE This part replaces 34173-45100.

34173-45101

Unavailable

6

CASE, METER

34150-45100

Unavailable

7

BRACKET

34951-47020

Unavailable

8

BRACKET, TACHOMETER

34953-45020

Unavailable

9

CUSHION (A)

34956-45020

Unavailable

10

CUSHION (B)

34955-45020

Unavailable

11

WASHER This part replaces 34181-45100.

08322-01057

$2.13

12

NUT This part replaces 08313-11057.

08313-1005A

$1.93

13

NO DESCRIPTION AVAILABLE This part replaces 34183-45100.

03141-04253

Unavailable

14

INDICATOR, GEAR POSITION This part replaces 36450-45101.

36450-49401

Unavailable

15

CASE, INDICATOR

36452-45100

Unavailable

16

PIN BOARD

36453-45100

Unavailable

17

COVER, LOWER

36454-45100

Unavailable

18

NO DESCRIPTION AVAILABLE This part replaces 36456-45100.

03511-03146

Unavailable

19

BULB

09471-12071

$7.20

20

SCREW

36457-45100

Unavailable

21

CASE, PILOT BULB

36382-45100

Unavailable

22

SCREW This part replaces 36492-47020.

03211-0412A

$2.23

23

BULB | 12V, 3.4W

09471-12001

$1.65

24

PLATE, UNDER

34961-45021

Unavailable

25

BOLT

09111-08031

Unavailable

26

CUSHION This part replaces 34956-31000.

34956-31001

$4.37

27

WASHER This part replaces 08322-21108.

08322-01107

$2.15

28

WASHER, EXHAUST SUPPORT This part replaces 09160-08002.

09160-08135

$2.35

29

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

30

NUT This part replaces 08310-12088.

08310-00087

$2.13

31

CABLE ASSY,SPEE | L:940 This part replaces 34910-45110.

34910-45115

$26.55

32

CLAMP

34938-37000

$3.73

33

.WASHER This part replaces 08322-11068.

08322-0106B

$2.26

34

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97

35

CABLE,TACHOMETE | L:590 This part replaces 34940-49012.

34940-37312

$51.10
