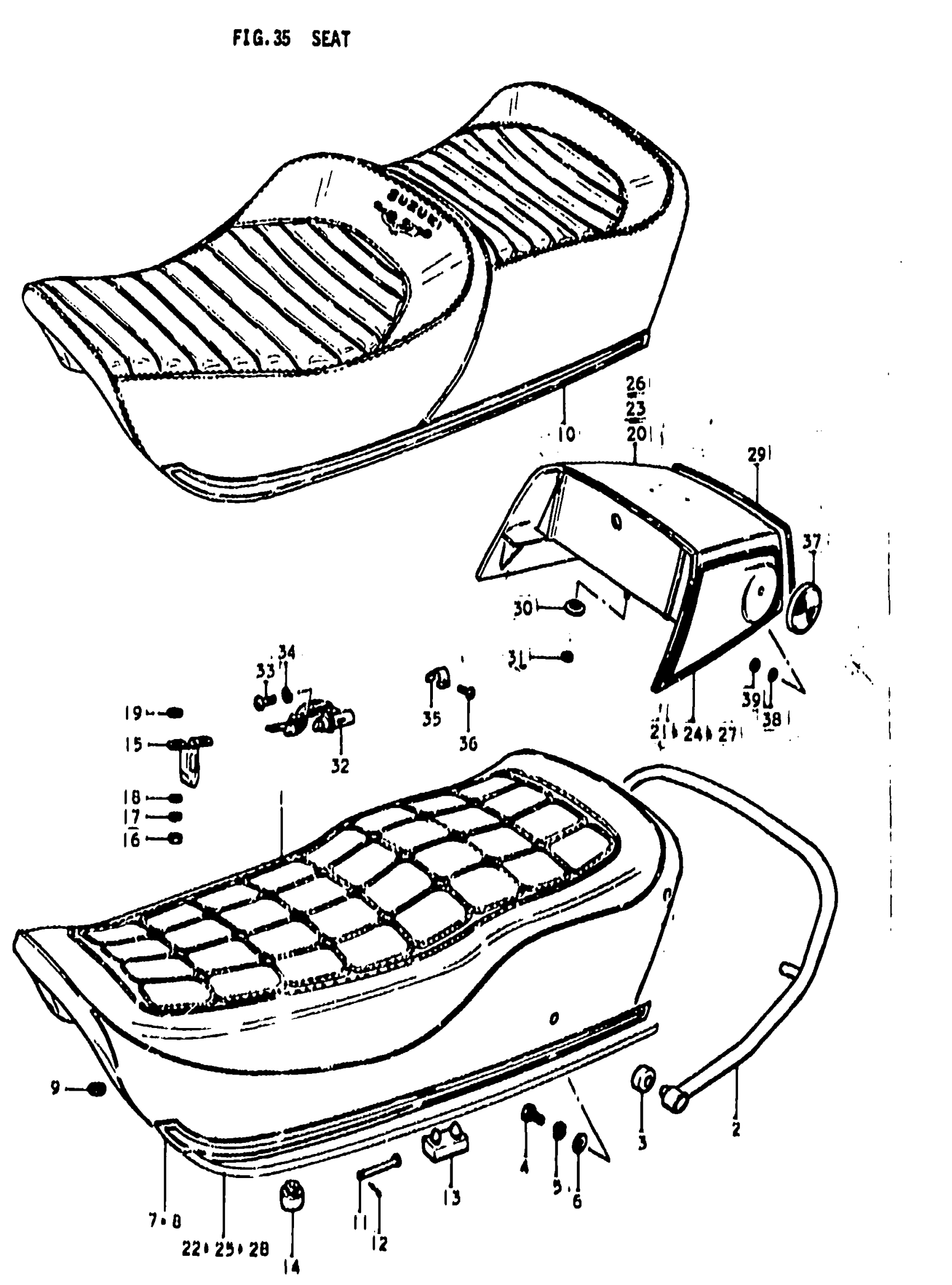

Suzuki GS850G (1979) SEAT Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 9 This part replaces 45100-45100-40P.

45100-45150-48G

Unavailable

2

HANDLE, PILLION RIDER This part replaces 46211-45100.

46210-45101

Unavailable

3

CUSHION

46212-49000

Unavailable

4

BOLT, REAR This part replaces 01107-08208.

01500-08207

$2.53

5

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

6

WASHER This part replaces 08322-11088.

08322-01087

$2.13

7

MOULDING, RH

45191-45100

Unavailable

8

MOULDING, LH

45192-45100

Unavailable

9

NUT

09148-04010

$2.20

10

SEAT | OPT

45100-45610-40N

Unavailable

11

PIN

09200-06018

$2.06

12

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

13

CUSHION

09321-08006

$2.90

14

CUSHION

09321-10001

$2.61

15

STRIKER, SEAT LOCK

45213-47000

Unavailable

16

.NUT This part replaces 08310-11068.

08310-00067

$2.13

17

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

18

WASHER This part replaces 08322-21068.

08322-01067

$2.13

19

WASHER (6.5X20X1.2) This part replaces 09160-06027.

09160-06077

$1.91

20

NO DESCRIPTION AVAILABLE This part replaces 45510-45100-05L.

45510-45101

Unavailable

21

TAIL COVER TAPE SET

68101-45870-68B

Unavailable

22

MOULDING TAPE SET

68101-45860-05L

Unavailable

23

NO DESCRIPTION AVAILABLE This part replaces 45510-45100-08E.

45510-45101

Unavailable

24

TAIL COVER TAPE SET

68101-45870-68A

Unavailable

25

MOULDING TAPE SET

68101-45860-019

Unavailable

26

COVER, SEAT TALL

45510-45100-08H

Unavailable

27

TAIL COVER TAPE SET

68101-45870-68C

Unavailable

28

MOULDING TAPE SET

68101-45860-08H

Unavailable

29

MOULDING, SEAT TALL COVER

45522-45100

Unavailable

30

WASHER

09169-06016

$1.65

31

.NUT This part replaces 08319-21068.

08319-2106A

$1.91

32

SEAT LOCK SET

95700-45813

Unavailable

33

SCREW This part replaces 02112-05128.

02112-05127

$1.97

34

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

35

SPRING, HELMET HOLDER

95722-45000

Unavailable

36

SCREW This part replaces 02112-05088.

02112-05087

$1.49

37

REFLEX REFLECTOR, REAR SIDE

35970-49030

Unavailable

38

WASHER This part replaces 08322-21058.

08322-01057

$2.13

39

NUT This part replaces 08310-11058.

08310-00057

$1.84
