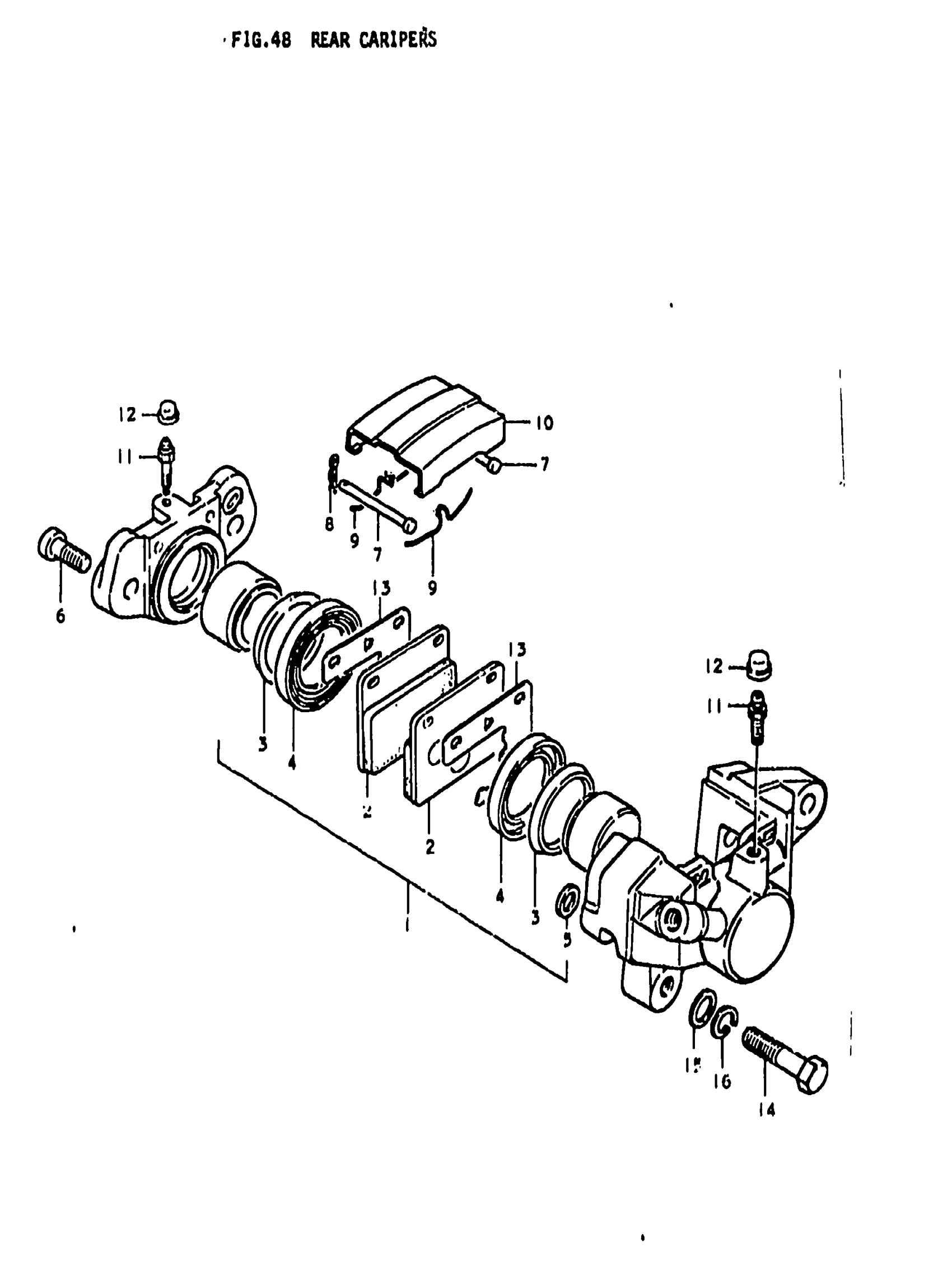

Suzuki GS850G (1979) REAR CARIPERS Diagram

#

Description
Price

0

CALIPER ASSY, R | Includes Item(s) 1 - 13 This part replaces 69100-45100.

69100-08C00-999

Unavailable

1

PISTON & PAD SET

69100-45840

Unavailable

2

PAD SET This part replaces 69130-45100.

69101-45850-XNA

Unavailable

3

SEAL,PISTON This part replaces 59107-18410.

69107-05CF0

$9.07

4

BOOT, PISTON

69108-45000

$8.50

5

SEAL, PISTON

69107-45000

$8.07

6

BOLT, HOUSING

69145-45000

Unavailable

7

PIN

69141-45000

$5.17

8

.CLIP, PAD PIN

69142-45000

$4.34

9

SPRING

69143-45001

$6.73

10

DUST COVER

69151-45000

$14.31

11

BLEEDER

59121-18410

$8.73

12

CAP, BLEEDER This part replaces 59122-18410.

55156-66310

$5.17

13

SHIM

69152-45001

$7.54

14

BOLT, LOWER | 10x34 This part replaces 09100-10107.

09117-10017

$3.27

15

WASHER This part replaces 08322-21108.

08322-01107

$2.15

16

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84
